MaxLinear Voltage Regulator 15V SOT-223 4-Pin Surface Mount 5mA Quiescent Current SPX1117M3-L-3-3/TR

Free Delivery in India | Lowest Global Shipping Charges

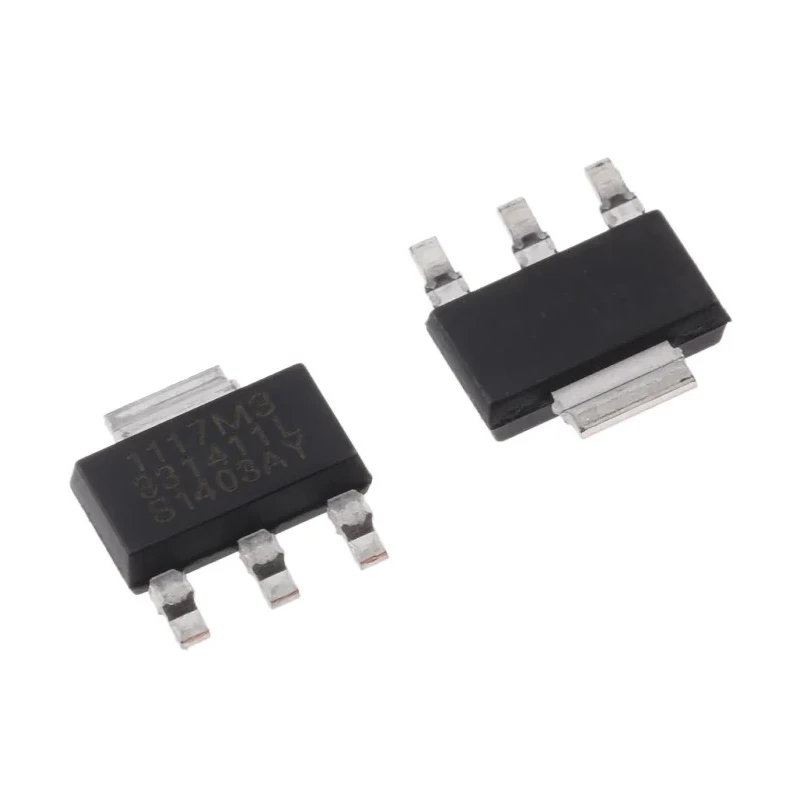

MaxLinear Voltage Regulator 15V SOT-223 4-Pin Surface Mount 5mA Quiescent Current SPX1117M3-L-3-3/TR

Name: MaxLinear Voltage Regulator 15V SOT-223 4-Pin Surface Mount 5mA Quiescent Current SPX1117M3-L-3-3/TR
Brand: MaxLinear
SKU: 183681
Price: 0.22 USD
Availability: InStock



Category Voltage Regulator IC Brand MaxLinear Condition New

Specifications

Country of Origin	India
Voltage	Regulators MaxLinear SPX1117M3-L-3-3/TR, Voltage Regulator 15V SOT-223 4-Pin RS
Brand	MaxLinear
Height	1.6mm
Length	6.5mm
Model	SPX1117M3-L-3-3/TR
Width	3.5mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	SOT-223
Polarity	Positive
Maximum Input Voltage	15V
Quiescent Current	5mA
Minimum Input Voltage	2.6V
Pin Count	4

Key Features

Operates with a minimum input voltage of 2.6V and maximum input voltage of 15V.
Designed for positive polarity applications with low noise and high power supply rejection ratio.
Maximum operating temperature rating of 125°C ensuring reliability under harsh conditions.
Low quiescent current of 5mA supports energy-efficient designs.
4-pin design allows easy PCB integration and connectivity.
Non-automotive specification with no specific industry standards or approvals.
Ideal for a variety of electronic and industrial power management applications.

Product Description

MaxLinear SPX1117M3-L-3-3/TR is a high-performance low dropout (LDO) linear voltage regulator designed to provide a stable 15V output voltage suitable for power management in various electronic circuits.

This device is housed in a SOT-223 4-pin surface mount package that features compact physical dimensions of 6.5mm (length) x 3.5mm (width) x 1.6mm (height), enabling streamlined PCB layouts.

The regulator supports a minimum input voltage of 2.6V and can handle a maximum input voltage of up to 15V, making it adaptable to a wide input range. It features a positive voltage polarity and a low quiescent current consumption of 5mA, ensuring energy-efficient operation with quick transient response and low noise.

With a maximum operating temperature tolerance of 125°C, the SPX1117M3-L-3-3/TR offers robust performance in demanding industrial and commercial environments.

This voltage regulator does not carry specific automotive certifications or special approvals but is well suited for applications in industrial machinery, electronic equipment, power supply units, communication devices, and embedded systems.

Operates with a minimum input voltage of 2.6V and maximum input voltage of 15V. Designed for positive polarity applications with low noise and high power supply rejection ratio. Compact SOT-223 4-pin surface mount package.

Low quiescent current of 5mA supports energy-efficient circuit designs. Maximum operating temperature rating of 125°C for reliability. Dimensions: 6.5mm length, 3.5mm width, 1.6mm height. Ideal for industrial and electronic power management applications.

No automotive standards or extra approvals.

This product is commonly used in industrial electronics, power management circuits, and embedded systems requiring stable and reliable voltage regulation. Explore more power management ICs and voltage regulators in the MaxLinear category at EnvMart.
