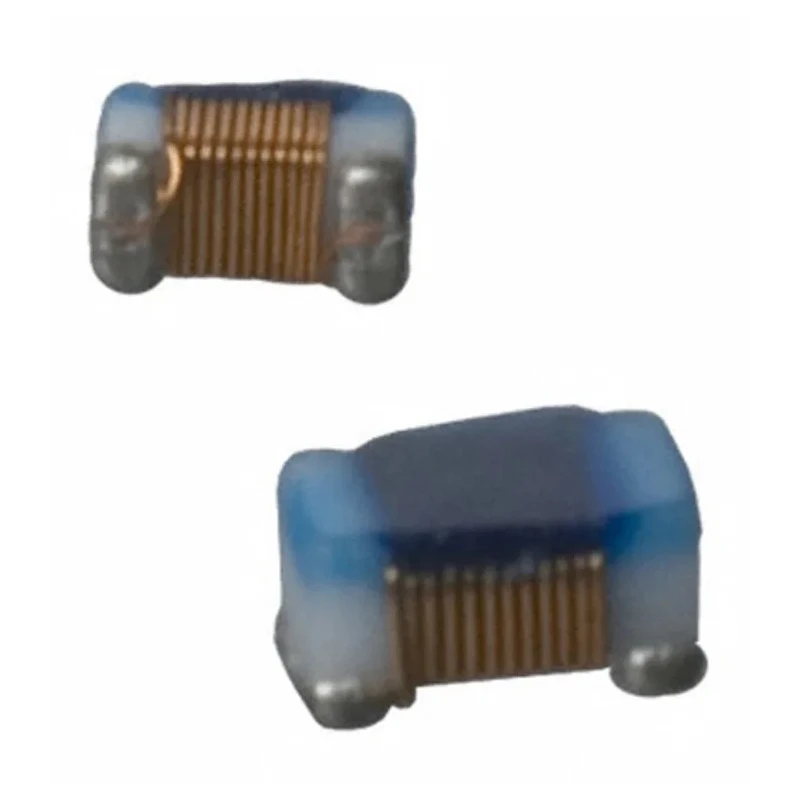

Murata Unshielded Wirewound Surface Mount Inductor 1608 Package, Ferrite Core, 0.33 μH ±5% Tolerance, 630 mA LQW18CNR33J00D

Murata LQW18CNR33J00D unshielded wirewound surface mount inductor from the LQW18CN series features a ferrite core that ensures a high quality factor and excellent attenuation within the pass band of RF filters. This 1608 size SMD inductor provides an inductance of 0.33 μH with a tolerance of ±5% and supports a maximum DC current of 630 mA, making it suitable for moderate power circuits.

With low DC resistance of 250 mΩ and a maximum self-resonant frequency of 600 MHz, this inductor is ideal for applications including choke circuits and antenna matching to maintain transmission and reception sensitivity. Its maximum operating temperature is rated at 85°C, which supports stable operation in various industrial and commercial electronic environments.

The component is RoHS compliant and designed with wirewound construction and solder termination style. Molded for mechanical protection, it comes in a 1608 package with dimensions 1.6 mm (length) by 0.8 mm (height and depth). The two-pin connection facilitates straightforward mounting using standard solder processes on PCBs.

Compact 1608 footprint fits high-density PCB layouts. Ferrite core material enhances inductance precision and reliability. Low DC resistance reduces energy losses and heat generation. High Q factor improves filter performance in RF applications.

Surface mount packaging with paper tape enables automated placement and efficient production. Suitable for industrial, telecommunications, consumer electronics, and automotive antenna matching circuits. Maintains electrical performance over a broad temperature range (-40°C to 85°C).

Widely used in manufacturing for improved signal integrity and power efficiency. Explore more Surface Mount Inductors and electronic components on EnvMart for your sophisticated circuit design and manufacturing needs.
