Murata Wirewound Surface Mount Inductor 1005 Package 0.039 μH ±5 % 250 mA DC Current 3.0 GHz Self Resonant LQW15AN39NJ00D

Free Delivery in India | Lowest Global Shipping Charges

Murata Wirewound Surface Mount Inductor 1005 Package 0.039 μH ±5 % 250 mA DC Current 3.0 GHz Self Resonant LQW15AN39NJ00D

Name: Murata Wirewound Surface Mount Inductor 1005 Package 0.039 μH ±5 % 250 mA DC Current 3.0 GHz Self Resonant LQW15AN39NJ00D
Brand: Murata
SKU: 183312
Price: 0.08 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.5mm
Length	1mm
Model	LQW15AN39NJ00D
Depth	0.5mm
Packaging	Paper Tape
Series	LQW
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Non-Magnetic Core
Inductance	0.039μH
Standards/Approvals	RoHS
Package/Case	1005
Maximum DC Current	250mA
Pin Count	2
Maximum DC Resistance	700mΩ
Inductance Tolerance	±5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	3.0GHz
Minimum Quality Factor	25
Inductor Construction	Wirewound

Key Features

1005 package size with 1 mm length and 0.5 mm height and depth dimensions.
Non-magnetic core construction for stable inductance characteristics.
Maximum operating temperature of 125°C and minimum of -55°C.
Low DC resistance of 700 mΩ resulting in efficient performance.
High quality factor of 25 at resonance with a maximum self-resonant frequency of 3.0 GHz.
Surface mount termination style for easy PCB assembly.
Complies with RoHS standards for environmental safety.
Supplied in paper tape packaging suitable for automated insertion.

Product Description

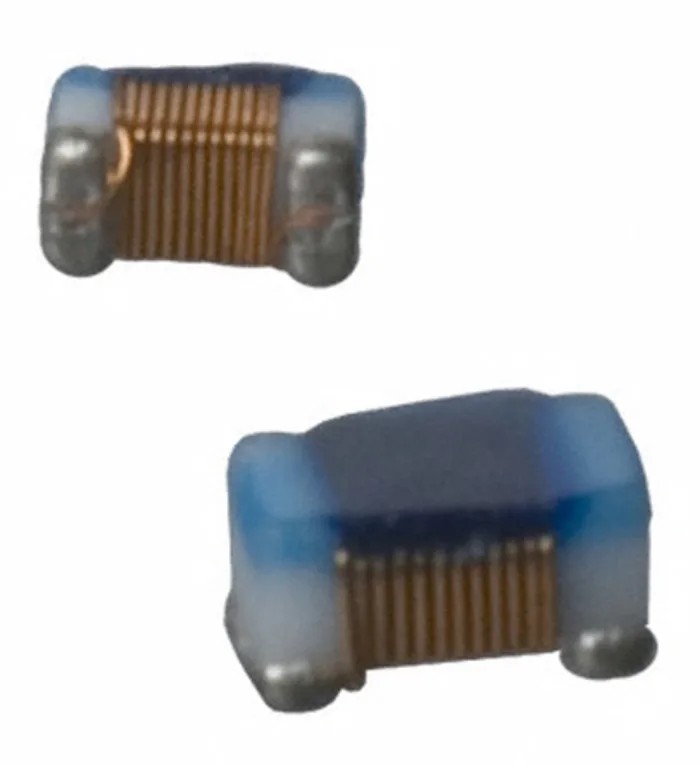

Murata LQW15AN39NJ00D is a wirewound surface mount inductor designed in a compact 1005 package measuring 1 mm in length and 0.5 mm in height and depth. This inductor offers an inductance of 0.039 μH with a tight tolerance of ±5 % and supports a maximum DC current of 250 mA, making it suitable for power filtering and RF applications.

The inductor features a non-magnetic core to ensure stable magnetic characteristics and low hysteresis losses, which is critical for maintaining signal integrity in high-frequency circuits. It boasts a low DC resistance of 700 mΩ that helps to minimize power losses and improve overall efficiency.

Designed to operate reliably within a temperature range of -55°C to 125°C, the Murata LQW series inductors are molded to enhance durability and performance consistency. The maximum self-resonant frequency of 3.0 GHz and a minimum quality factor of 25 make it ideal for antenna matching, RF choke circuits, and other high-frequency applications.

This surface mount inductor is terminated with surface mount style leads and supplied in paper tape packaging, allowing compatibility with automated pick-and-place machinery to support high-volume PCB assembly processes. The product complies with RoHS environmental standards and is manufactured in Japan according to strict quality guidelines.

1005 package size for compact PCB designs. Wirewound construction for high Q and current handling. Non-magnetic core ensuring minimal loss and stable inductance. Low DC resistance reducing energy waste. High self-resonant frequency supporting RF applications.

Wide operating temperature range enabling versatile use cases. RoHS compliant for safe and environmentally friendly use. Paper tape packaging improves manufacturing efficiency.

Murata products are renowned for reliability and performance in industrial, telecommunications, automotive, and electronic consumer devices. This model LQW15AN39NJ00D is commonly used in circuits requiring precise inductance, low loss, and high current capacity. Explore more Surface Mount Inductors and related electronic components at EnvMart for advanced manufacturing and system design needs.
