Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Bead 1000 Ohm Impedance at 100 MHz BLM21AG102SH1D

Free Delivery in India | Lowest Global Shipping Charges

Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Bead 1000 Ohm Impedance at 100 MHz BLM21AG102SH1D

Name: Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Bead 1000 Ohm Impedance at 100 MHz BLM21AG102SH1D
Brand: Murata
SKU: 182989
Price: 0.06 USD
Availability: InStock



Category Ferrite Bead Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Material	Ferrite
Height	0.85mm
Length	2mm
Model	BLM21AG102SH1D
Depth	1.25mm
Mount Type	Surface
Current Rating	500mA
Series	BLM21A
Maximum Operating Temperature	125°C
Package Type	0805
Sub Type	Chip Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	REACH, RoHS
Maximum DC Resistance	0.28Ω
Impedance at 100 MHz	1000Ω
Automotive Standard	AEC-Q200

Key Features

Compact 0805 package with dimensions 2 mm length, 0.85 mm height, and 1.25 mm depth.
High impedance of 1000 Ω at 100 MHz ensures effective noise reduction.
Surface mount design suitable for PCB assembly enhancing manufacturing efficiency.
Supports current rating up to 500 mA with a maximum DC resistance of 0.28 Ω.
Operates reliably over wide temperature range from -55°C to 125°C.
Constructed from ferrite material providing excellent magnetic suppression properties.
Complies with REACH and RoHS standards for environmental safety.
Certified to automotive standard AEC-Q200 for high reliability in automotive applications.

Product Description

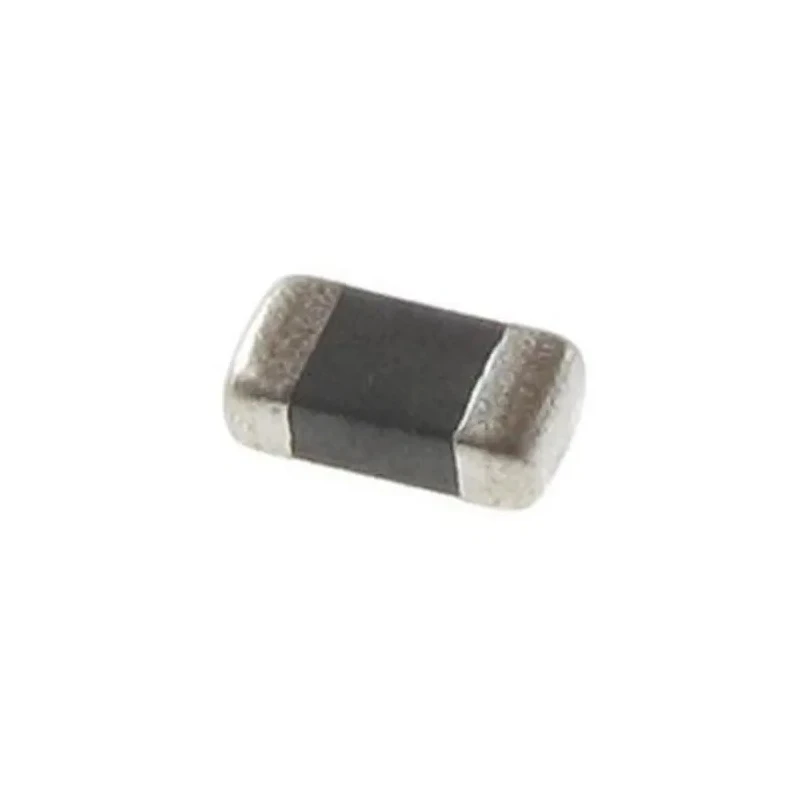

Murata BLM21AG102SH1D is a compact ferrite bead designed with a surface mount 0805 chip package, measuring 2 mm in length, 0.85 mm in height, and 1.25 mm in depth. It features a high impedance of 1000 Ω at 100 MHz, ideal for electromagnetic interference (EMI) suppression in electronic circuits used in industrial, automotive, and powertrain applications.

This ferrite bead supports a DC current rating of 500 mA and exhibits a maximum DC resistance of only 0.28 Ω, ensuring minimal signal loss. Its operating temperature range of -55°C to 125°C guarantees stable performance under harsh environmental and thermal conditions.

Manufactured with a ferrite material body, the BLM21AG102SH1D offers excellent magnetic noise absorption, making it suitable for safety and power management circuits. Its nickel barrier external electrode enhances solder heat resistance ensuring durability during PCB assembly.

The product is compliant with REACH and RoHS environmental directives, and meets the automotive industry standard AEC-Q200, certifying it for high reliability in automotive electronic systems.

This ferrite bead is commonly used in EMI filters and protection in electronic components for automotive electronics, power supplies, and industrial control systems to reduce electromagnetic noise and enhance signal integrity.

Compact 0805 surface mount package for versatile PCB integration. High impedance of 1000 Ω at 100 MHz for effective EMI suppression. Wide operating temperature range from -55°C to 125°C. Compliant with RoHS, REACH, and automotive AEC-Q200 standards.

Durable nickel barrier external electrodes for solder heat resistance. Constructed with ferrite material for optimal noise absorption. Supports currents up to 500 mA with minimal DC resistance.

Choose this Murata ferrite bead for reliable EMI noise reduction in demanding industrial, automotive, and electronic applications. Explore our full range of Ferrite Beads in the Electronics Components category at EnvMart.
