Vishay 1600 V 70 A Diode Switching 2-Pin DO-203AB VS-70HF160

Free Delivery in India | Lowest Global Shipping Charges

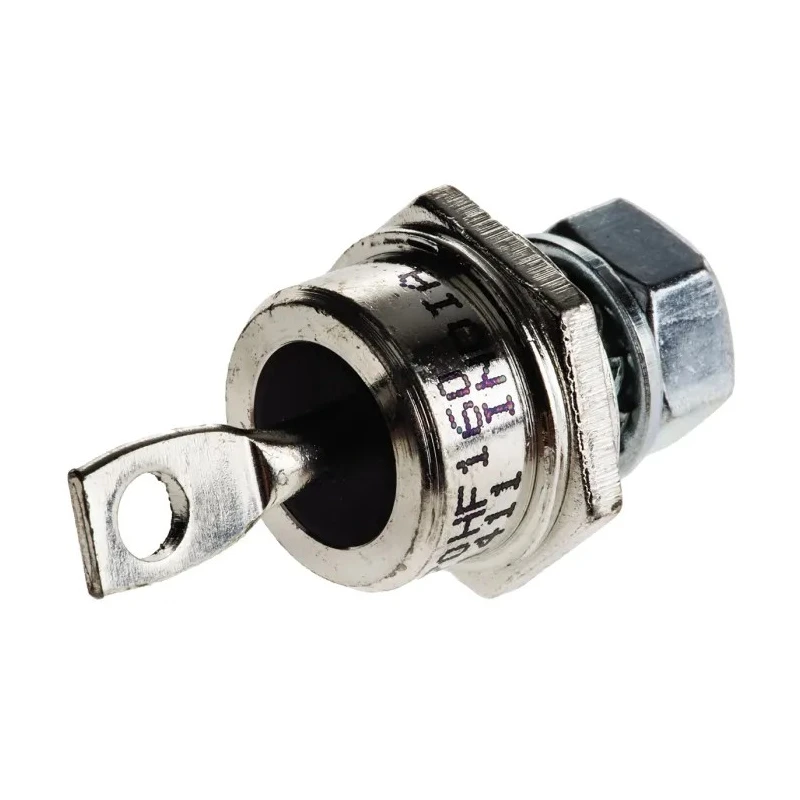

Vishay 1600 V 70 A Diode Switching 2-Pin DO-203AB VS-70HF160

Name: Vishay 1600 V 70 A Diode Switching 2-Pin DO-203AB VS-70HF160
Brand: Vishay
SKU: 182937
Price: 10.45 USD
Availability: InStock



Category Semiconductor Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	17.4mm
Brand	Vishay
Height	22.9mm
Length	20.02mm
Model	VS-70HF160
Width	17.35mm
Mount Type	Screw
Series	VS-70HF
Maximum Operating Temperature	150°C
Package Type	DO-203AB
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	70A
Peak Reverse Repetitive Voltage Vrrm	1600V
Diode Configuration	Stud Cathode
Rectifier Type	Switching
Peak Reverse Current Ir	4.5mA
Peak Non-Repetitive Forward Surge Current Ifsm	1.3kA
Maximum Forward Voltage Vf	1.46V
Vishay 1400 V 70 A Diode Switching 2-Pin DO-203ABBrand	Vishay

Key Features

Maximum continuous forward current of 70 A ensures high-load handling capability.
Peak reverse repetitive voltage of 1600 V protects circuits from voltage spikes.
Stud cathode diode configuration offers reliable mounting and connectivity.
Package type DO-203AB provides solid mechanical stability and heat dissipation.
Operating temperature range from -65°C to 150°C enables use in harsh environments.
Low maximum forward voltage of 1.46 V enhances efficiency and reduces power loss.
Peak non-repetitive forward surge current rated at 1.3 kA for transient performance.
Compact dimensions with length 20.02 mm and diameter 17.4 mm facilitate PCB integration.

Product Description

Vishay VS-70HF160 Diode Switching 2-Pin DO-203AB is a robust standard recovery diode optimized for switching applications in electronic circuits requiring a maximum continuous forward current of 70 Amps and a peak reverse repetitive voltage of 1600 Volts. The diode features a screw mount type and compact DO-203AB package allowing stable mechanical mounting and thermal dissipation in power electronics assemblies.

With a stud cathode configuration, this diode is engineered for reliability and high surge current tolerance up to 1.3 kiloamps peak, making it suitable for industrial electronics, power conversion, rectification, and voltage regulation tasks.

The diode operates efficiently with a low forward voltage of 1.46 Volts minimizing energy losses while supporting temperature ranges from -65°C to 150°C for operation in demanding environments such as industrial automation, power supply units, and HVAC controls.

Key physical dimensions include a length of 20.02 mm, width of 17.35 mm, height of 22.9 mm, and a diameter of 17.4 mm, allowing integration into a wide range of electronic assemblies.

Maximum continuous forward current of 70 A for heavy load conditions. Peak reverse repetitive voltage rating of 1600 V for high voltage circuit protection. Stud cathode diode configuration for reliable electrical connection and mounting.

DO-203AB package type ensuring robust mechanical and thermal performance. Wide operating temperature range from -65°C to 150°C for industrial applications. Low maximum forward voltage of 1.46 V providing high efficiency.

High peak non-repetitive forward surge current of 1.3 kA for transient protection. Compact physical dimensions suitable for various electronic designs.

This diode is ideal for use in electronic components, power and connectors sectors, serving applications in laboratory equipment, construction electronics, industrial automation, and other commercial electronic manufacturing requiring reliable high-current switching diodes.

Explore a wide selection of Vishay semiconductor components and related power electronics at EnvMart to power your next project with quality and trusted industrial grade components.

Explore more products in our Semiconductor Diode category.
