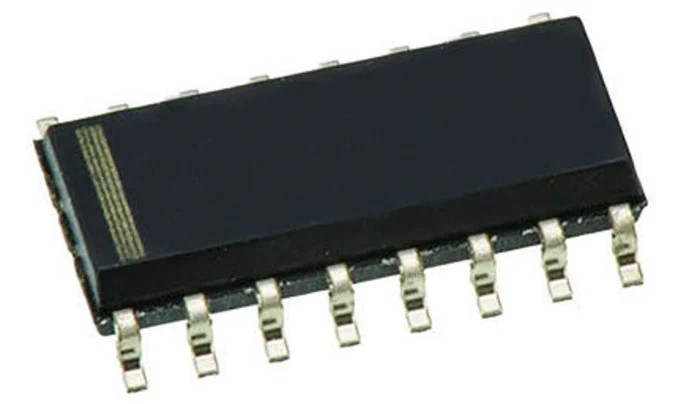

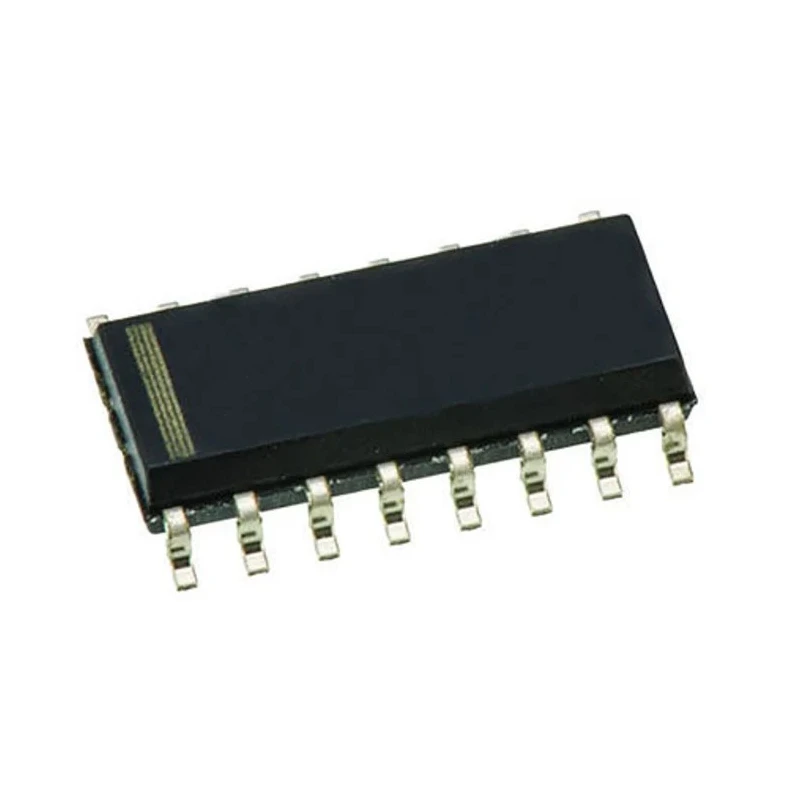

Nexperia 2 Flip Flop IC HC, Edge Triggered, Monostable Multivibrator, 16-Pin SOIC 74HC123D,652

Nexperia 74HC123D,652 is a high-speed Si-gate CMOS dual 2 flip flop IC in the HC logic family. It is designed as a dual retriggerable monostable multivibrator with edge triggered input and comes in a 16-pin SOIC surface mount package with dimensions of 10mm length and 1.45mm height.

This IC operates with a minimum supply voltage of 2 volts and a maximum of 6 volts, capable of functioning reliably in temperature environments from -40°C up to 125°C. The maximum propagation delay time at capacitive load is 65 nanoseconds, enabling precise timing control.

The device features a pulse width control via external resistor and capacitor selection, and retriggering capabilities allow extending output pulse width as needed, making it ideal for timing delays in industrial control circuits, telecommunications, and other electronic systems requiring monostable multivibrators.

The Nexperia 74HC123D,652 implements low power CMOS technology for efficient operation combined with a simple control interface and separate reset inputs for dual device operation within one chip.

This IC is suited for applications requiring stable timing delays and pulse generation. Its compact 16-pin SOIC surface mount package allows for space-saving PCB layouts in electronics manufacturing and assembly. Typical industrial use cases include control circuit timing, pulse generation, and signal conditioning in manufacturing, telecommunications, and automated systems.

Manufactured in Thailand, it meets strict quality and reliability standards ensuring performance consistency. The device does not carry automotive or other specialized standards but is widely used in general electronics and embedded systems.
