Crydom Crydom Series Solid State Relay, 5 A Load Current, PCB Mount, 530 V AC Load, 15 V DC Control CX380D5

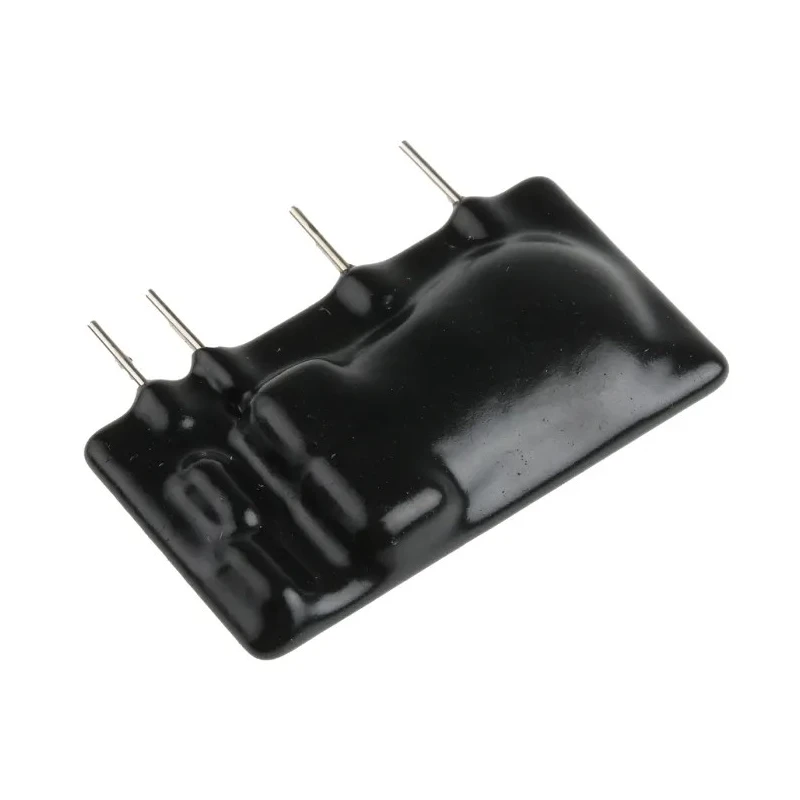

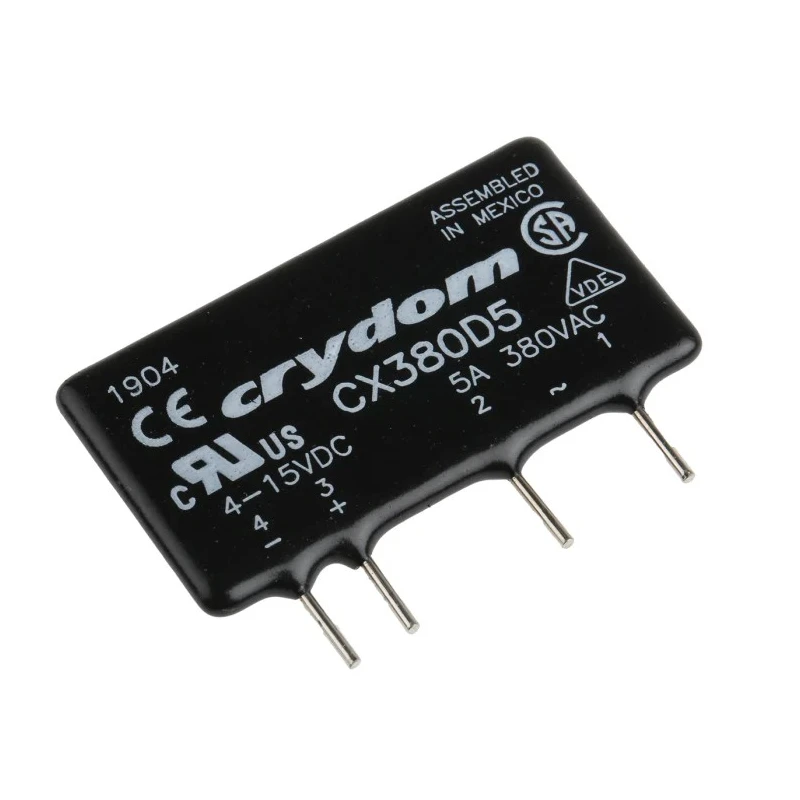

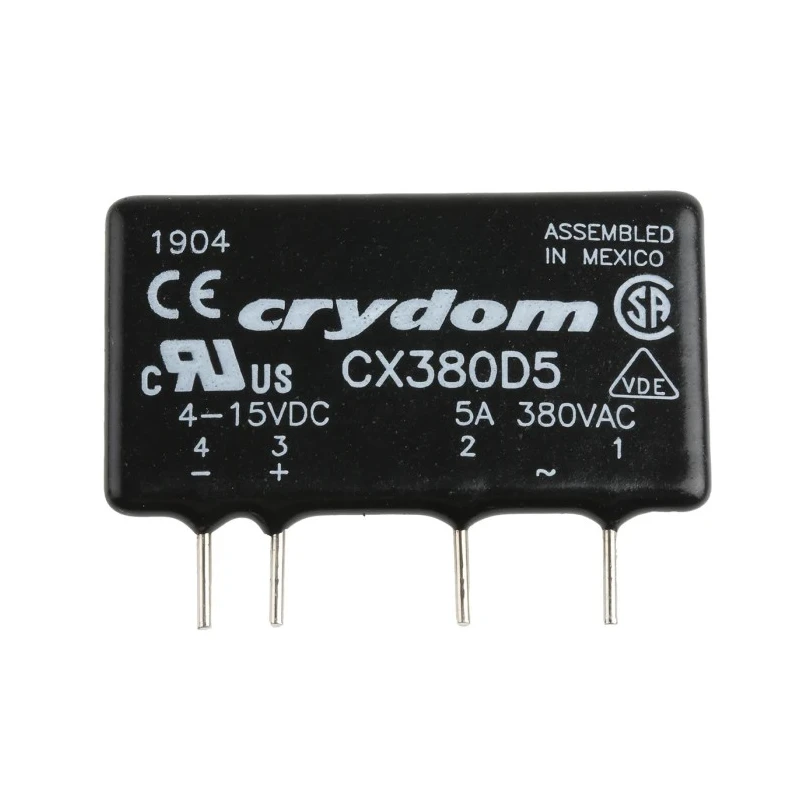

Crydom CX380D5 is a solid state relay engineered for industrial and electronic applications requiring reliable control of electrical loads with no moving parts, enhancing durability and longevity. It supports a maximum load current of 5 A and is suitable for PCB mounting, ensuring a secure and vibration-resistant connection. The relay can handle load voltages up to 530 V AC, making it ideal for medium-power equipment.

Controlled with DC voltages between 4 V and 15 V, the relay incorporates zero-cross switching technology that activates the load circuit when the AC voltage crosses zero, significantly reducing electrical noise and stress on components.

The device’s construction features a thermally conductive epoxy encapsulation to dissipate heat effectively, maintaining operational stability under harsh conditions. Operating temperatures span from -30°C to +80°C, allowing use in diverse industrial settings including HVAC systems, manufacturing machinery, and medical equipment.

This solid state relay weighs approximately 11 grams, limiting physical load on printed circuit boards. Its high dielectric strength of 4000 Vrms ensures safe insulation against voltage spikes, enhancing reliability and safety in complex electrical environments.

Compliance with international standards such as CSA, CE, and RoHS guarantees the product meets stringent safety and environmental regulations.

Key technical specifications include 25.4 mm height, 43.1 mm length, and 7.6 mm width dimensions, with an off-state leakage current of 0.1 mArms and an input/output capacitance of 10 pF for minimal interference. The output switching element is an SCR, suitable for various control applications.

Operates with a wide AC voltage range of 48 V to 530 V for versatility. Zero-cross switching functionality reduces electrical interference during load activation. Epoxy encapsulation enhances heat dissipation and durability.

Lightweight design minimizes stress on PCB layouts. Suitable for industrial automation, HVAC, medical devices, and manufacturing controls. Meets CSA, CE, and RoHS compliance standards. Compact dimensions enable easy integration into circuit designs.

Offers robust insulation with 4000 Vrms dielectric strength.

Explore the range of Crydom Solid State Relays on EnvMart for high quality and dependable industrial electronic components suitable for precision control in demanding environments.
