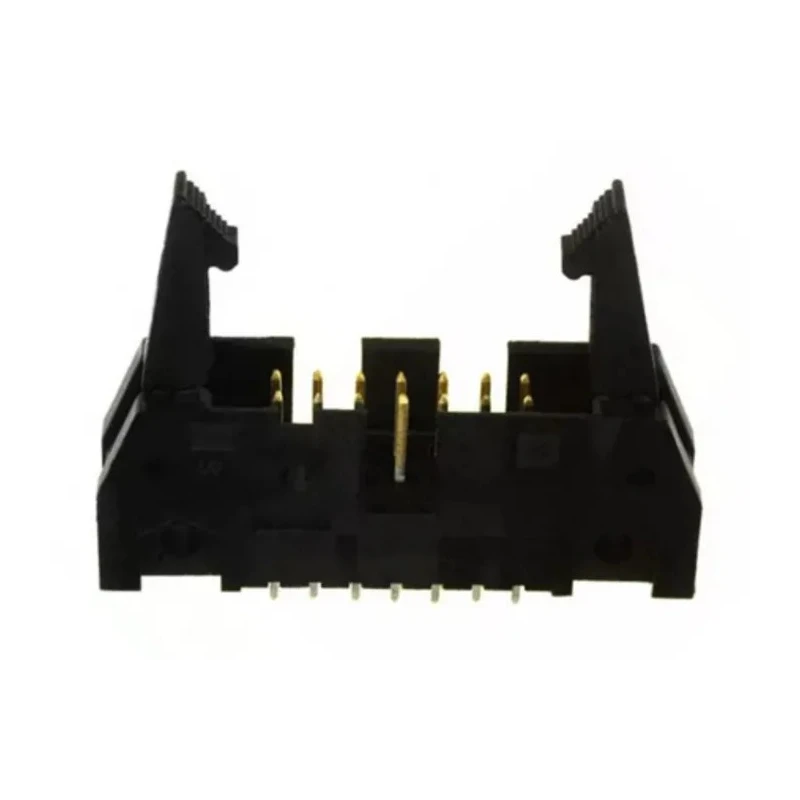

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 14 Contacts, 2 Row, 2.54 mm Pitch, 250V AC 5499922-2
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- The header is designed with a 2.54 mm pitch to ensure compatibility with standard PCB layouts.
- It supports a maximum current rating of 1A and operating voltage of 250V.
- The connector has a straight orientation and is shrouded for enhanced protection and reliable mating.
- Manufactured with thermoplastic housing and gold-plated brass contacts for durability and corrosion resistance.
- Operating temperature range spans from -65°C to 105°C, suitable for varied environmental conditions.
- Tail pins length is 2.79 mm, terminated via soldering, providing secure electrical connections.
- Ejector latches ensure secure mating with IDC ribbon cable connectors and easy disconnect.
- Ideal for applications in PCs, business equipment, medical devices, industrial controls, and electrical testing.
Product Description
TE Connectivity 5499922-2 AMP-LATCH Series Straight Through Hole PCB Header is engineered for reliable wire-to-board connections in demanding electronic applications. This 14-contact, 2-row header features a 2.54 mm pitch and shrouded housing, enhancing connection integrity and protection during use.
Made with high-quality thermoplastic housing and gold-plated brass contacts, this header ensures excellent conductivity and resistance to corrosion. Its straight orientation and through-hole mount type facilitate straightforward PCB assembly.
Designed to operate reliably within a wide temperature range from -65°C to 105°C, the AMP-LATCH header is suitable for industrial, medical, commercial, and networking equipment environments. The tail pin length of 2.79 mm is optimized for robust solder termination.
The unique AMP-LATCH ejection features enable secure mating and easy removal of IDC ribbon cable connectors. Available in varieties featuring long or short latches, this header accommodates different strain relief requirements.
This component is an ideal solution for electronics manufacturers requiring durable and precise PCB connectors for business computers, storage systems, electrical testing equipment, and more.
The header is designed with a 2.54 mm pitch to ensure compatibility with standard PCB layouts. It supports a maximum current rating of 1A and operating voltage of 250V. The connector has a straight orientation and is shrouded for enhanced protection and reliable mating.
Manufactured with thermoplastic housing and gold-plated brass contacts for durability and corrosion resistance. Operating temperature range spans from -65°C to 105°C, suitable for varied environmental conditions. Tail pins length is 2.79 mm, terminated via soldering, providing secure electrical connections.
Ejector latches ensure secure mating with IDC ribbon cable connectors and easy disconnect. Ideal for applications in PCs, business equipment, medical devices, industrial controls, and electrical testing. Explore more TE Connectivity products and PCB connectors at EnvMart for reliable solutions in electronics manufacturing and assembly.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 1A.
This model supports an operating voltage of 250V.
The contacts in this header are designed with a pitch of 2.54 mm.
The tail pin length is 2.79 mm, optimized for solder termination.
It is manufactured with thermoplastic housing and gold-plated brass contacts for enhanced conductivity and corrosion resistance.
The operating temperature range spans from -65°C to 105°C, making it suitable for various environmental conditions.
This header features 14 contacts arranged in 2 rows.
This connector is shrouded, which enhances connection integrity and protection.
It supports through-hole mounting, facilitating straightforward PCB assembly.
The termination type for this connector is solder, providing secure electrical connections.
It is ideal for applications in PCs, business equipment, medical devices, industrial controls, and electrical testing.
The connector system is designed for wire-to-board connections.
