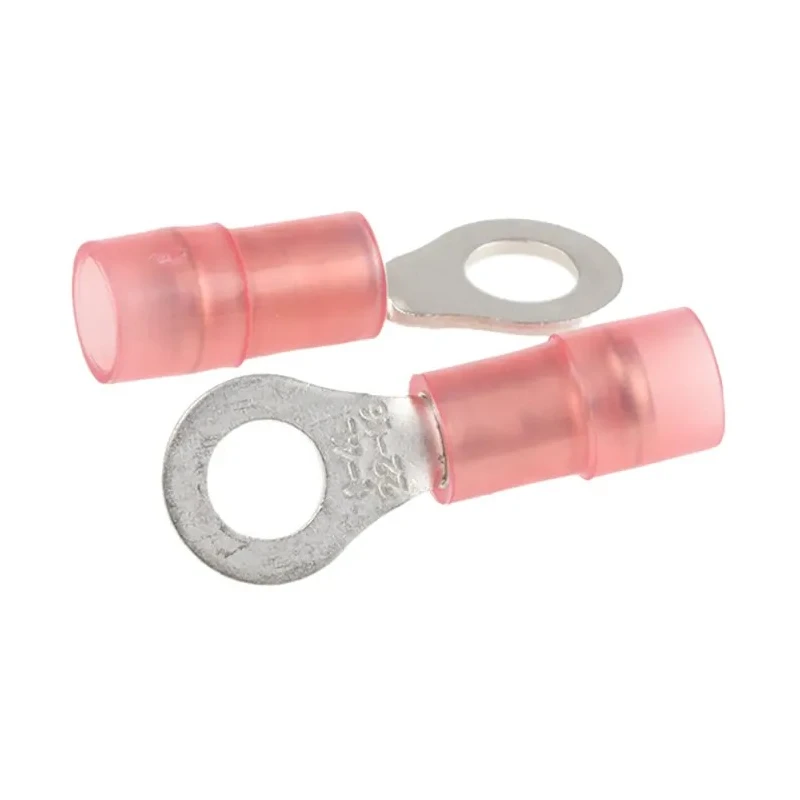

RS PRO Insulated Nylon Ring Terminal, M4 Stud Size, 22 AWG to 16 AWG Wire, Red, 21.8mm Length 267-3622

Name: RS PRO Insulated Nylon Ring Terminal, M4 Stud Size, 22 AWG to 16 AWG Wire, Red, 21.8mm Length 267-3622
Brand: RS PRO
SKU: 180395
Price: 0.12 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
THICKNESS	0.75mm
Model	267-3622
Insulation	Insulated
Overall Length	21.8mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Per Unit, RS stock no	267-3622
RS stock no	270-7632
Outer Ring Diameter	8mm
Inner Ring Diameter	4.3mm
Stud Size	M4
RS PRO Insulated Ring Terminal, M4 Stud Size 22 AWG 16 AWG Wire Size, RedBrand	RS PRO

Key Features

The terminal features a durable red nylon insulation for electrical protection and easy identification.
Copper contact material with tin plating ensures high conductivity and resistance to corrosion.
Double crimp design with an internal copper sleeve provides robust crimp connections and protects against wire stress.
Compact overall length of 21.8mm suitable for tight wiring environments.
Designed to withstand operating temperatures from -40°C up to 105°C for high durability.
Suitable for heavy-duty industrial, automotive, communication, and power supply wiring setups.
Color-coded insulation simplifies the process of selecting the correct terminal size.
Flared insulation design allows for easy wire insertion and secure crimping.

Product Description

RS PRO 267-3622 insulated nylon ring terminal is designed for secure and effective electrical connections using 22 AWG to 16 AWG wires. Featuring a red nylon insulation, the terminal provides excellent electrical insulation while assisting with quick size identification during wiring tasks.

The ring terminal is built with a highly conductive copper body and double crimp design including an internal copper sleeve to strengthen crimp joints and protect against high vibration and wire fatigue. The tin plating on contact surfaces enhances corrosion resistance and electrical conductivity, extending the terminal's service life in industrial environments.

Measuring 21.8mm in overall length and with an 8mm outer ring diameter and 4.3mm inner ring diameter, this terminal fits M4 studs precisely. It is suitable for a broad range of applications including industrial control systems, automotive wiring, communication equipment, power supplies, and domestic appliances. The terminal can operate in temperatures ranging from -40°C to 105°C, making it reliable for harsh environments.

The insulated ring terminal comes from the RS PRO series, ensuring high manufacturing standards and durability. It is made in Taiwan, Province Of China, and offers consistent performance for demanding electrical connection requirements.

The copper body and tin plating provide excellent conductivity and corrosion resistance. Double crimp and internal sleeve design ensure strong mechanical and electrical crimp joints. Nylon insulation offers protection against abrasion and electrical shock.

Red color coding aids quick size identification and reduces wiring errors. High operating temperature range supports use in industrial and automotive environments. Designed for reliable connections to M4 studs with precise inner diameter.

Compact size allows use in limited space wiring arrangements.

Choose RS PRO insulated Ring Terminals for robust, reliable, and safe electrical wire connections across various industrial, automotive, and commercial applications. Browse the full RS PRO range on EnvMart to find compatible wire terminals and connectors.
