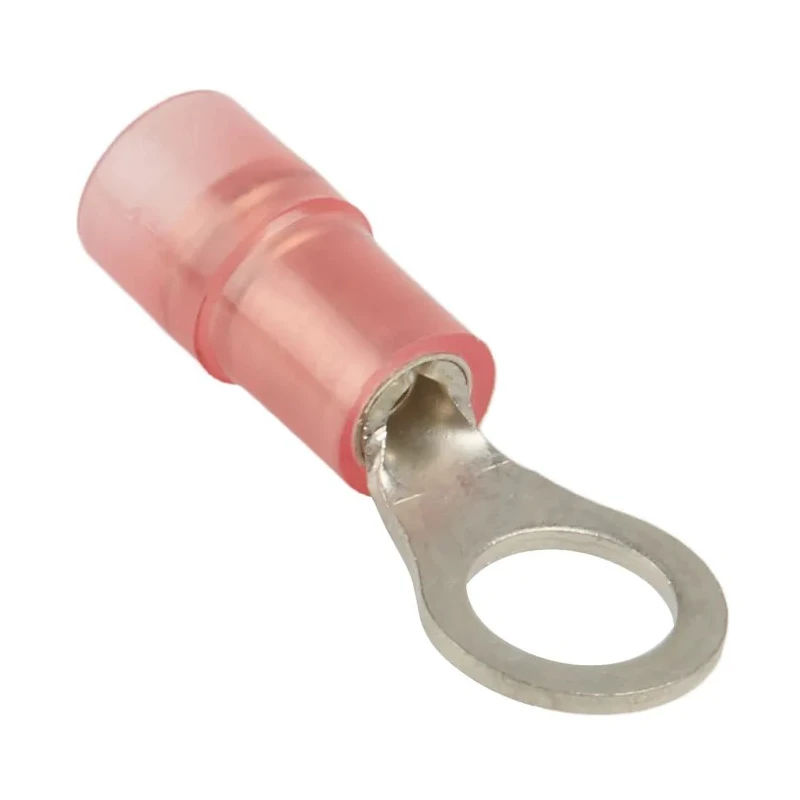

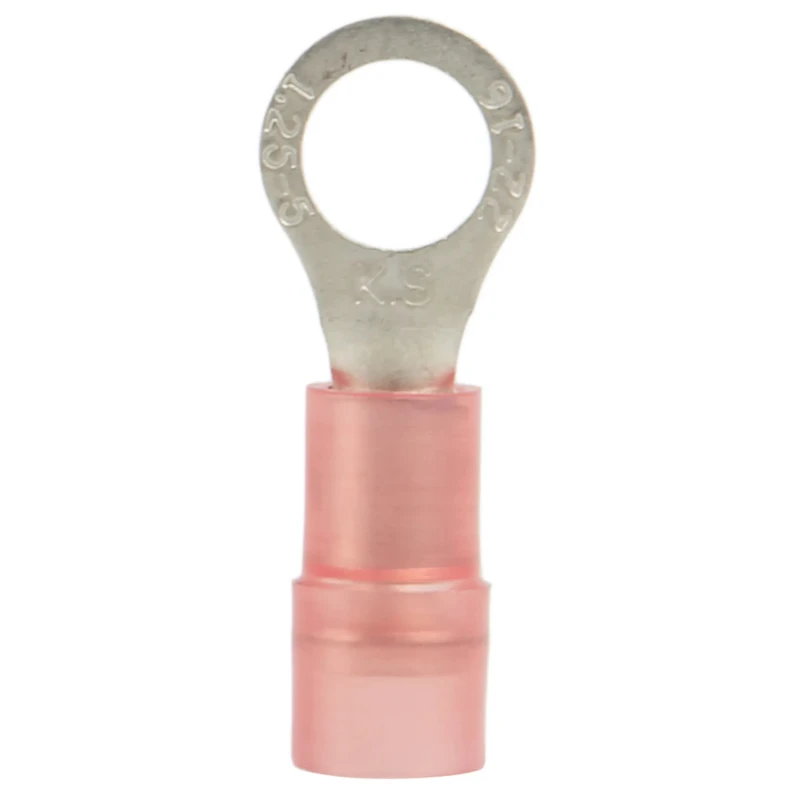

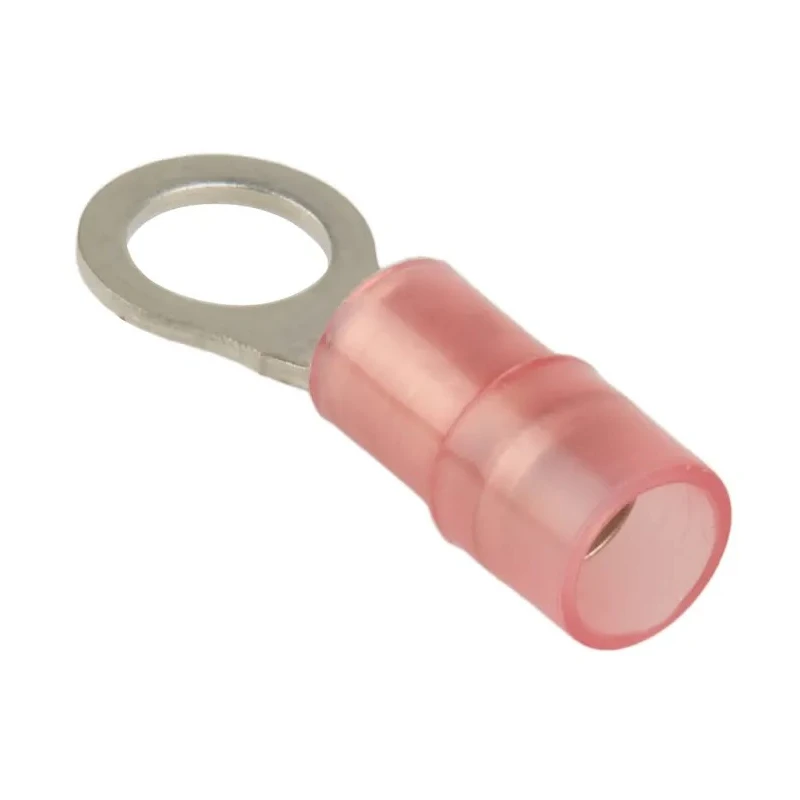

RS PRO Insulated Nylon Ring Terminal, M5 Stud, 22-16 AWG Wire Size, Copper Tin Plated, Red 267-3616

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Insulated Nylon Ring Terminal, M5 Stud, 22-16 AWG Wire Size, Copper Tin Plated, Red 267-3616

Name: RS PRO Insulated Nylon Ring Terminal, M5 Stud, 22-16 AWG Wire Size, Copper Tin Plated, Red 267-3616
Brand: RS PRO
SKU: 180390
Price: 0.11 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
THICKNESS	0.75mm
Model	267-3616
Insulation	Insulated
Overall Length	21.8mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Per Unit, RS stock no	267-3616
RS stock no	270-7625
Outer Ring Diameter	8mm
Inner Ring Diameter	5.3mm
Stud Size	M5
RS PRO Insulated Ring Terminal, M5 Stud Size 22 AWG 16 AWG Wire Size, RedBrand	RS PRO

Key Features

Constructed from high conductivity copper with tin plating for corrosion resistance.
Features a double crimp design with internal copper sleeve for enhanced strength.
Durable red nylon insulation offers abrasion and impact resistance.
Designed to operate within -40°C to 105°C temperature range.
Colour coded insulation allows quick terminal size identification.
Overall length of 21.8mm and 0.75mm thickness for reliable connection.
Ideal for heavy industrial and automotive electrical applications.
Provides secure and stress-resistant wire connection on electrical posts or studs.

Product Description

RS PRO 267-3616 insulated nylon ring terminal is designed for electrical and industrial applications requiring secure wire-to-stud connections. It supports wire sizes from 22 AWG to 16 AWG and is compatible with M5 stud posts. The terminal body is made of copper, ensuring high electrical conductivity, and is tin plated to resist corrosion and enhance durability.

The ring terminal incorporates a double crimp design with an internal copper sleeve, providing superior mechanical strength and vibration resistance. Its red nylon insulation safeguards against abrasion, impact, and electrical shorts while aiding in quick identification of terminal size. This terminal functions reliably in operating temperatures ranging from -40°C to 105°C.

With an outer ring diameter of 8mm and inner ring diameter of 5.3mm, and an overall length of 21.8mm, this product ensures a precise fit and dependable connection in various industrial, automotive, and electrical control systems.

Manufactured with high conductivity copper and tin plating. Double crimp design with internal copper sleeve for strength. Red nylon insulation provides protection and abrasion resistance. Suitable for wire sizes from 22 to 16 AWG (0.5 to 1.5 mm²).

Designed for M5 stud size with 8mm outer ring diameter. Operation temperature range from -40°C to 105°C. Robust and vibration-resistant connection for industrial use. Colour coded for easy size identification and installation.

This insulated Ring Terminal is perfect for applications in industrial machines, automotive wiring, communication equipment, power supplies, and domestic appliances. Its design addresses high vibration environments and electrical system reliability needs.
