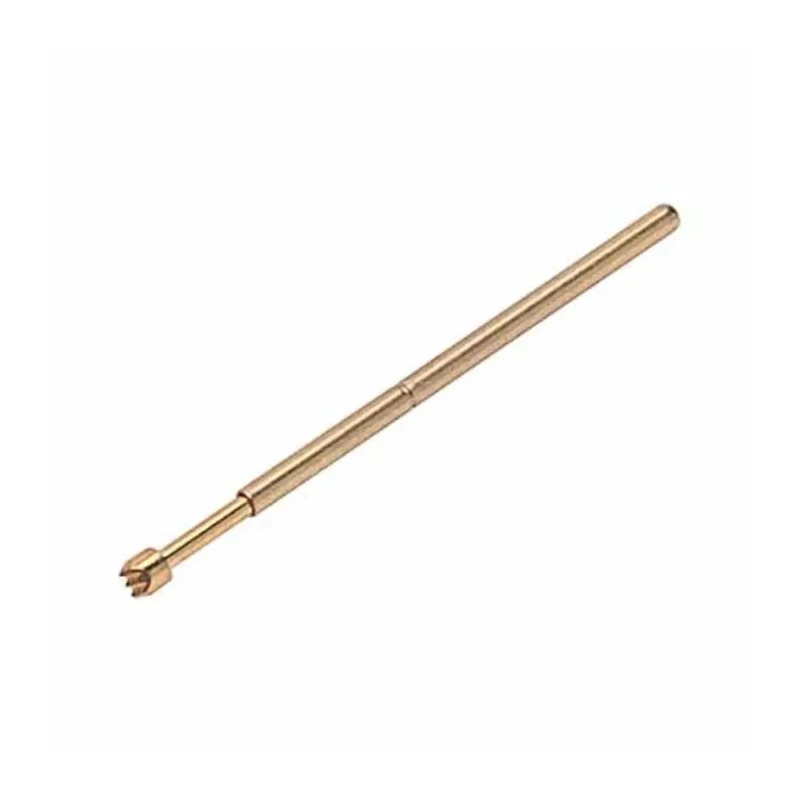

HARWIN Test Pin with Gold Plated Contact, 3A Current Rating, 0.68mm Diameter P13-4023

Name: HARWIN Test Pin with Gold Plated Contact, 3A Current Rating, 0.68mm Diameter P13-4023
Brand: HARWIN
SKU: 179975
Price: 3.29 USD
Availability: InStock



Category Test Connectors Brand HARWIN Condition New

Specifications

Country of Origin	India
Brand	HARWIN
Current	3A
Model	P13-4023
Contact Plating	Gold
RS PRO, Gold Test Pin, 3A, MaleBrand	RS PRO
Plug/Socket Diameter	0.68mm
HARWIN Test Pin, 3A, Gold Plated ContactBrand	HARWIN

Key Features

Compatible with appropriate receptacles available separately to ensure easy replacement.

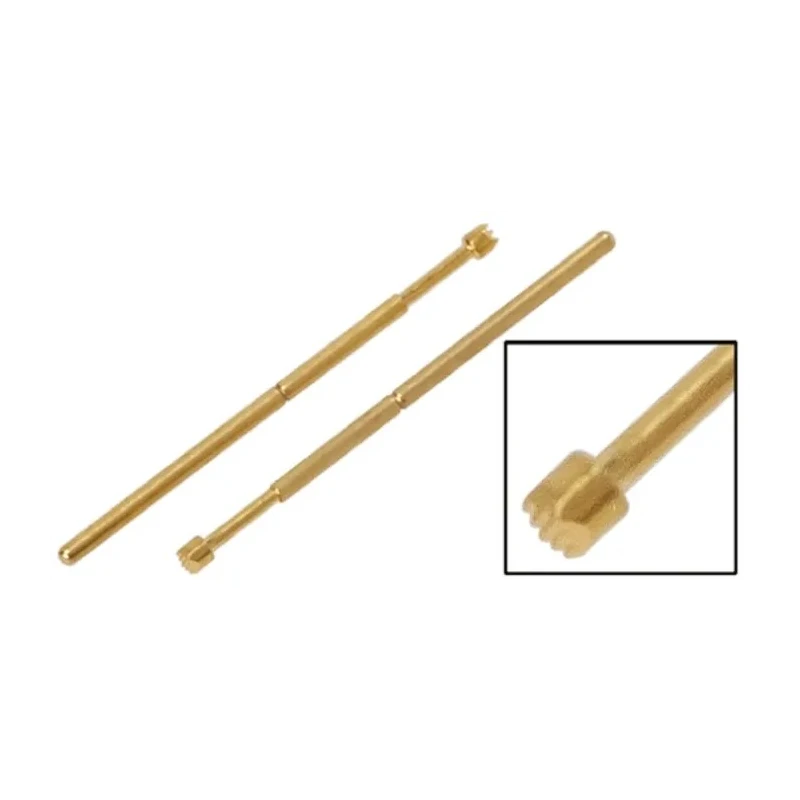

Features a crosscut head ideal for testing lands, pads and leads on multipoint PCBs.
Constructed with gold plating for excellent electrical contact and low resistance.
Supports a current rating of 3 amperes during testing operations.
Sharp crosscut points facilitate penetration for consistent contact.
Suitable for automatic test equipment and test jig applications in development and production.
Receptacles provide an airtight seal without adhesives when push fitted into mounting plates.
Spring pressure ensures reliable connection force during test procedures.

Product Description

HARWIN P13-4023 test pin is a precision electrical test connector designed for use in automated test environments. It features gold plated contacts with a current rating of 3 amperes and a plug diameter of 0.68 mm. The crosscut head design enables effective contact with test lands, pads, and leads on printed circuit boards (PCBs).

This test pin is engineered to be used in conjunction with suitable receptacles, which are ordered separately. Separating the probe from the receptacle facilitates easy replacement of damaged pins without disrupting wiring, minimizing downtime.

Ideal for rapid multipoint PCB testing and sub-assembly validation in development and production, the receptacles push fit into mounting plates to create airtight seals without adhesives. The sharp crosscut points penetrate test surfaces to provide excellent electrical contact while maintaining mechanical reliability.

With a contact resistance approximately 50 milliohms and spring pressure providing consistent engagement force, this test pin enhances the accuracy and reliability of automated test equipment (ATE) and test jigs.

Compatible with appropriate receptacles for easy replacement. Gold plated contacts provide low-resistance and corrosion resistance. 3 ampere current rating supports moderate power testing. Crosscut head design improves contact on test pads and leads.

Push fit receptacles ensure airtight sealing without adhesives. Spring pressure ensures reliable and consistent contact force. Ideal for automated test equipment and production test jigs.

This product is suitable for industrial, electronics manufacturing, and laboratory testing applications where efficient and reliable electrical connection is essential. It enables fast testing cycles on multipoint circuit boards, supporting quality control and functional verification.
