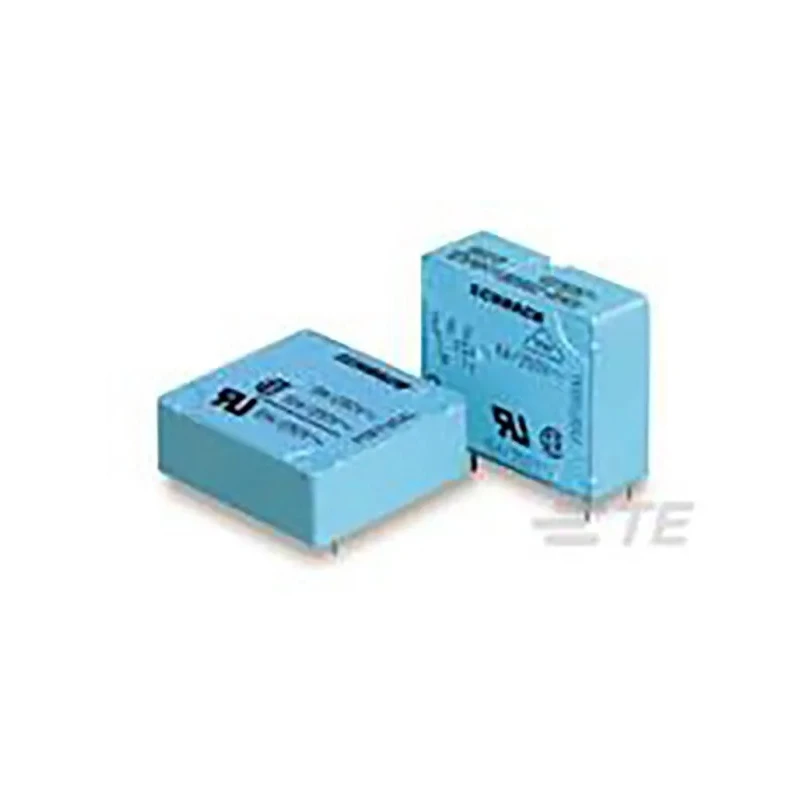

TE Connectivity Power Relay PCB Mount SPDT, 12V DC Coil, 8A Switching Current 6-1393215-9
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.1mm |
| Length | 28mm |
| Width | 10.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | Card E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 330Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 436mW |
Key Features
- This power relay is designed for PCB mounting with a compact 28mm length, 10.4mm width, and 25.1mm height.
- It operates reliably between -40°C to 70°C temperature range for industrial and electronic applications.
- The relay provides switching power of up to 2kVA and switching AC voltage of 400V AC.
- Coil resistance is 330Ω with a low coil power consumption of 436mW for energy efficiency.
- Made with silver alloy contact material for durability and excellent conductivity.
- The product is RoHS compliant and manufactured in the Czech Republic.
- The relay supports both vertical and horizontal mounting and is wash tight for robust use.
- Suitable for industrial control, automation, HVAC, and electrical system integration applications.
Product Description
TE Connectivity 6-1393215-9 power relay is a high-quality PCB-mounted relay designed for switching applications requiring 12V DC coil voltage and 8A current handling with SPDT contact configuration.
This relay belongs to the Card E series, featuring a reliable coil resistance of 330Ω and coil power consumption of 436mW, ensuring efficient electrical performance. Its compact dimensions of 28mm length, 10.4mm width, and 25.1mm height allow for easy integration on PCB assemblies in industrial, manufacturing, and automation environments.
Designed for operation within a temperature range from -40°C up to 70°C, it is suited for harsh and demanding conditions. The relay supports switching AC voltage up to 400V and switching power of 2kVA which satisfies extensive power handling requirements.
The contact material uses silver alloy for exceptional electrical conductivity and long service life. It supports versatile installation options including vertical and horizontal mount with a 2.5 mm contact sequence gap and is wash tight for durability in demanding electric and industrial applications.
12V DC coil voltage and 8A switching current. SPDT contact configuration suitable for a variety of switching circuits. Compact dimensions suitable for PCB mounting. Wide operating temperature range. High switching power and AC voltage capabilities.
Silver alloy contacts for reliability and longevity. RoHS compliant and manufactured in the Czech Republic. Wash tight and adaptable mounting orientations.
This relay is ideal for applications in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other commercial or laboratory installations requiring robust relay operation.
Explore more Power Relay options and related control components in our Electronics & Electricals category at EnvMart, your trusted source for industrial and automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of 8A.
The coil voltage for this relay is 12V DC.
The relay measures 28mm in length, 10.4mm in width, and 25.1mm in height.
It can handle a maximum switching AC voltage of 400V AC.
The coil resistance is 330Ω.
The coil power consumption is 436mW.
It operates reliably within a temperature range of -40°C to 70°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The contacts are made of silver alloy, which provides excellent conductivity.
Yes, this power relay is RoHS compliant.
It is designed for PCB mounting and supports both vertical and horizontal mounting orientations.
This power relay is manufactured in the Czech Republic.
