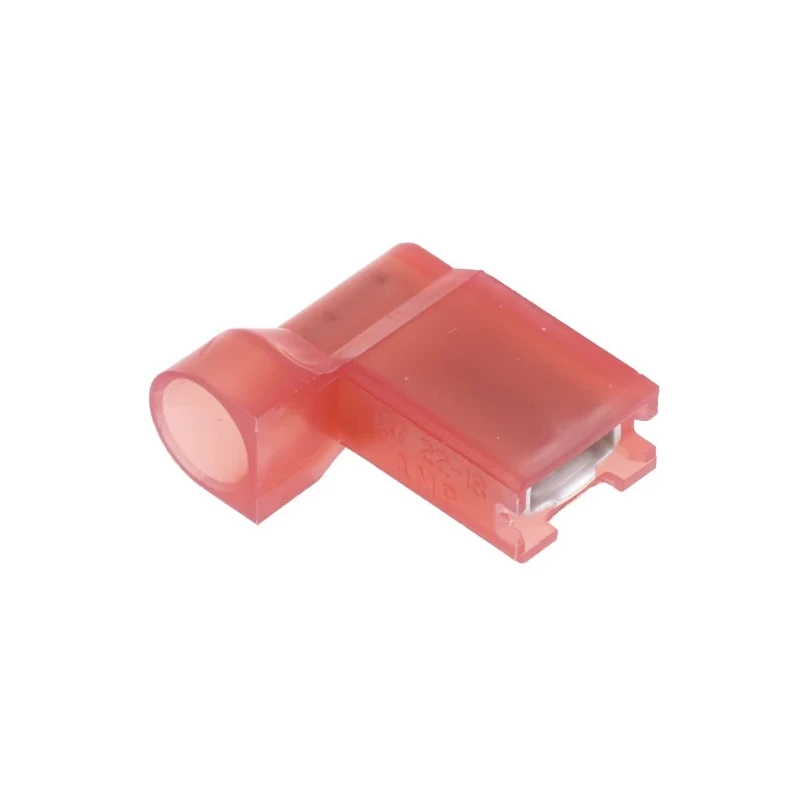

TE Connectivity Ultra-Fast .187 Red Insulated Female Spade Connector Crimp 4.75 x 0.81 mm Tab Size 22 AWG to 18 2-520337-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Angled |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 16.14mm |
| Contact Material | Brass |
| Series | Ultra-Fast .187 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 4.75mm |
| Tab Thickness | 0.81mm |
| Tab Size | 4.75 x 0.81 mm |
Key Features
- Compatible with 22 AWG to 18 AWG wire sizes.
- Features a 4.75 x 0.81 mm tab size for standard male terminal connection.
- Constructed with brass contact material and tin plating for excellent conductivity and corrosion resistance.
- Insulation is red nylon material ensuring safe electrical isolation.
- Angled orientation enhances wiring flexibility and mounting options.
- Overall length of 16.14 mm suitable for compact installations.
- Designed for use in high-voltage applications up to 600V.
- The housing accommodates shouldered tabs with positive entry features for reliable mating.
Product Description
TE Connectivity 2-520337-2 Ultra-Fast .187 Red Insulated Female Spade Connector is an insulated crimp terminal providing secure and shock-resistant wire termination in electrical and electronic applications. The connector is engineered with brass contacts and tin plating to ensure robust electrical conductivity and corrosion resistance.
The red nylon insulation meets UL 94 V-2 standards to safely enclose the tin-plated copper alloy FASTON flag receptacle contact recessed within the housing. This design is suitable for 600V applications, providing enhanced user safety and electrical isolation.
The terminal supports wire gauges ranging from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²), making it versatile for various wiring needs. Its angled orientation and the two-stage roll configuration with a cantilever mounted dimple on the flag receptacle ensure positive mating even in blind locations. The overall compact length of 16.14 mm helps fit installations with limited space.
This connector is ideal for industrial, electronic, automotive, and commercial electrical wiring tasks requiring reliable crimp terminations. It complies with UL310 and CSA 22.2 standards, ensuring quality and safety.
Compatible with 22 AWG to 18 AWG wire sizes. Brass contact material with tin plating for corrosion resistance. Red nylon insulation provides electrical isolation. Angled connector orientation supports flexible wiring setups.
Compact 16.14 mm overall length. Suitable for 600V high-voltage applications. Positive entry design with two-stage roll configuration. Meets UL and CSA safety standards. Explore TE Connectivity connectors and spade terminals in the Electronics & Electricals category on EnvMart for reliable electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
The overall length of this connector is 16.14 mm, making it suitable for compact installations.
It features red nylon insulation that provides electrical isolation and meets UL 94 V-2 standards.
The tab size is 4.75 x 0.81 mm, designed for standard male terminal connections.
The connector is constructed with brass contact material and has tin plating for excellent conductivity and corrosion resistance.
This unit is designed for high-voltage applications up to 600V, ensuring safety in electrical connections.
The angled orientation enhances wiring flexibility and allows for easier mounting in confined spaces.
It complies with UL310 and CSA 22.2 standards, ensuring quality and safety for electrical applications.
This model is a female spade connector, designed for secure connections with male terminals.
It utilizes a crimp termination type, providing a secure and shock-resistant wire termination.
The contact is plated with tin, which enhances conductivity and provides corrosion resistance.
The country of origin for this connector is the United States.
