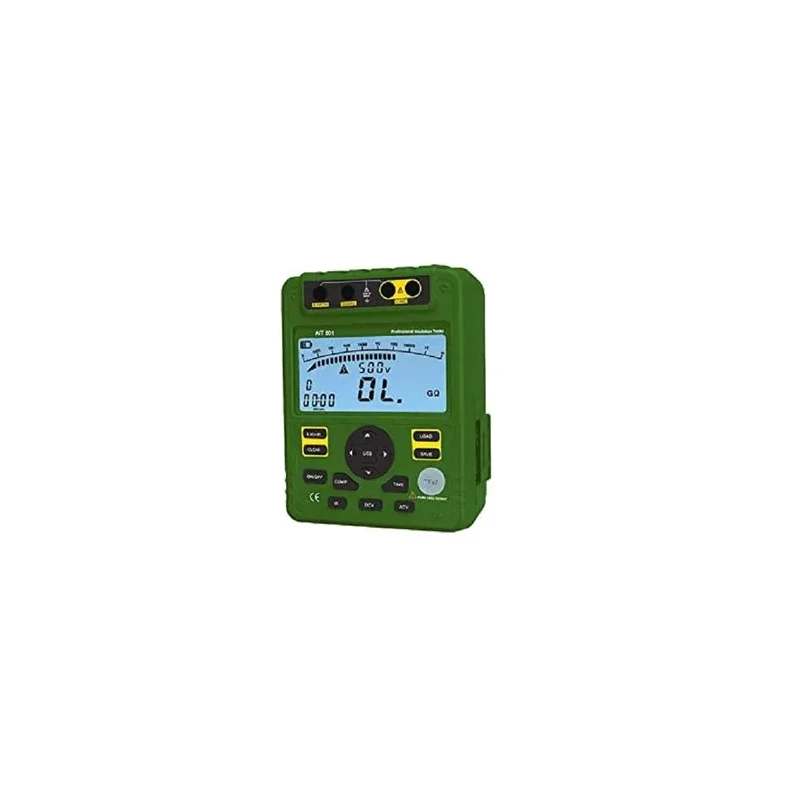

Rishabh AIT-501 Digital Insulation Tester Range 0.1M To 1000G Ohm
Specifications
| Measurement Range | 0-5000 V |
|---|---|
| Display | LCD with backlit screen |
| Frequency | 50/60Hz |
| Relative Humidity | Less Than 85% RH |
| Operating Temperature | 0-40C |
| Storage Temperature | -20 to 60C |
| Model | AIT-501 |
| Weight | 2 KG |
| Power Input | 6 x 1.5V AA Battery |
| Type of Product | Digital Insulation Tester |
| Short Circuit Current | 1.8mA |
| Insulation Test Voltage (V) | 0-5000 V |
| Insulation Resistance Accuracy | 4.97 |
| Dimension In mm (LXWXH) | 202 x 155 x 94 mm |
| AC Voltage Measurement Range | 600V |
Key Features
- Automatic Polarization Index (PI), Dielectric Absorption Ratio (DAR)
- Autoranging insulation resistance tester
- Auto shut down when left idle & Optional Operation on Mains via adapter
- Datalogging capabilities and USB interface
Product Description
Rishabh AIT-501 Digital Insulation Tester Range 0.1M To 1000G Ohm, The Agam AIT 501 is a compact insulation resistance tester with diagnostic features like PI, and DAR. When carrying out insulation resistance measurements this device uses test voltages of 500V, 1000V, 2500V, and 5000V. At 500V this tester can carry out insulation resistance measurements from 1MOhms to 20GOhms, it carries out this measurement at 5MOhms to 1000GOhms. The tester can also be used to carry out AC/DC voltage measurements and low-resistance testing. The AIT 501 is an auto ranging device and will automatically choose the applicable range depending on the test. It also includes a large, backlit LCD screen, an auto power-down function when left idle and includes a USB interface for using the tester to download data to PC. To accompany USB connectivity the AIT 501 also includes data logging capabilities. When displaying testing results the AIT 501 uses both numerical and analog bar graph representations of the test results. It also allows users to carry out comparisons, polarisation index calculations and dielectric absorption calculations. This insulation resistance tester is CAT III 600V, EN 61010-1 and EN 61326-1 compliant. An ideal tool for Insulation testing designed smartly
- Comparator Function
- Wide LCD with backlit screen, Analog bar graph (30 segment)
- Ensures Battery saving
- For maintaining records & data analysis
