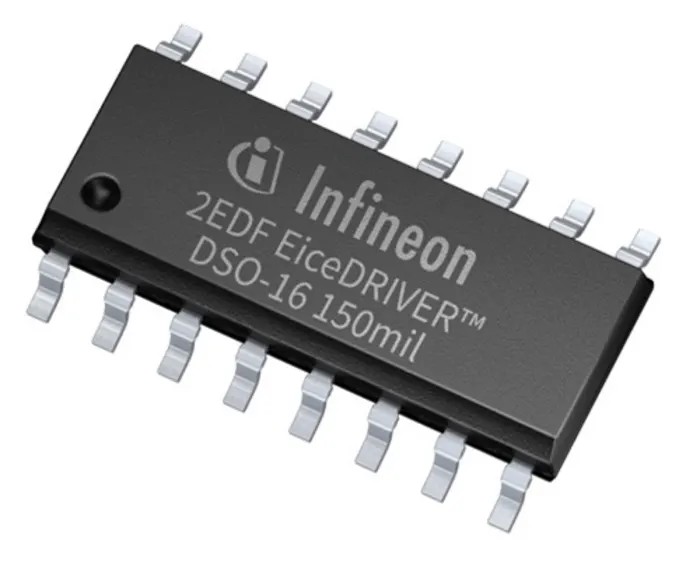

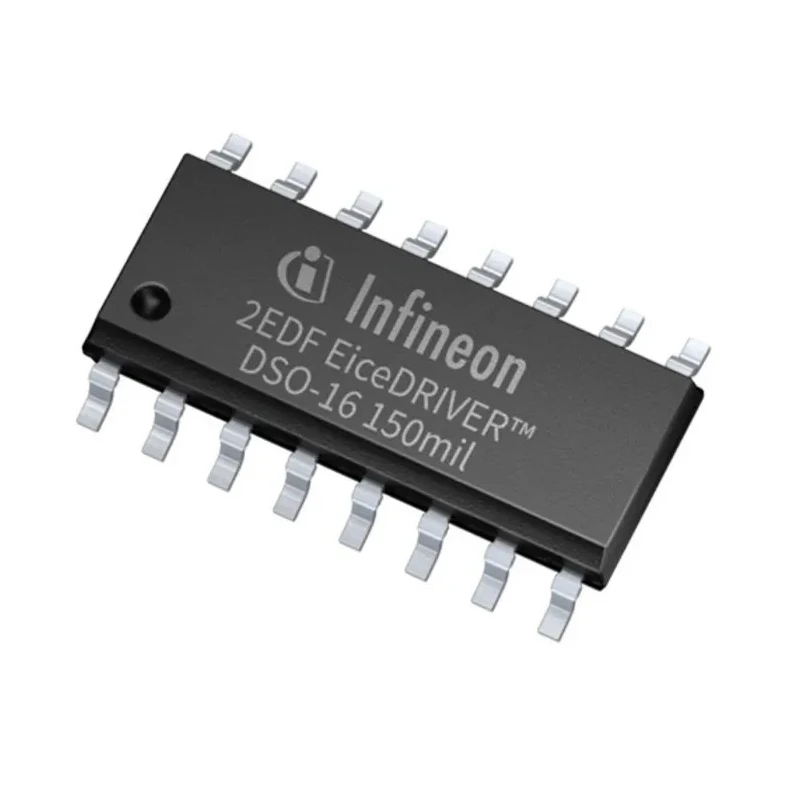

Infineon MOSFET Gate Driver 8 A Output Current 16-Pin DSO-16 Package 3.5 V Supply Voltage 2EDF7175FXUMA2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 2EDF7175FXUMA2 |
| Output Current | 8A |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO-16 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 60747-5-2 |
| Pin Count | 16 |
| Minimum Supply Voltage | 3.5V |
| Fall Time | 4.5ns |
| Driver Type | MOSFET |
Key Features
- Provides 8 A output current for fast and efficient MOSFET gate driving.
- 16-pin DSO-16 package ensures compact integration into circuits.
- Operates at a fixed 3.5 V supply voltage for precise control.
- High noise immunity with 150 V/ns Common Mode Transient Immunity (CMTI).
- Supports dual-channel source/sink with strong 4A/8A capability for high- and medium-voltage MOSFETs.
- Robust design against switching noise ensures reliability in industrial applications.
- Wide operating temperature range from -40°C to 150°C.
- Isolated output channels allow flexible deployment as floating gate drivers.
Product Description
Infineon 2EDF7175FXUMA2 is a MOSFET Gate Driver IC engineered for high performance in primary side control of MOSFETs within noisy, high-power switching environments. It offers a powerful 8 A output current with fast switching capabilities, making it ideal for driving CoolMOS or OptiMOS devices in industrial, automotive, power management, and manufacturing applications.
This device is housed in a compact 16-pin DSO-16 package and operates at a stable 3.5 V supply voltage. The driver features dual output channels with 4A source and 8A sink currents, providing robust switching performance with low fall times of 4.5 ns. Both output channels are fully isolated to minimize cross-talk and ensure high common mode transient immunity up to 150 V/ns.
The 2EDF7175FXUMA2 supports a wide operating temperature range from -40°C to 150°C making it suitable for harsh industrial environments. It complies with DIN EN 60747-5-2 standards, although it does not conform to automotive-specific certifications. Its optimized design aids in reducing system cost and board space usage, ideal for efficient power management IC integration.
8 A output current for robust MOSFET gate drive. 16-pin DSO package for compact circuit integration. Fast fall time of 4.5 nanoseconds for efficient switching. Wide temperature range from -40°C to 150°C for industrial reliability.
High noise immunity with 150 V/ns CMTI provides stable operation in noisy environments. Dual-channel isolated outputs enable flexible floating gate driver applications. Compliant with DIN EN 60747-5-2 standards.
This MOSFET Gate Driver is perfect for applications in industrial power supplies, manufacturing equipment, motor control, HVAC systems, and other environments requiring precise power switching. The compact DSO-16 form factor makes it easy to integrate into new or existing designs focused on power efficiency and reliability.
Explore more Infineon power management ICs and gate drivers in EnvMart’s extensive electronics components catalog. EnvMart offers reliable and high-quality semiconductors for professional industrial and laboratory use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides an output current of 8 A, which is suitable for fast and efficient MOSFET gate driving.
This model operates at a fixed supply voltage of 3.5 V.
The maximum operating temperature is 150°C, making it suitable for harsh industrial environments.
It has a fast fall time of 4.5 nanoseconds, enabling efficient switching.
The DSO-16 package has a total of 16 pins.
It complies with DIN EN 60747-5-2 standards.
The minimum operating temperature is -40°C.
It features a common mode transient immunity (CMTI) of 150 V/ns, providing stability in noisy environments.
It is suitable for applications in industrial power supplies, manufacturing equipment, motor control, and HVAC systems.
Yes, it has dual-channel isolated outputs, allowing for flexible deployment as floating gate drivers.
It is a MOSFET driver designed for high performance in noisy, high-power switching environments.
The dual-channel output provides strong 4A source and 8A sink capabilities, enhancing switching performance for various MOSFETs.
