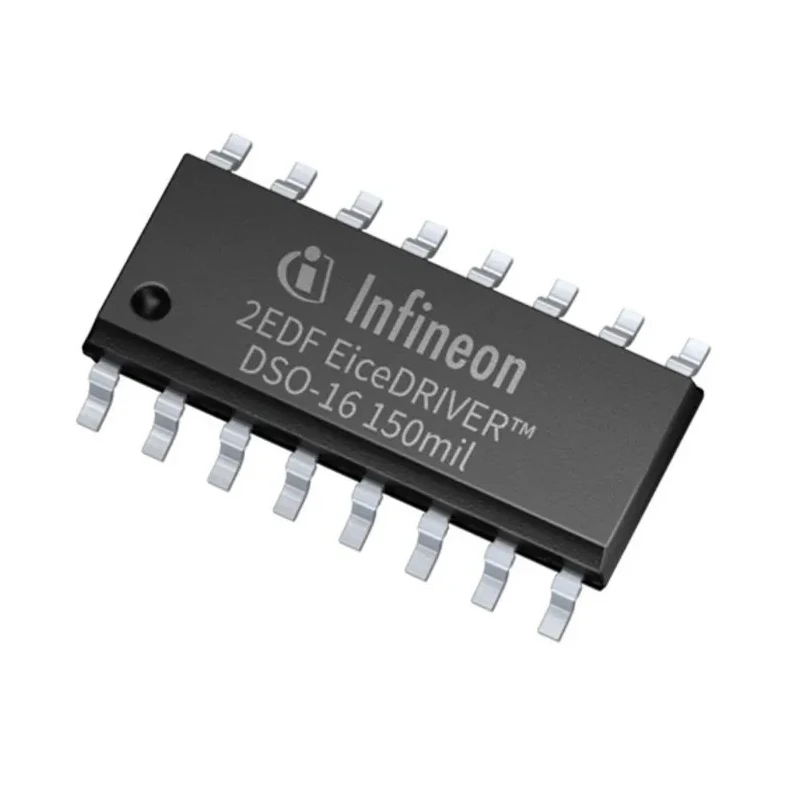

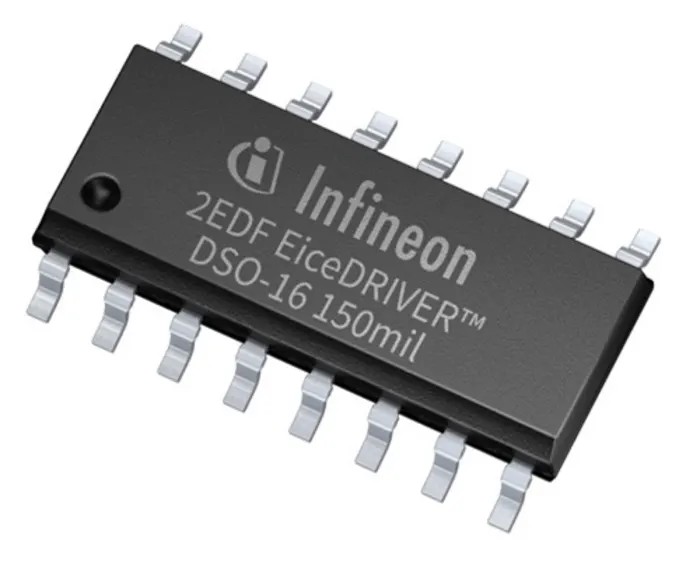

Infineon MOSFET Gate Driver 8 A 16-Pin 3.5V TFLGA-13 2EDF7275FXUMA2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 2EDF7275FXUMA2 |
| Output Current | 8A |
| Maximum Operating Temperature | 150°C |
| Package Type | TFLGA-13 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 60747-5-2 |
| Pin Count | 16 |
| Minimum Supply Voltage | 3.5V |
| Fall Time | 4.5ns |
| Driver Type | MOSFET |
Key Features
- Delivers 8A output current with fast switching capability.
- Available in a compact 16-pin TFLGA-13 package for efficient mounting.
- Minimum and maximum supply voltage of 3.5V ensuring consistent operation.
- Supports operation from -40°C up to 150°C for industrial applications.
- Features short fall time of 4.5ns for improved switching performance.
- Design incorporates output-to-output and input-to-output channel isolation.
- Optimized for driving high- and medium-voltage MOSFETs such as CoolMOS and OptiMOS.
- High Common Mode Noise Immunity (150V/ns) ensures reliable operation in noisy environments.
Product Description
Infineon 2EDF7275FXUMA2 MOSFET Gate Driver is engineered for robust and stable primary side control of high- and low-side MOSFETs in high-power and noisy switching environments. It delivers 8A source/sink dual-channel capability housed in a compact 16-pin TFLGA-13 package operating at a fixed supply voltage of 3.5V.
The gate driver supports a wide operating temperature range from -40°C to 150°C, making it suitable for demanding industrial applications including power management and motor control systems. Its fast switching with a fall time of 4.5ns coupled with output-to-output and input-to-output isolation enhances noise immunity and operational reliability.
Optimized for use with advanced power MOSFETs like CoolMOS and OptiMOS, this driver ensures precise timing and stable operation in power electronics. Its high common mode transient immunity of 150V/ns further protects against electromagnetic interference and noise commonly encountered in industrial environments.
Conforming to the DIN EN 60747-5-2 standard, the Infineon 2EDF7275FXUMA2 guarantees quality and compatibility in electronic circuit designs requiring efficient power control. This product is ideal for use in industrial power supplies, automotive electronic components (non-automotive certified), motor drives, and other high switching applications.
Delivers 8A output current with fast switching capability. Compact 16-pin TFLGA-13 package enables space-saving PCB layouts. Guaranteed operation over -40°C to 150°C temperature range. Fast 4.5ns fall time ensures efficient power switching.
Robust design reduces switching noise effects. High 150V/ns common mode noise immunity for reliable operation. Isolated channels provide flexible gate driver configurations. Complies with DIN EN 60747-5-2 semiconductor standards.
Discover more in the Electronics & Electricals category or explore additional Infineon power management components and MOSFET Gate Drivers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an output current of 8A, making it suitable for driving high- and medium-voltage MOSFETs.
It operates within a temperature range of -40°C to 150°C, which is suitable for industrial applications.
The driver is housed in a compact 16-pin TFLGA-13 package, allowing for efficient mounting on PCBs.
It features a fall time of 4.5ns, which contributes to its fast switching capability.
This model conforms to the DIN EN 60747-5-2 standard, ensuring quality and compatibility in electronic circuit designs.
It has a high common mode transient immunity of 150V/ns, which protects against electromagnetic interference and noise.
It is optimized for driving advanced power MOSFETs such as CoolMOS and OptiMOS, ensuring precise timing and stable operation.
Yes, the design incorporates output-to-output and input-to-output isolation, allowing for flexible gate driver configurations.
The minimum supply voltage required for operation is 3.5V, ensuring consistent performance.
It is suitable for industrial power supplies, automotive electronic components (non-automotive certified), and motor drives.
This model features a pin count of 16, which is typical for its compact package design.
The country of origin for this product is India.
