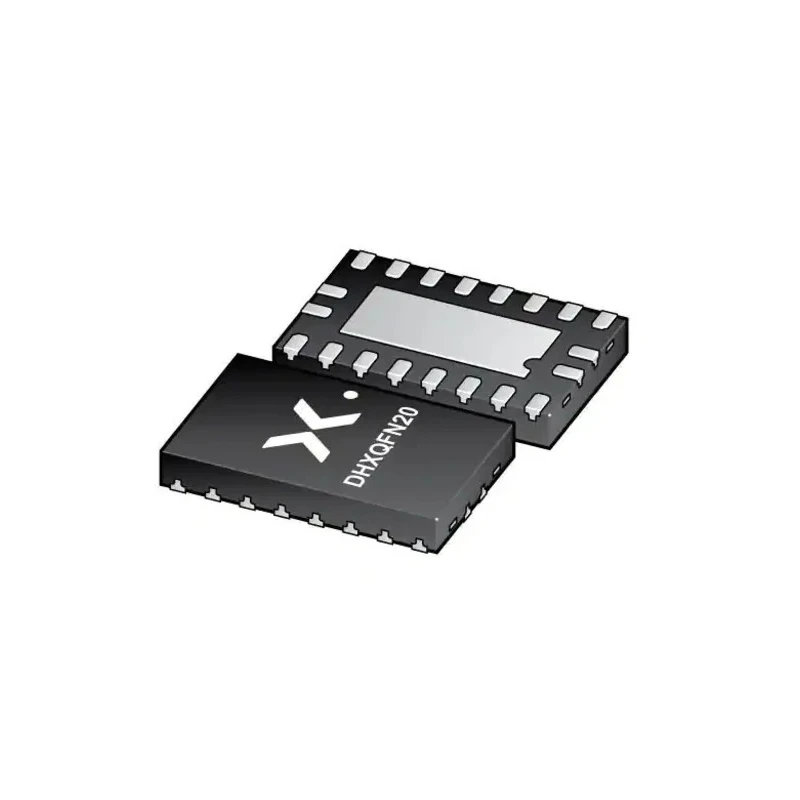

Nexperia 10-Channel Octal Buffer & Line Driver, 3 State, 20-Pin DHXQFN20 74LVC244ABZX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 480μm |
| Length | 3.2mm |
| Model | 74LVC244ABZX |
| Width | 2mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74LV |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | DHXQFN20 |
| Minimum Operating Temperature | -40°C |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 10 |
| Standards/Approvals | JEDEC, RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | 74LV |
| Logic Function | Buffer |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
Key Features
- The device operates with a supply voltage range from 1.65V to 3.6V.
- It features 10 buffer channels with Schmitt-trigger inputs for improved noise immunity.
- Outputs are 3-state with two output enables controlling half of the channels each.
- Surface mount package DHXQFN20 with compact dimensions of 3.2mm length, 2mm width, and 480μm height.
- Operating temperature range is from -40°C to 125°C, suitable for industrial applications.
- Supports mixed 3.3V and 5V environments allowing for voltage translation.
- Complies with JEDEC and RoHS standards ensuring quality and environmental compliance.
- Maximum output currents are -24mA (high level) and 24mA (low level).
Product Description
Nexperia 74LVC244ABZX is a 10-channel octal buffer and line driver featuring 3-state outputs and housed in a 20-pin DHXQFN20 surface mount package. This device belongs to the 74LV logic family and is designed to operate with a supply voltage range from 1.65 V to 3.6 V, making it compatible with a wide range of electronic circuit applications.
The buffer/line driver IC includes Schmitt-trigger inputs which enhance circuit tolerance to slow input signal rise and fall times, improving noise immunity in signal transmission. It has two output enable inputs each controlling four output channels, allowing flexible control of output states including high-impedance OFF-states for bus-oriented applications.
This component’s compact package size (3.2 mm length, 2 mm width, and 480 μm height) makes it ideal for space-constrained circuit boards. Its operating temperature range of -40°C to 125°C enables reliable performance even in harsh industrial environments. The device is suitable for interfacing 3.3 V and 5 V logic levels, providing direct translation functionality without additional components.
Applications include industrial controls, digital signal buffering, data transmission lines, and mixed voltage system interfacing in electronics and semiconductor industries. The device complies with JEDEC and RoHS standards, ensuring compliance with quality and environmental regulations.
The device supports a wide supply voltage range from 1.65 V to 3.6 V ensuring versatile usage. Schmitt-trigger inputs improve noise immunity for slow input transitions. Three-state outputs with independent output enables provide flexible signal control.
Compact DHXQFN20 surface mount package enabling space saving assembly. Operating temperature range from -40°C to 125°C for industrial reliability. Maximum output current ratings of -24mA (high level) and 24mA (low level).
Direct interface capability with TTL levels and overvoltage tolerant inputs. Provides partial power-down mode operation with IOFF circuitry for energy efficiency. Explore the extensive range of semiconductor interface ICs at EnvMart for industrial and electronic circuit design solutions.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage range for the Nexperia 74LVC244ABZX is from 1.65V to 3.6V.
This device features 10 buffer channels.
It operates within a temperature range of -40°C to 125°C.
This model utilizes Schmitt-trigger inputs, which enhance noise immunity.
The maximum output current ratings are -24mA for high level and 24mA for low level.
It is housed in a 20-pin DHXQFN20 surface mount package.
Yes, it supports mixed 3.3V and 5V environments, allowing for voltage translation.
It complies with JEDEC and RoHS standards, ensuring quality and environmental compliance.
The height of this model is 480μm.
The outputs are controlled by two output enable inputs, each managing half of the channels.
It is suitable for applications such as industrial controls, digital signal buffering, and mixed voltage system interfacing.
The length is 3.2mm and the width is 2mm.
