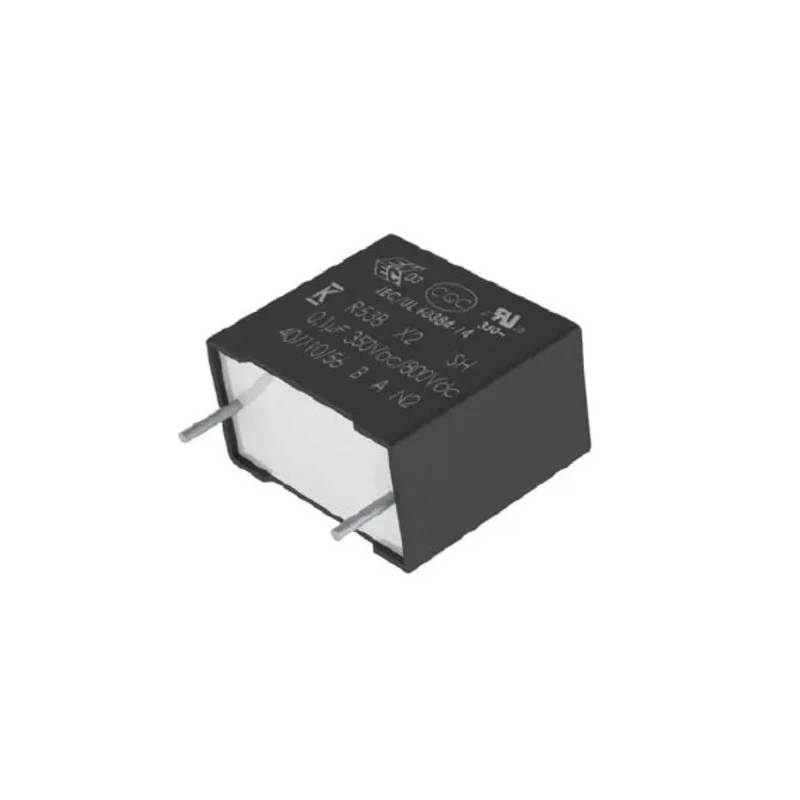

KEMET R53B Film Capacitor 560 nF 800 V DC 350 V AC Through Hole Mount R53BN35605000K
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | KEMET |
| Height | 18.5mm |
| Length | 26.5mm |
| Model | R53BN35605000K |
| Packaging | Tape & Reel |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | R53B |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 560nF |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | 0.3% |
| Standards/Approvals | IEC 60384-14 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 350V ac |
| Rated DC Voltage | 800V dc |
| Lead Pitch | 22.5mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with metallized polypropylene film for reliable electrical performance.
- Encapsulated in self-extinguishing resin compliant with UL 94 V - 0 for enhanced safety.
- Meets AEC-Q200 automotive qualification standards and IEC 60384-14 specifications.
- Operates within a temperature range of -40°C to +125°C suitable for harsh environments.
- Features 22.5 mm lead pitch for easy through-hole PCB mounting.
- Comes in a plastic box case with a dissipation factor of 0.3% ensuring efficiency.
- Includes self-healing properties for prolonged operational life.
- Suitable for automotive, industrial, and electronic component applications.
Product Description
KEMET R53BN35605000K film capacitor is a high-performance component designed for demanding electronic applications that require stability and reliability. It has a capacitance value of 560 nF with a tolerance of ±10 % and supports a rated DC voltage of 800 V and an AC voltage of 350 V, making it ideal for power electronics and automotive environments.
The capacitor utilizes metallized polypropylene film encapsulated in self-extinguishing resin compliant with UL 94 V - 0 standards. This construction enables it to withstand harsh climatic conditions, including temperatures ranging from -40°C to +125°C, enhancing usability in industrial and automotive sectors.
Standards compliance includes IEC 60384-14 and the capacitor is qualified to the automotive electronics council AEC-Q200 standards, ensuring it meets rigorous performance and safety requirements. Its 22.5 mm lead pitch facilitates secure through-hole mounting on printed circuit boards.
The plastic box case packaging ensures durability and consistent performance while maintaining a low dissipation factor of 0.3%. Self-healing properties contribute to extended life expectancy by restoring insulation after fault occurrences.
Constructed with metallized polypropylene film for high electrical performance. Encapsulated in self-extinguishing resin (UL 94 V - 0). Qualified to AEC-Q200 for automotive applications. Operating temperature range: -40°C to +125°C.
Rated voltages: 800 V DC and 350 V AC. Lead pitch of 22.5 mm for through-hole mounting. Low dissipation factor of 0.3%. Self-healing capacitor technology. Plastic box package for protection.
This film capacitor is well-suited for industrial, automotive, power electronics, and electronic component manufacturing applications where robust performance and compliance with international standards are required. Its design and rating make it reliable for use in circuits requiring high voltage tolerance and stable capacitance.
Explore more electronic components and Film Capacitors available on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 560 nF with a tolerance of ±10%.
It supports a rated DC voltage of 800 V and an AC voltage of 350 V.
The operating temperature range is from -40°C to +125°C, making it suitable for harsh environments.
This model features a lead pitch of 22.5 mm for secure through-hole PCB mounting.
It is constructed with metallized polypropylene film and encapsulated in self-extinguishing resin compliant with UL 94 V - 0 standards.
It meets IEC 60384-14 specifications and is qualified to AEC-Q200 automotive standards.
The dissipation factor is 0.3%, ensuring efficient performance.
It comes in a plastic box case, which ensures protection and durability.
This model has a pin count of 2.
It is suitable for automotive, industrial, and electronic component applications.
The dimensions are 18.5 mm in height, 10 mm in width, and 26.5 mm in length.
Yes, it includes self-healing properties that contribute to its prolonged operational life.
