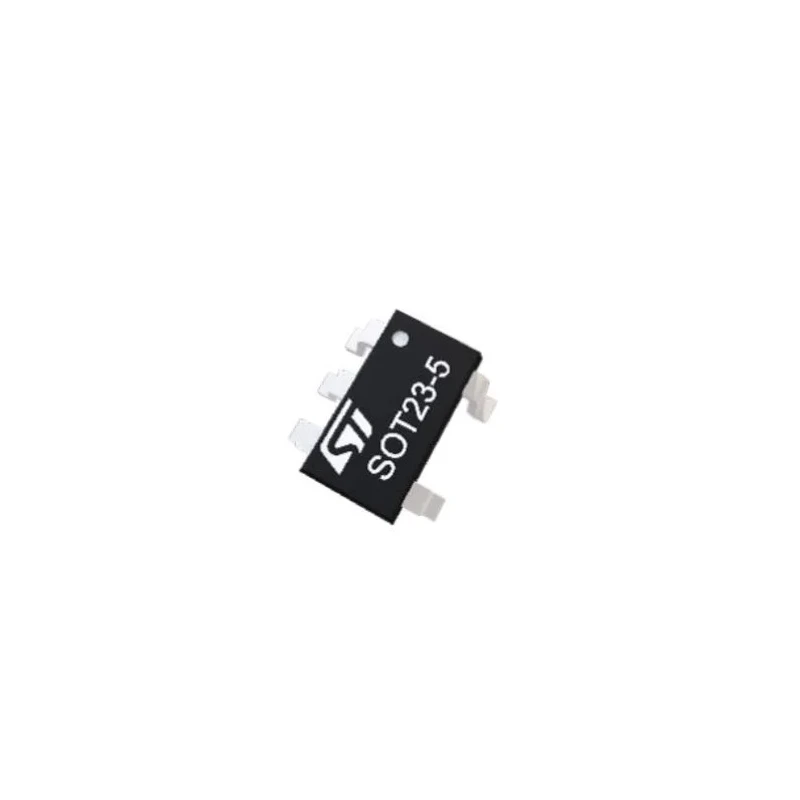

STMicroelectronics Operational Amplifier 50 MHz 5-Pin 5.5V SOT-23 TSV791

STMicroelectronics TSV791 is a single-channel operational amplifier featuring a high gain bandwidth product of 50 MHz in a compact 5-pin SOT-23 surface mount package. This amplifier operates from a 2.2 V to 5.5 V single supply, making it suitable for low-voltage applications. It boasts a rail-to-rail input stage and output, enabling full signal swing and excellent accuracy for small input signals with a low input offset voltage of ±700 μV and low input bias current of 75 pA.

The TSV791 offers a fast slew rate of 30 V/μs, allowing it to handle rapidly changing signals effectively. Its extended operating temperature range, from -40°C to 125°C, and compliance with RoHS and automotive standards AEC-Q100 and AEC-Q2 make it a reliable component for industrial, automotive, and commercial electronic applications.

Compact physical dimensions of 3 mm length, 1.75 mm width, and 1.45 mm height allow efficient space utilization on printed circuit boards. It is designed to operate with an output capacitor typically up to 1 nF and specified on a load of 22 pF, making it ideal for use as an input buffer for analog-to-digital converters (ADCs) as well as low-side current sensing.

Applications include precision amplification in electronics and electrical systems for industrial instrumentation, automotive electronics, HVAC control systems, manufacturing equipment, and laboratory instrumentation.

Single-channel surface mount amplifier. 50 MHz gain bandwidth product. Supply voltage range: 2.2 V to 5.5 V. Low input offset voltage and bias current. Rail-to-rail input and output. Fast slew rate of 30 V/μs. Operating temperature -40°C to 125°C.

RoHS compliant and automotive qualified (AEC-Q100, AEC-Q2). SOT-23 package: 3 mm x 1.75 mm x 1.45 mm. Ideal for ADC input buffer and current sensing. Explore more products in the Operational Amplifier category on EnvMart for diverse industrial and electronic component solutions.
