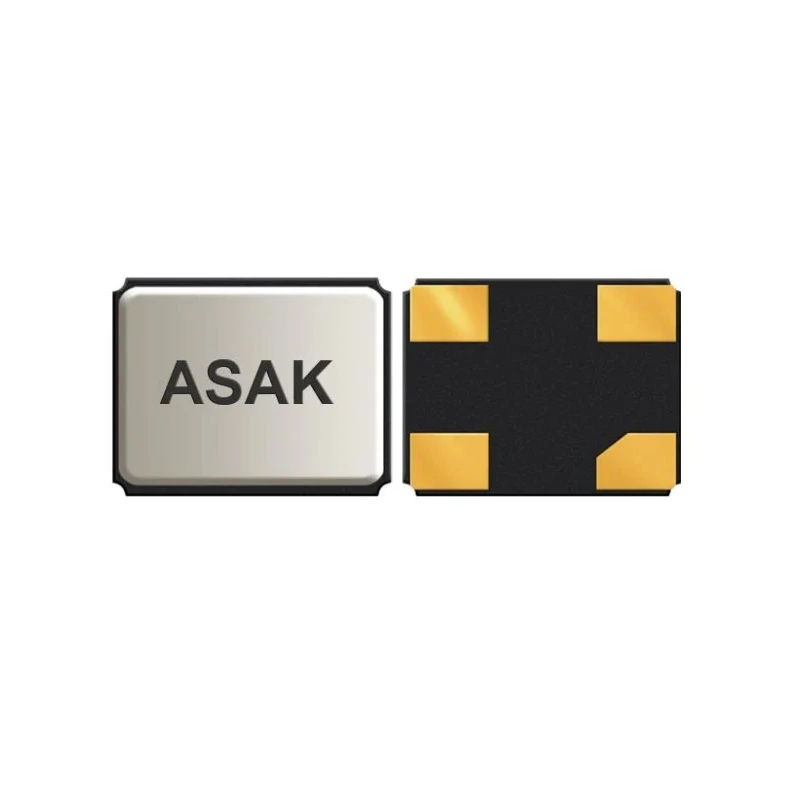

Abracon 32.768kHz Crystal Oscillator, ±25ppm LVCMOS, 4-Pin Surface Mount ASAK2-32.768KHZ-LRS-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 32.768kHz Crystal Oscillator, ±25ppm LVCMOS, 4-Pin Surface Mount ASAK2-32.768KHZ-LRS-T

Name: Abracon 32.768kHz Crystal Oscillator, ±25ppm LVCMOS, 4-Pin Surface Mount ASAK2-32.768KHZ-LRS-T
Brand: Abracon
SKU: 177297
Price: 2.19 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.7mm
Length	2mm
Model	ASAK2-32.768KHZ-LRS-T
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	ASAK
Maximum Operating Temperature	85°C
Output Frequency	32.768kHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.63V
Minimum Supply Voltage	2.97V
Oscillator Type	Crystal Oscillator
Output Level	LVCMOS

Key Features

The oscillator is supplied in a compact 2.0 x 1.6 x 0.7mm surface-mount package.
It operates over a voltage range of 2.97V to 3.63V ensuring flexible power compatibility.
Low current consumption of maximum 240 μA extends device lifetime and efficiency.
Operating temperature range from -40°C to 85°C supports diverse industrial environments.
The seam sealed ceramic package ensures high reliability and RoHS compliance.
Pin count of 4 enables easy surface mounting on PCB applications.
Ideal for applications such as laptops, digital cameras, wireless LAN, LCDs, and PDAs requiring stable timing signals.

Product Description

The Abracon ASAK2-32.768KHZ-LRS-T 32.768kHz Crystal Oscillator is a high precision surface-mount device offering frequency stability of ±25ppm. Its ceramic seam sealed package with LVCMOS output delivers excellent reliability and performance in compact form.

Designed for low power consumption, this oscillator consumes a maximum current of 240 μA making it suitable for battery-powered electronics. It operates across an input voltage from 2.97V to 3.63V and withstands industrial operating temperatures from -40°C to 85°C.

This 4-pin oscillator measures just 2.0mm in length, 1.6mm in width, and 0.7mm in height, ideal for space-constrained electronic components on circuit boards.

Its RoHS compliance guarantees safe use in environmentally conscious manufacturing processes. The ASAK series is specifically designed for applications including laptops, digital cameras, wireless LAN equipment, LCD displays, and portable digital assistants requiring stable crystal timing references.

The oscillator is sized 2.0 x 1.6 x 0.7 mm for easy integration. It offers LVCMOS level output compatible with modern digital circuits. Operating temperature range ensures durability in harsh environments. Low power design supports extended device operation.

Seam sealed packaging offers protection against environmental factors.

This product is integral for industrial and commercial electronics requiring precise timing. Browse similar Crystal Oscillators and related components in EnvMart's comprehensive Electronics Components category.
