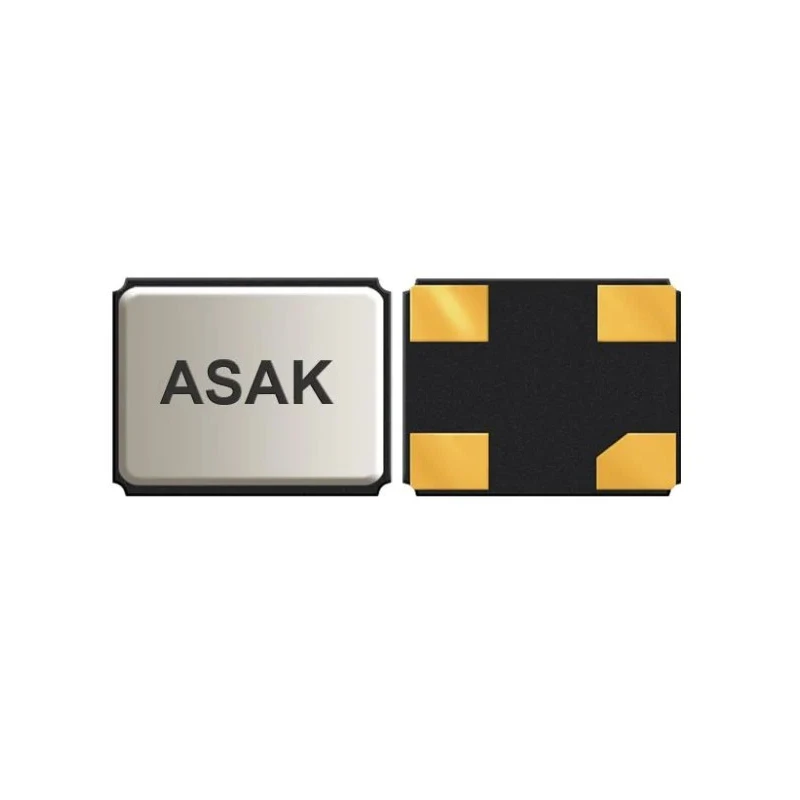

Abracon 32.768kHz Crystal Oscillator ±25ppm LVCMOS 4-Pin Surface Mount ASAK2-32.768KHZ-LRS-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 32.768kHz Crystal Oscillator ±25ppm LVCMOS 4-Pin Surface Mount ASAK2-32.768KHZ-LRS-T

Name: Abracon 32.768kHz Crystal Oscillator ±25ppm LVCMOS 4-Pin Surface Mount ASAK2-32.768KHZ-LRS-T
Brand: Abracon
SKU: 177286
Price: 2.74 USD
Availability: InStock



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.7mm
Length	2mm
Model	ASAK2-32.768KHZ-LRS-T
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	ASAK
Maximum Operating Temperature	85°C
Output Frequency	32.768kHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Supply Voltage	3.63V
Minimum Supply Voltage	2.97V
Oscillator Type	Crystal Oscillator
Output Level	LVCMOS

Key Features

This crystal oscillator operates at a frequency of 32.768kHz with ±25ppm accuracy.
It features a low current consumption of 240 μA maximum for energy-efficient operation.
The package is a compact 2.0 x 1.6 x 0.7mm ceramic surface-mount design with a seamless sealed enclosure for reliability.
Supply voltage range is from 2.97V to 3.63V suitable for low power electronics.
It supports operating temperatures from -40°C to +85°C, ensuring durability in various environments.
The 4-pin surface mount configuration allows for easy PCB assembly and automated manufacturing processes.
It is RoHS and RoHS II compliant, meeting environmental and regulatory standards.
Typical applications include laptops, digital cameras, wireless LAN, LCDs, PDAs, and other digital devices.

Product Description

Abracon ASAK2-32.768KHZ-LRS-T is a high-precision 32.768kHz crystal oscillator with ±25ppm frequency stability, designed for modern electronic applications requiring accurate timing signals.

Featuring a low current consumption of 240 microamperes maximum, this oscillator ensures power efficiency for battery-sensitive devices.

It is packaged in a compact 2.0mm length, 1.6mm width, and 0.7mm height surface mount ceramic package with a seam-sealed design that provides excellent environmental protection and long-term reliability.

The oscillator operates reliably within a wide temperature range from -40°C to 85°C, making it suitable for industrial and consumer electronics environments. Operating on a supply voltage of 2.97V to 3.63V, it outputs a clean LVCMOS signal tailored for direct interfacing with digital circuits.

This device complies with RoHS and RoHS II environmental standards, supporting sustainable manufacturing practices.

Common use cases include timing applications in laptops, digital cameras, wireless communication devices, LCD displays, PDAs, and portable consumer electronics requiring compact and reliable frequency sources.

This crystal oscillator operates at a frequency of 32.768kHz with ±25ppm accuracy. It features a low current consumption of 240 μA maximum for energy-efficient operation. The package is a compact 2.0 x 1.6 x 0.7mm ceramic surface-mount design with a seamless sealed enclosure for reliability.

Supply voltage range is from 2.97V to 3.63V suitable for low power electronics. It supports operating temperatures from -40°C to +85°C, ensuring durability in various environments. The 4-pin surface mount configuration allows for easy PCB assembly and automated manufacturing processes.

It is RoHS and RoHS II compliant, meeting environmental and regulatory standards. Typical applications include laptops, digital cameras, wireless LAN, LCDs, PDAs, and other digital devices. Explore our broad selection of Crystal Oscillators and electronic components on EnvMart to find compatible parts for your next project.
