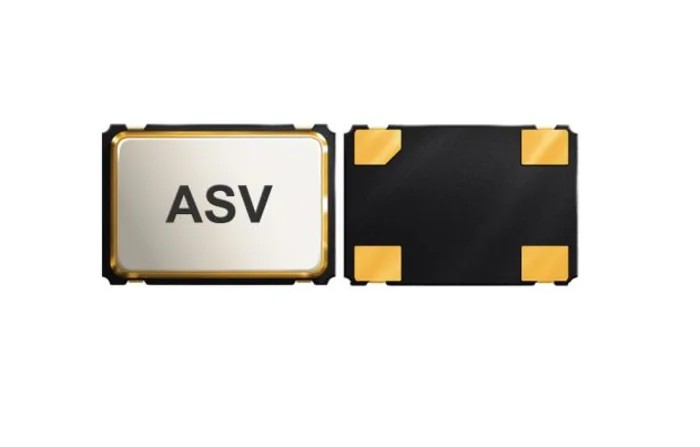

Abracon 14.7456MHz Clock Oscillator Crystal Oscillator HCMOS 4-Pin Surface Mount ASV-14.7456MHZ-EJ-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.8mm |
| Length | 7mm |
| Model | ASV-14.7456MHZ-EJ-T |
| Packaging | Tape & Reel |
| Width | 5.08mm |
| Mount Type | Surface |
| Series | ASV |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 14.7456MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 2.97V |
| Oscillator Type | Clock Oscillator |
| Output Level | HCMOS |
Key Features
- Operates at output frequency of 14.7456MHz for precise clock timing.
- Features HCMOS output level suitable for modern digital circuitry.
- Surface mount package with 4 pins for compact PCB integration.
- Wide operating temperature range from -20°C to 70°C ensures reliability in various environments.
- Supplied in tape and reel packaging for efficient automated assembly.
- Compatible with 2.97V to 3.63V supply voltage range including standard 3.3V logic.
- Seam-sealed package construction provides high reliability and long lifetime.
- High output drive capability up to 50pF load supports diverse circuit needs.
Product Description
The Abracon ASV-14.7456MHZ-EJ-T is a precision 14.7456MHz clock oscillator designed in a 4-pin surface mount package compatible with HCMOS output requirements. It operates reliably across a wide temperature range from -20°C to 70°C and supports supply voltages from 2.97V to 3.63V, making it highly versatile for various electronic applications.
This oscillator is ideal for generating clock signals for microprocessors, PC motherboards, graphic cards, and other digital circuits requiring stable timing sources. Its seam-sealed package ensures excellent environmental protection and product longevity.
The device offers a high output drive capability suitable for loading up to 50pF, enabling robust signal integrity in complex circuits. Supplied on tape and reel, the oscillator is optimized for automated surface mount assembly lines, supporting volume manufacturing processes.
Physical dimensions of 7mm length, 5.08mm width, and 1.8mm height allow for compact PCB footprint integration, suitable for space-constrained designs. RoHS and RoHS II compliance affirm this product's adherence to environmental safety standards, supporting eco-friendly electronics manufacturing.
Operates at 14.7456MHz output frequency for precise timing. HCMOS output level compatible with modern digital logic. 4-pin surface mount package reducing assembly space. Wide temperature rating from -20°C to 70°C for enduring performance.
Tape and reel packaging facilitates high-speed assembly. Supply voltage range from 2.97V to 3.63V supports 3.3V logic systems. Seam-sealed construction enhances reliability and durability. High output drive with load capacitance up to 50pF.
RoHS/RoHS II compliant ensuring environmental safety. Compact dimensions of 7x5.08x1.8 mm for PCB integration.
This clock oscillator is widely used in industrial electronics, computing hardware, communication equipment, and other applications requiring exact clocking signals. Its surface mount design and tape & reel packaging make it suitable for automated manufacturing and assembly processes.
For further hardware components and compatible oscillators, explore the Electronics Components category at EnvMart.
Explore more products in our Crystal Oscillator category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this clock oscillator is 14.7456MHz, providing precise timing for various applications.
This model supports a supply voltage range from 2.97V to 3.63V, making it compatible with standard 3.3V logic systems.
The dimensions of this oscillator are 7mm in length, 5.08mm in width, and 1.8mm in height, allowing for compact PCB integration.
It operates reliably within a temperature range of -20°C to 70°C, ensuring performance in various environments.
The oscillator provides HCMOS output levels, which are suitable for modern digital circuitry.
This model features a 4-pin configuration, which is standard for its surface mount design.
It supports a maximum load capacitance of up to 50pF, enabling robust signal integrity in circuits.
The oscillator is supplied in tape and reel packaging, which facilitates efficient automated assembly processes.
Yes, it is RoHS and RoHS II compliant, ensuring adherence to environmental safety standards.
This clock oscillator is widely used in industrial electronics, computing hardware, and communication equipment that require stable clock signals.
It features a seam-sealed package construction, which enhances reliability and longevity in various applications.
This model belongs to the ASV series of clock oscillators, known for their precision and performance.
