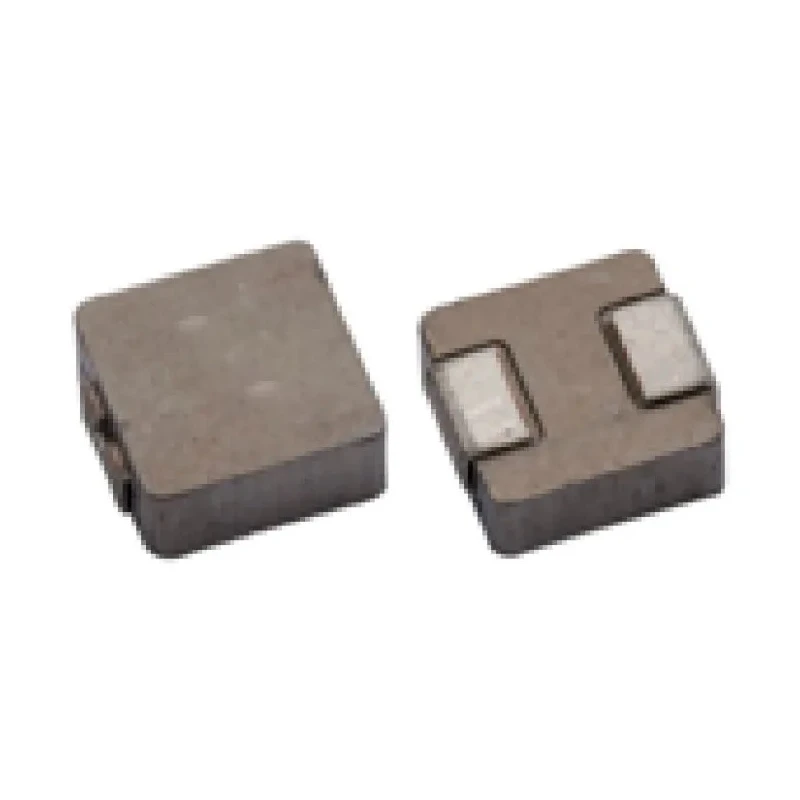

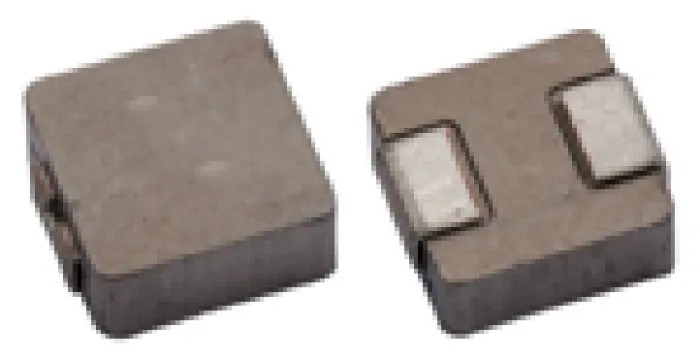

Abracon Shielded Surface Mount Moulding Type Power Inductor with Iron Core 4.7 nH ±20 % 4.5 A ASPI-0530LR-4R7M-T2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 5.6mm |
| Model | ASPI-0530LR-4R7M-T2 |
| Depth | 3mm |
| Packaging | Tape and Reel |
| Series | ASPI-0530LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 4.7nH |
| Standards/Approvals | QS 9000, Pb RoHS, ISO 9001 |
| Package/Case | Surface Mount |
| Maximum DC Current | 4.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 65mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Suitable for Reflow Soldering |
| Inductor Construction | Moulding Type Power Inductor |
Key Features
- Features a compact surface mount package suitable for automated reflow soldering.
- Constructed with an iron core for enhanced magnetic performance.
- Rated for operating temperatures from -55°C to 125°C ensuring reliability in harsh environments.
- Low DC resistance of 65 mΩ reduces power loss during high current operation.
- Comes in a tape and reel packaging for streamlined assembly processes.
- Designed for applications including DC/DC converters in notebooks, desktops, and servers.
- Shielded design minimizes electromagnetic interference in sensitive circuits.
- Compliant with QS 9000, Pb RoHS, and ISO 9001 quality standards.
Product Description
Abracon ASPI-0530LR-4R7M-T2 is a shielded surface mount moulding type power inductor featuring an iron core with an inductance of 4.7 nH ±20 % tolerance and a maximum DC current rating of 4.5 A. This inductor is engineered for high saturation current and low loss due to its low DC resistance of 65 mΩ. The protective shielded design enhances electromagnetic compatibility, essential for industrial, automotive, and commercial electronics applications.
Its robust tape and reel packaging support automated assembly lines, making it ideal for high-volume production environments. The compact dimensions of 5.6 mm length, 3 mm height, and 3 mm depth enable its integration in space-constrained devices.
Designed primarily for DC/DC converter applications in notebooks, netbooks, desktops, servers, and low profile high current power supplies, this inductor supports frequency operation up to 3 MHz, ensuring efficient power management in various electronic systems.
The product is suitable for reflow soldering processes and meets international quality standards QS 9000, Pb RoHS, and ISO 9001. The operating temperature range from -55°C to 125°C further confirms its suitability for a wide range of industrial and commercial environments.
Compact surface mount design facilitates automated PCB assembly. Iron core construction provides improved magnetic performance. High current handling capability with 4.5 A maximum DC current. Low DC resistance minimizes power dissipation and heat generation.
Shielded to reduce electromagnetic interference. Complies with QS 9000, Pb RoHS, and ISO 9001 standards. Wide operating temperature range from -55°C to 125°C for durability in harsh conditions. Suitable for DC/DC converters in computing and power supply applications.
This Abracon surface mount inductor is an essential component for engineers seeking reliable and efficient power management solutions. Explore more Surface Mount Inductors and related electronic components to enhance your electronic design projects with EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this power inductor is 4.7 nH with a tolerance of ±20%.
This model has a maximum DC current rating of 4.5 A.
The dimensions of this inductor are 5.6 mm in length, 3 mm in height, and 3 mm in depth.
The maximum operating temperature for this inductor is 125°C.
Yes, this inductor is designed for reflow soldering processes.
The DC resistance of this power inductor is 65 mΩ, which helps to reduce power loss during high current operation.
This inductor complies with QS 9000, Pb RoHS, and ISO 9001 quality standards.
The core material used in this inductor's construction is iron, which enhances its magnetic performance.
This inductor comes in tape and reel packaging, which is suitable for automated assembly processes.
This inductor is designed for applications including DC/DC converters in notebooks, desktops, and servers.
The minimum operating temperature for this inductor is -55°C.
The shielded design of this inductor minimizes electromagnetic interference, making it suitable for sensitive circuits.
