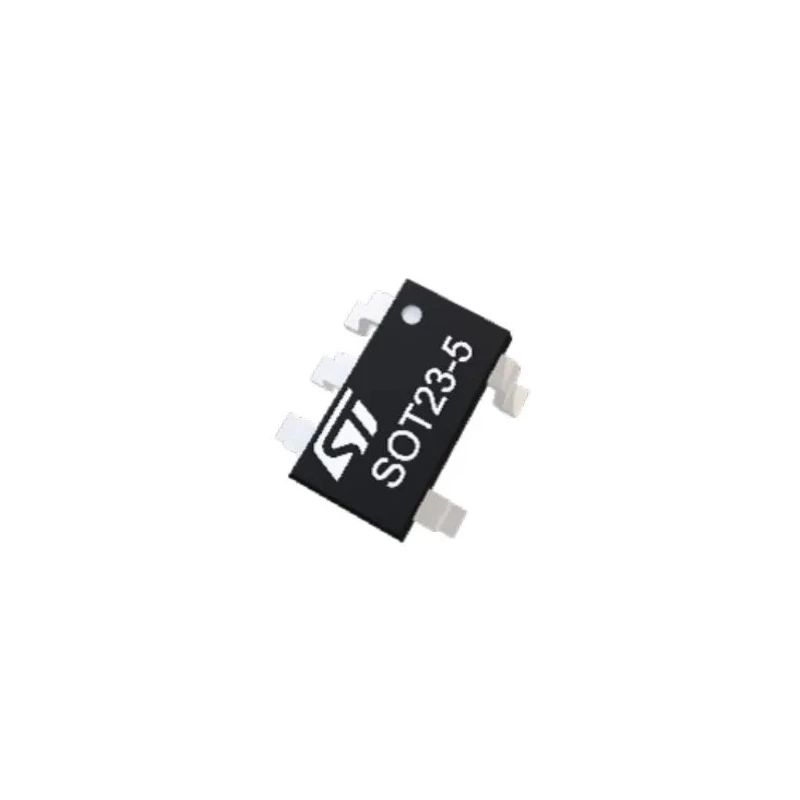

STMicroelectronics Operational Amplifier, 50 MHz, 5-Pin SOT-23, 2.7-5.5V Supply TSV791ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSV791ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSV791 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | ESDA-JS-001-2017 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 50MHz |
| Input Bias Current | 75 pA |
| Slew Rate | 30V/μs |
| Input Offset Current | 20 pA |
| Extended temperature range | - 40 °C to +125 °C |
Key Features
- Offers a gain bandwidth product of 50 MHz for high-frequency signal processing.
- Single channel device with 5 pins, suitable for surface mounting.
- Operates with supply voltage between 2.7 V and 5.5 V.
- Features a low input bias current of 75 pA ensuring high accuracy.
- Provides a slew rate of 30 V/μs for fast response.
- Supports extended operating temperature range from -40°C to 125°C.
- Compact SOT-23 package with dimensions 3 mm length, 1.75 mm width, and 1.45 mm height.
- Complies with automotive standards AEC-Q100 and AEC-Q3 for enhanced reliability.
Product Description
STMicroelectronics TSV791ILT is a precision operational amplifier designed for demanding electronic applications requiring high bandwidth and accuracy. It features a gain bandwidth product of 50 MHz and is unity gain stable, making it ideal for signal conditioning and amplification tasks.

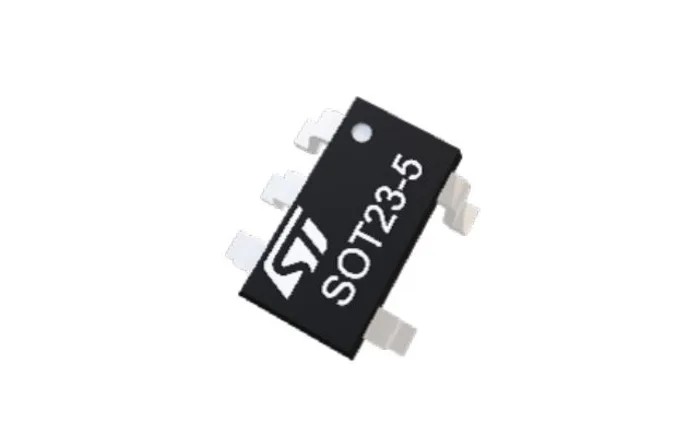

This device is housed in a compact 5-pin SOT-23 surface mount package, measuring 3 mm in length, 1.75 mm in width, and 1.45 mm in height. It operates on a wide supply voltage range from 2.7 V to 5.5 V, supporting diverse embedded and automotive circuits.
Its low input bias current of 75 pA and low input offset voltage of 50 μV ensure precise signal amplification even at small amplitude signals. The high slew rate of 30 V/μs enables rapid response to fast input changes.
Engineered for robustness, the TSV791ILT supports extended operating temperature ranges from -40°C to 125°C and meets stringent automotive standards AEC-Q100 and AEC-Q3. This makes it suitable for industrial and automotive electronic control systems.
Gain bandwidth product: 50 MHz for high-frequency amplification. 5-pin SOT-23 package enables compact board layouts. Low input bias current and offset voltage for accuracy. Wide supply voltage range (2.7 V to 5.5 V) supports varied applications.
Fast slew rate of 30 V/μs for signal integrity preservation. Extended operating temperature ensures reliable operation in harsh environments. Compliant with automotive quality standards AEC-Q100 and AEC-Q3. Ideal for signal conditioning, low-side current measurement, and A/D converter input buffering.
This operational amplifier is widely used in industrial, automotive, instrumentation, and communication equipment where precision and bandwidth are critical. Its compact size and automotive-grade reliability make it a versatile component for modern electronic designs.
Explore the full range of Operational Amplifiers at EnvMart to find solutions tailored for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TSV791ILT operational amplifier is 50 MHz, making it suitable for high-frequency signal processing applications.
This model operates with a supply voltage range between 2.7 V and 5.5 V, accommodating various embedded and automotive circuits.
The SOT-23 package of this operational amplifier measures 3 mm in length, 1.75 mm in width, and 1.45 mm in height.
It supports an extended operating temperature range from -40°C to 125°C, ensuring reliable performance in harsh environments.
The slew rate of this operational amplifier is 30 V/μs, allowing for rapid response to fast input changes.
This operational amplifier features a single channel configuration, making it suitable for various applications that require amplification.
The input bias current of the TSV791ILT is 75 pA, which contributes to its high accuracy in signal amplification.
It complies with automotive standards AEC-Q100 and AEC-Q3, ensuring enhanced reliability for automotive applications.
The input offset voltage is specified at 50 μV, which helps maintain precision in low amplitude signal amplification.
This operational amplifier is designed for surface mounting, which facilitates compact board layouts.
The input offset current is 20 pA, which is beneficial for maintaining signal integrity during amplification.
The country of origin for this operational amplifier is India.
