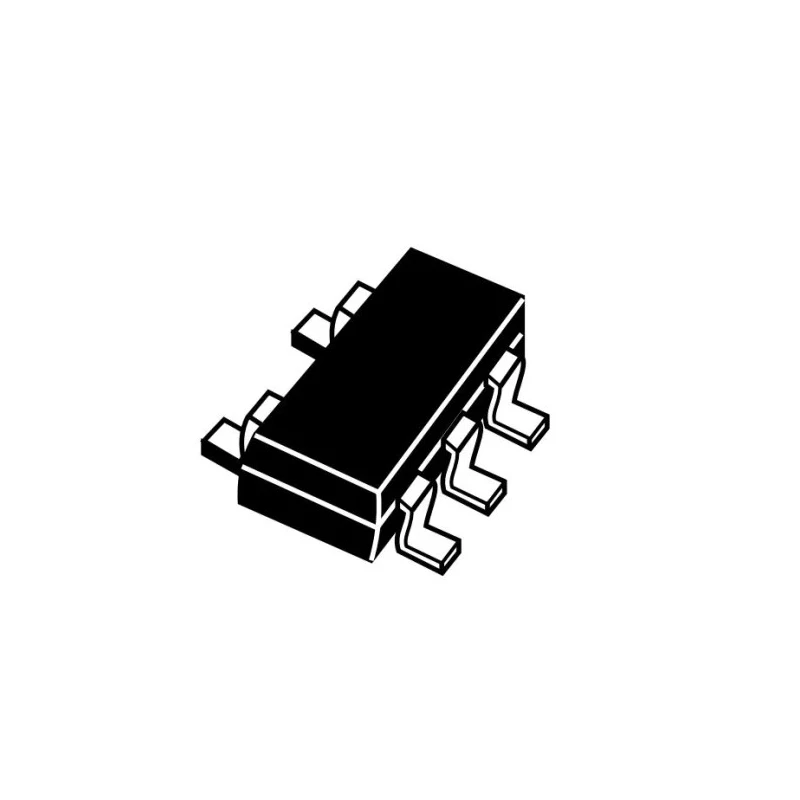

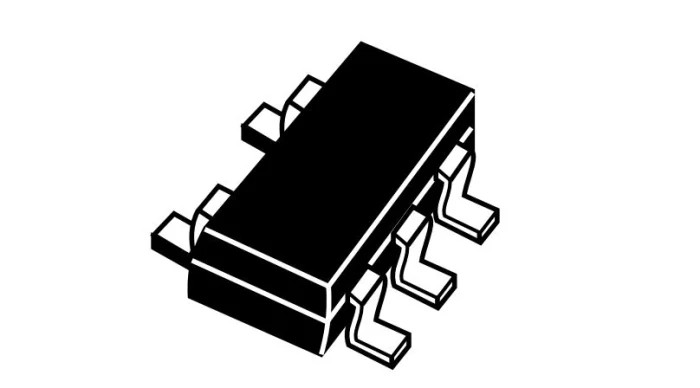

STMicroelectronics Operational Amplifier 22 MHz, 5-Pin Surface Mount SOT-23 Package TSB7191AIYLT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSB7191AIYLT |
| Width | 1.75mm |
| Mount Type | Surface |
| Low Noise | 12 nV/√Hz |
| Series | TSB7191A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | JEDEC, ANSI/ESD STM5.3.1 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q3, AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 22MHz |
| Input Bias Current | 0 nA |
| Slew Rate | 12V/μs |
| Input Offset Current | 10 nA |
| Extended temperature range | -40 °C to +125 °C |
Key Features
- Wide supply voltage range from 2.7 V to 36 V.
- Rail-to-rail input and output capability.
- Low input offset voltage up to 300 μV maximum at 25 °C.
- High slew rate of 12 V/μs for fast response.
- Automotive-grade quality with AEC-Q3 and AEC-Q100 standards.
- Stable operation with gain of +10/-9 and integrated EMI filter.
- Extended operating temperature range from -40 °C to +125 °C.
- Low noise performance of 12 nV/√Hz.
Product Description
STMicroelectronics TSB7191AIYLT is a high-performance operational amplifier featuring a 22 MHz gain bandwidth product packed in a compact 5-pin SOT-23 surface mount package. Designed to operate from single supply voltages ranging from 2.7 V up to 36 V or dual supplies from ±1.35 V to ±18 V, this device ensures versatility across a wide spectrum of industrial and automotive applications.
The amplifier exhibits rail-to-rail input and output stages, delivering maximum signal swing and precision with a low input offset voltage of 300 μV (max) at 25 °C. A high slew rate of 12 V/μs facilitates rapid signal changes, enhancing response times in control systems.
Meeting automotive quality standards AEC-Q3 and AEC-Q100, the TSB7191AIYLT supports operation in harsh temperature environments from -40 °C to +125 °C, making it suitable for automotive electronics, motor control, actuator driving, filters, and sensor signal conditioning including Hall effect and resistive transducers.
Additional features include an integrated EMI filter, low input bias current of 0 nA, and low noise density of 12 nV/√Hz, ensuring signal integrity in sensitive measurement and control circuits.
The device is JEDEC and ANSI/ESD STM5.3.1 approved, assuring compliance with industry standards for reliability and safety. Wide supply voltage range from 2.7 V to 36 V ensures application flexibility. Rail-to-rail input and output supports full signal swing.
Low offset voltage and input bias current enable precision amplification. Automotive-grade device with extended temperature range (-40 °C to +125 °C). High slew rate and low noise improve dynamic performance. Compact 5-pin SOT-23 package suitable for surface mounting and space constrained designs.
Compliance with JEDEC and ANSI/ESD standards guarantees durability. Integrated EMI filter enhances noise immunity for industrial environments.
This Operational Amplifier is ideal for use in electronic components manufacturing, semiconductor design, automotive electronics, industrial controls, HVAC systems, and other professional engineering applications. Explore more high-quality semiconductor products to optimize your electronic designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 22 MHz.
It operates with a supply voltage range from 2.7 V to 36 V.
This model has a height of 1.45 mm, a length of 3 mm, and a width of 1.75 mm.
The maximum operating temperature is 125 °C.
It is packaged in a 5-pin SOT-23 surface mount package.
The input offset voltage is up to 300 μV maximum at 25 °C.
It meets the automotive quality standards AEC-Q3 and AEC-Q100.
The slew rate is 12 V/μs, allowing for fast response times.
The input bias current is 0 nA, which helps in maintaining signal integrity.
It has a low noise density of 12 nV/√Hz.
The minimum operating temperature is -40 °C.
It is suitable for automotive electronics, motor control, actuator driving, and sensor signal conditioning.
