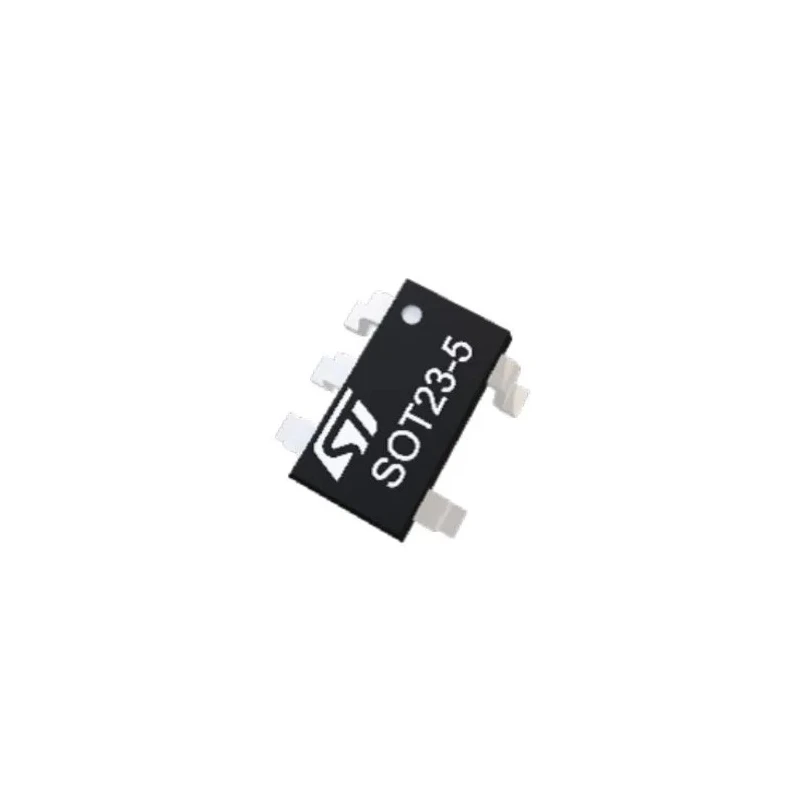

STMicroelectronics Operational Amplifier 50 MHz Gain Bandwidth, 5-Pin SOT-23 Package TSV791ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSV791ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSV791 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | ESDA-JS-001-2017 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100, AEC-Q3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 50MHz |
| Input Bias Current | 75 pA |
| Slew Rate | 30V/μs |
| Input Offset Current | 20 pA |
| Extended temperature range | - 40 °C to +125 °C |
Key Features
- Single-channel operational amplifier with unity-gain stability.
- Wide supply voltage range from 2.7 V to 5.5 V.
- High slew rate of 30 V/μs for fast signal response.
- Rail-to-rail input and output stages for full signal swing.
- Extends operating temperature range from -40 °C to 125 °C.
- Low input bias current of 75 pA and offset current of 20 pA for precision.
- Compact SOT-23 5-pin package with dimensions 3 mm x 1.75 mm x 1.45 mm.
- Automotive grade with AEC-Q100 and AEC-Q3 certifications.
Product Description
STMicroelectronics TSV791ILT operational amplifier is a high-performance single-channel device designed for industrial and automotive applications. Featuring a 50 MHz gain bandwidth product and a 30 V/μs slew rate, it supports fast and accurate signal amplification. The amplifier offers rail-to-rail input and output stages to maximize dynamic range within a single supply voltage of 2.7 V to 5.5 V.
Housed in a compact 5-pin SOT-23 surface mount package measuring 3 mm in length, 1.75 mm in width, and 1.45 mm in height, the TSV791ILT is built for space-constrained circuit boards. It operates reliably over an extended temperature range from -40 °C to 125 °C, making it suitable for harsh environments.
Precision characteristics include a low input bias current of 75 pA, input offset current of 20 pA, and input offset voltage of 50 μV, ensuring minimal error in measurement and signal integrity. The device withstands output capacitive loads up to 1 nF, with robustness for 22 pF loads, facilitating ease of use as a buffer for A/D converters.
This operational amplifier is designed with automotive standards AEC-Q100 and AEC-Q3, ensuring compliance and reliability in automotive electronic systems. Its electrostatic discharge protection meets ESDA-JS-001-2017, enhancing durability during manufacturing and handling.
Common industrial use cases include low-side current sensing, high-frequency signal conditioning, and precise analog signal processing in instrumentation, automotive electronics, consumer appliances, and telecommunications. This device leverages advanced semiconductor design to offer accuracy virtually unaffected by noise and supports diverse applications requiring stable and sensitive amplification.
Single-channel operational amplifier with unity-gain stability. Wide supply voltage range from 2.7 V to 5.5 V. High slew rate of 30 V/μs for fast signal response. Rail-to-rail input and output stages for full signal swing.
Extended temperature range from -40 °C to 125 °C. Low input bias and offset currents for precise measurement. Compact 5-Pin SOT-23 package dimensions 3 mm x 1.75 mm x 1.45 mm. Automotive grade with AEC-Q100 and AEC-Q3 certification.
ESDA-JS-001-2017 compliant electrostatic discharge protection. Perfect for low-side current measurement and high-frequency signal applications. Explore our extensive range of Operational Amplifiers for versatile applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 50 MHz.
It operates within a supply voltage range of 2.7 V to 5.5 V.
The maximum operating temperature for this model is 125 °C.
It has a high slew rate of 30 V/μs, allowing for fast signal response.
The dimensions of the SOT-23 package are 3 mm in length, 1.75 mm in width, and 1.45 mm in height.
The input bias current for this operational amplifier is 75 pA.
This operational amplifier is compliant with automotive standards AEC-Q100 and AEC-Q3, as well as ESDA-JS-001-2017 for electrostatic discharge protection.
The input offset current is specified at 20 pA.
It is suitable for low-side current sensing, high-frequency signal conditioning, and precise analog signal processing in various fields such as automotive electronics and telecommunications.
The minimum operating temperature for this operational amplifier is -40 °C.
This model features a single channel design.
It can withstand output capacitive loads up to 1 nF, with robustness for 22 pF loads.
