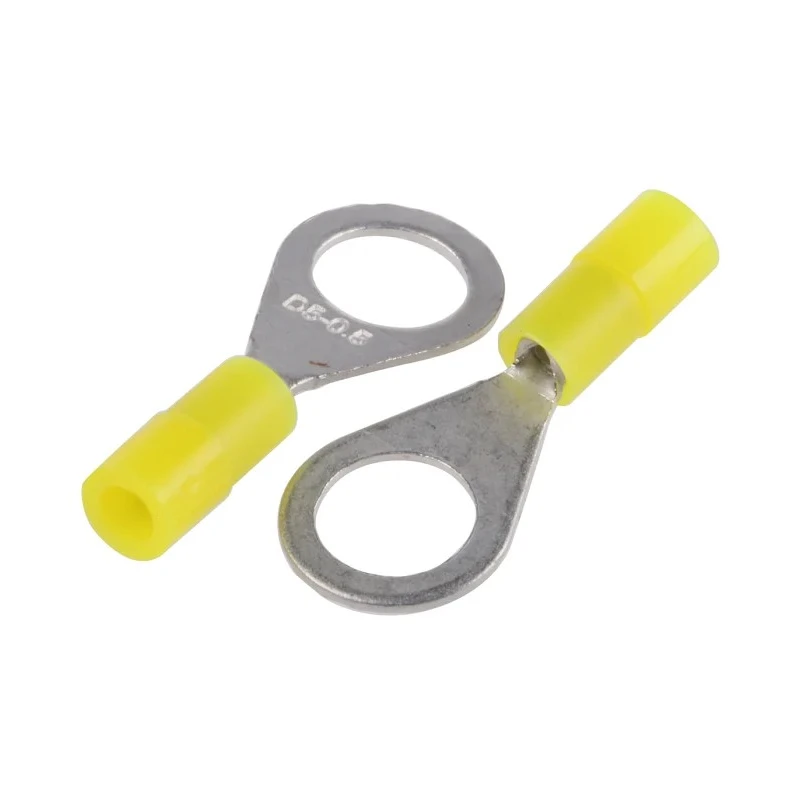

RS PRO Insulated Ring Terminal M5 Stud Size 26 AWG to 22 AWG Wire Size Yellow Nylon Insulation 239-4149

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Insulated Ring Terminal M5 Stud Size 26 AWG to 22 AWG Wire Size Yellow Nylon Insulation 239-4149

Name: RS PRO Insulated Ring Terminal M5 Stud Size 26 AWG to 22 AWG Wire Size Yellow Nylon Insulation 239-4149
Brand: RS PRO
SKU: 176630
Price: 0.19 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Yellow
THICKNESS	0.5mm
Model	239-4149
Insulation	Insulated
Overall Length	20mm
Contact Material	Copper
Series	RS PRO
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Outer Ring Diameter	8mm
Inner Ring Diameter	5.3mm
Stud Size	M5

Key Features

Constructed from highly conductive copper with tin plating for corrosion resistance.
Features vinyl insulation for electrical protection and quick size identification.
Expanded insulation entry simplifies wire insertion and crimping.
Designed for reliable connections to studs or posts in electrical components.
Suitable for industrial, automotive, communication, and domestic electrical wiring applications.
Operates reliably in temperatures ranging from -40°C to 105°C.
Colour-coded yellow insulation corresponds to wire sizes between 26 AWG and 22 AWG.
Made in Taiwan, Province of China, ensuring quality manufacturing standards.

Product Description

RS PRO 239-4149 insulated ring terminal is a high-quality electrical connector designed to join wires securely to studs or posts. It is made from copper with a tin plating which ensures excellent electrical conductivity and resistance to corrosion, making it a durable component for electrical connections.

The terminal features a yellow nylon vinyl insulation that provides electrical insulation and mechanical protection to the connection. The insulation aids quick identification of wire size and has an expanded entry to facilitate easy insertion of wires before crimping.

The ring terminal accommodates wire sizes from 26 AWG to 22 AWG and fits an M5 stud size, with an overall length of 20mm, outer ring diameter of 8mm, and inner ring diameter of 5.3mm. Its thickness is 0.5mm, suited for a wide range of wiring applications.

Operating reliably in temperatures from -40°C up to 105°C, this terminal is suitable for various industrial, commercial, automotive, and communication equipment wiring. Typical applications include industrial machine wiring, power supplies, communication devices, and domestic appliances.

Its robust copper and tin-plated construction ensures a secure, corrosion-resistant electrical connection that can withstand challenging environments. The yellow vinyl insulation aids in compliance with wiring colour codes and simplifies maintenance.

Constructed from copper with tin plating for durability and conductivity. Vinyl insulation provides electrical safety and quick size identification. Suitable for wire sizes 26 AWG to 22 AWG and M5 stud compatibility. Perfect for wiring in industrial control systems, automotive, and communication equipment.

Designed to operate reliably from -40°C to 105°C. Made in Taiwan, Province of China, ensuring consistent quality. Explore the wide range of RS PRO electrical components and Ring Terminals available at EnvMart for all your industrial, commercial, and automotive wiring needs.
