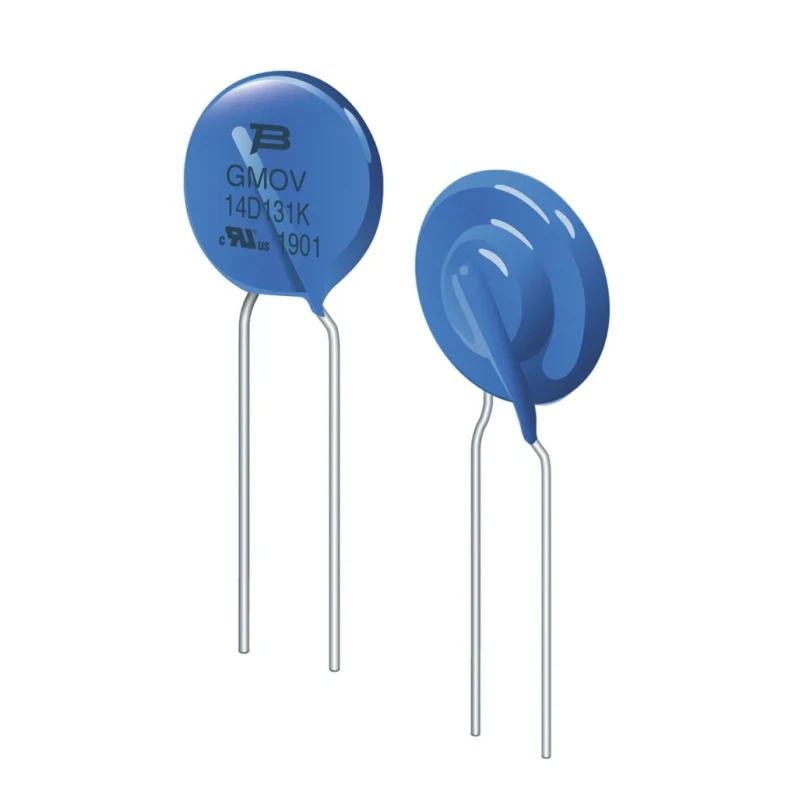

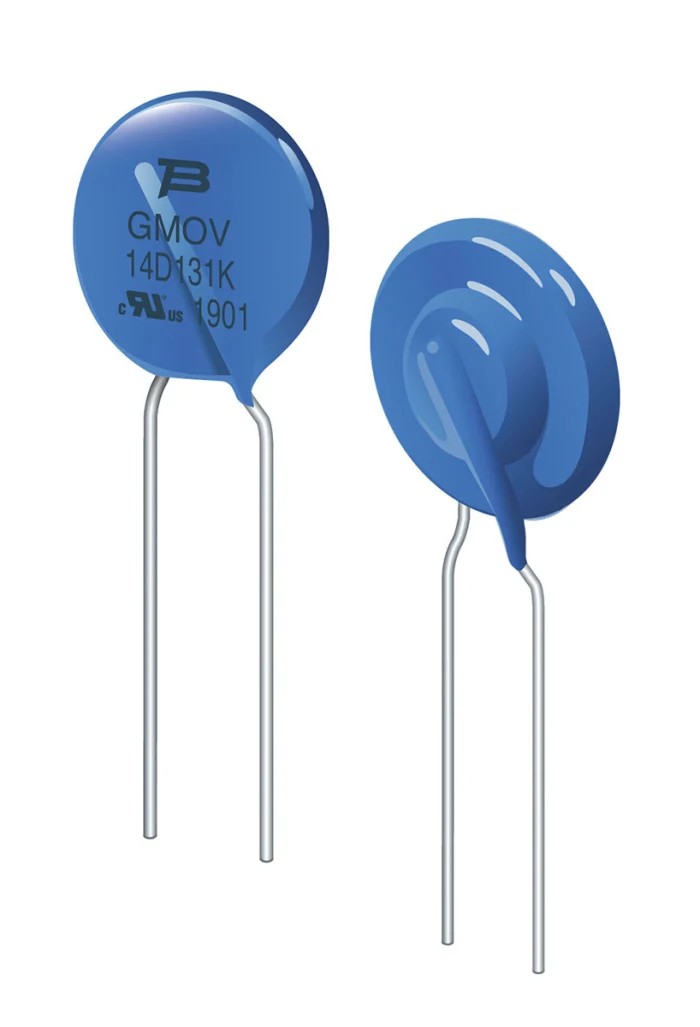

Bourns GMOV Varistor 4 pF Capacitance 140 Vrms, 180 V dc Varistor Voltage 10000 A Clamping Current 875 V GMOV-20D141K

Bourns GMOV-20D141K Varistor is an advanced electronic component providing robust surge protection in electronic and electrical systems. Featuring a low capacitance of 4 pF, it ensures minimal impact on signal integrity while delivering reliable protection against voltage spikes.

The varistor voltage is rated at 140 Vrms and 180 V dc, with a high clamping current capacity of 10000 A and clamping voltage set at 875 V. This makes it highly effective in safeguarding sensitive circuitry from transient surges.

Its maximum AC voltage is 320 V and maximum DC voltage is 415 V, allowing it to be deployed in diverse applications including industrial electronics, power supplies, and telecommunications.

Designed for bidirectional protection with a hybrid low leakage technology, it operates efficiently across a wide temperature range from -40°C to 85°C. The component features a compact 23 mm diameter and 9 mm thickness, facilitating easy integration onto printed circuit boards with a 10 mm lead pitch.

This varistor meets UL 1449 4th Edition standards, ensuring compliance with recognized safety and performance requirements. Its energy rating of 180 J enables the device to absorb significant surge energy, enhancing system reliability.

Manufactured in China, the GMOV-20D141K model reflects Bourns’ commitment to quality and innovation in surge protection components.

Ideal for use in industrial, commercial, and electronic applications, this varistor effectively protects electrical equipment from damage due to voltage transients, thereby extending their operational life and maintaining performance stability.

Explore a wide range of electronic components and Varistors on EnvMart for your surge protection needs. Designed for bidirectional protection with low leakage current. Capacitance rated at 4 pF to minimize interference in circuits.

Maximum AC voltage of 320 V and DC voltage up to 415 V for versatile applications. Operating temperature range from -40°C to 85°C ensuring durability in harsh environments. Complies with UL 1449 4th Edition standards for surge protection devices.

Compact 23 mm diameter and 9 mm thickness for easy PCB mounting. Lead pitch of 10 mm suitable for standard circuit boards. Energy rating of 180 J supports handling of transient energy surges effectively. Manufactured in China with reliable quality craftsmanship.
