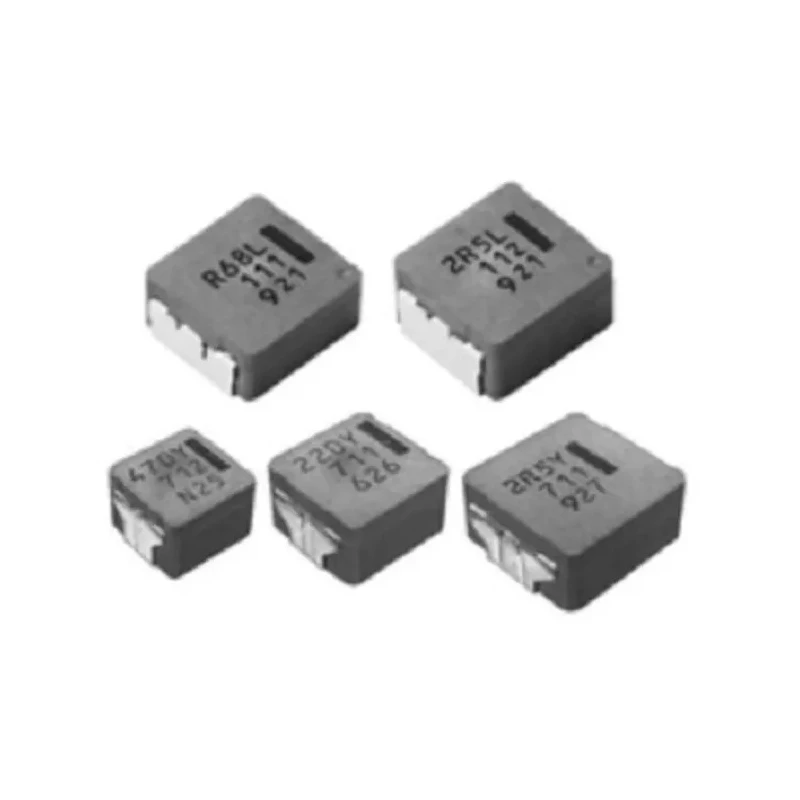

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 680nH ±20% 31.5A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 10.9mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 31.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.93mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a metal composite core for high heat and vibration resistance.
- Surface mount package with tape and reel packaging for efficient assembly.
- Operates reliably between -40°C and 150°C.
- Low maximum DC resistance of 1.93mΩ ensures energy efficiency.
- Complies with RoHS and meets automotive standard AEC-Q200.
- Shielded construction reduces emitted noise for sensitive electronic circuits.
- Wirewound inductor construction with 2 pins for PCB mounting.
- Max self-resonant frequency is 100kHz suited for various high-frequency applications.
Product Description
Panasonic ETQP5M shielded wirewound Surface Mount Inductor with metal composite core provides stable inductance of 680nH ±20% and can handle a maximum DC current of 31.5A. Designed for surface mounting, this inductor comes in a tape and reel package for streamlined PCB assembly processes.
Constructed using a metal composite core, it offers excellent heat resistance up to 150°C and vibration resistance owing to its integral construction. The device supports automotive applications compliant with the AEC-Q200 standard and meets RoHS environmental directives. Its shielded design minimizes electromagnetic interference, making it ideal for noise filtering in sensitive electronic circuits.
With low maximum DC resistance of 1.93mΩ, it ensures minimal power loss and efficient operation. The inductor’s dimensions are compact at 10.9mm length, 5mm height, and 10mm depth, featuring two pins for secure surface mounting. The maximum self-resonant frequency of 100kHz allows suitability for various industrial, automotive, and consumer electronics applications requiring stable inductance and current handling.
This moulded wirewound inductor is engineered to maintain inductance stability under high bias current and thermal conditions, delivering low audible noise and enhanced durability. It supports diverse uses in industrial electronics, power supplies, automotive systems, and high-temperature operation environments.
Features a metal composite core for high heat and vibration resistance. Surface mount package with tape and reel packaging for efficient assembly. Operates reliably between -40°C and 150°C. Low maximum DC resistance of 1.93mΩ ensures energy efficiency.
Complies with RoHS and meets automotive standard AEC-Q200. Shielded construction reduces emitted noise for sensitive electronic circuits. Compact dimensions: length 10.9mm, height 5mm, depth 10mm. Wirewound inductor construction with 2 pins for PCB mounting.
Max self-resonant frequency is 100kHz suited for various high-frequency applications. Moulded for mechanical robustness and long-term reliability. Explore more high-quality inductors and electronic components on EnvMart for advanced industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 680nH with a tolerance of ±20%.
It can handle a maximum DC current of 31.5A.
The dimensions of this inductor are 10.9mm in length, 5mm in height, and 10mm in depth.
The maximum operating temperature is 150°C.
It features a metal composite core, which provides high heat and vibration resistance.
The maximum self-resonant frequency is 100kHz, suitable for various high-frequency applications.
The maximum DC resistance is 1.93mΩ, ensuring energy efficiency.
It comes in a tape and reel packaging for efficient surface mount assembly.
It complies with the AEC-Q200 automotive standard.
It meets RoHS environmental directives.
This inductor has 2 pins for secure surface mounting on PCBs.
It utilizes a wirewound construction, which contributes to its stability and performance.
