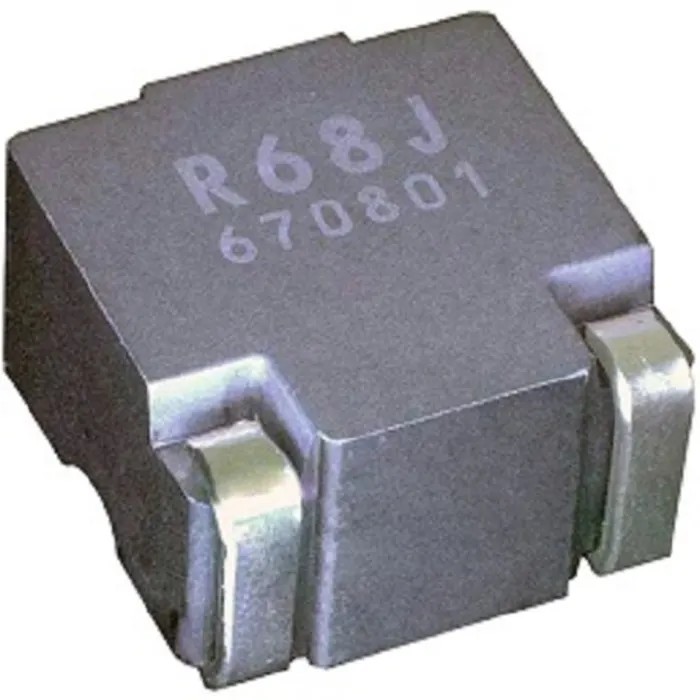

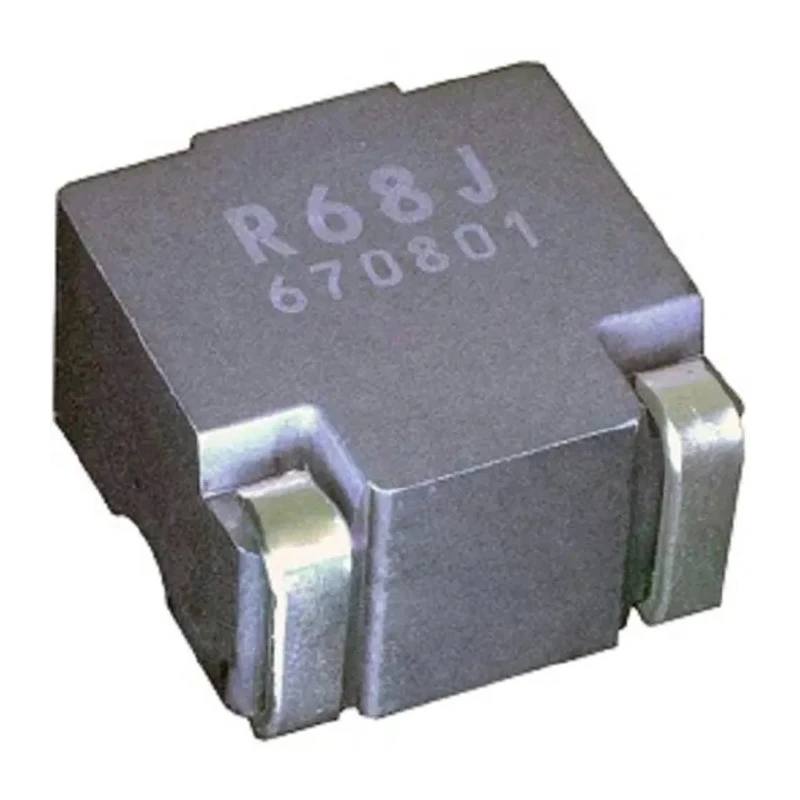

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 330 nH ±20% 53.5 A Idc ETQP8M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 8mm |
| Length | 12.6mm |
| Model | ETQP8M |
| Depth | 13.2mm |
| Packaging | Tape & Reel |
| Series | ETQP8M |
| Maximum Operating Temperature | 160°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 330nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 53.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.77mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core for durability and heat resistance.
- Operates reliably from -40°C up to 160°C maximum temperature.
- Features shielding and low audible noise suitable for noise filtering in high temperature environments.
- Provides high vibration resistance due to integral construction ensuring inductance stability.
- Supplied in tape & reel packaging for ease of surface mount assembly.
- Complies with RoHS and automotive standard AEC-Q200 for quality assurance.
- Compact dimensions of 12.6 mm length, 8 mm height, and 13.2 mm depth ensure versatile PCB integration.
- Maximum DC resistance is 0.77 mΩ, enhancing electrical efficiency.
Product Description
Panasonic ETQP8M Shielded Wirewound Surface Mount Inductor with a Metal Composite Core provides robust performance with a nominal inductance of 330 nH and an inductance tolerance of ±20%. Designed for high reliability and durability, this inductor supports a maximum DC current of 53.5 A with a low DC resistance of 0.77 mΩ. It can operate over a broad temperature range from -40°C to 160°C, including self-heating conditions, making it suitable for demanding industrial and automotive electronics.
This component features a shielded construction and wirewound inductor design on a metal composite core, enhancing magnetic stability and minimizing electromagnetic interference. The integral construction delivers excellent vibration resistance and low audible noise, key for noise filtering applications in various drive circuits exposed to harsh environments.
The ETQP8M series is automotive grade, conforming to the AEC-Q200 standard and RoHS directives for environmental compliance and safety. Its surface mount termination style allows efficient automated assembly, delivered in reliable tape & reel packaging for improved manufacturing throughput.
With compact dimensions of 12.6 mm length, 8 mm height, and 13.2 mm depth, this inductor is ideal for PCB integration in industrial, automotive, power supply, and noise suppression circuits. The maximum self-resonant frequency of 100 kHz enhances its suitability for various frequency applications.
Metal composite core provides high heat resistance and mechanical robustness. Wirewound construction ensures stable inductance and current handling. Shielded design reduces electromagnetic interference in sensitive circuits.
Compact size and low resistance enable integration in compact electronic devices. Compliance with automotive standards supports use in vehicle electronics. Suitable for industrial, automotive, HVAC, manufacturing, and electronic instrumentation.
For further detailed specifications and CAD models, you may consult Panasonic datasheets and design resources. This product supports high-performance engineering requirements and is an essential component in modern electronic assemblies.
Explore more products like the Panasonic ETQP8M and other Surface Mount Inductors within our comprehensive Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 330 nH with an inductance tolerance of ±20%.
It can handle a maximum DC current of 53.5 A.
The dimensions are 12.6 mm in length, 8 mm in height, and 13.2 mm in depth.
The maximum operating temperature is 160°C.
It is constructed with a metal composite core, which provides durability and heat resistance.
This inductor is supplied in tape & reel packaging, facilitating surface mount assembly.
The maximum DC resistance is 0.77 mΩ, which enhances electrical efficiency.
It complies with the AEC-Q200 automotive standard, ensuring quality for automotive applications.
The maximum self-resonant frequency is 100 kHz.
It features a wirewound construction, which ensures stable inductance and current handling.
The minimum operating temperature is -40°C.
It is suitable for industrial, automotive, HVAC, manufacturing, and electronic instrumentation applications.
