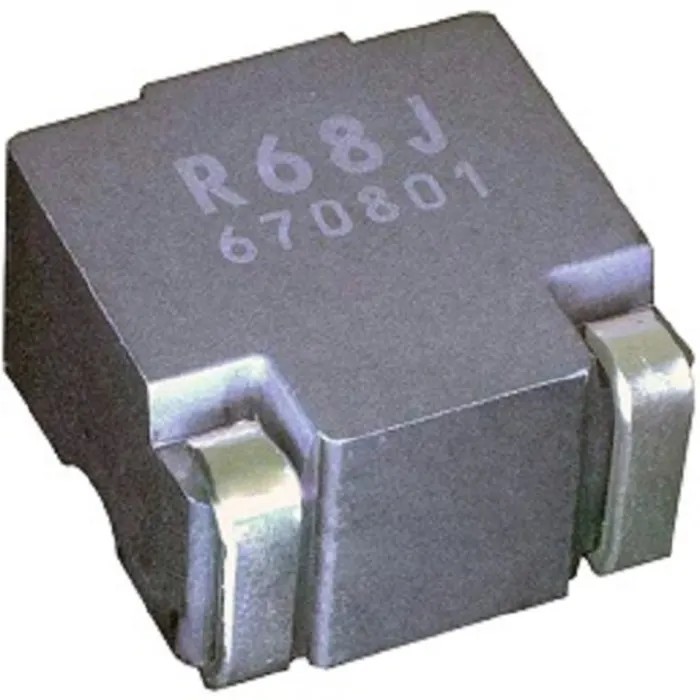

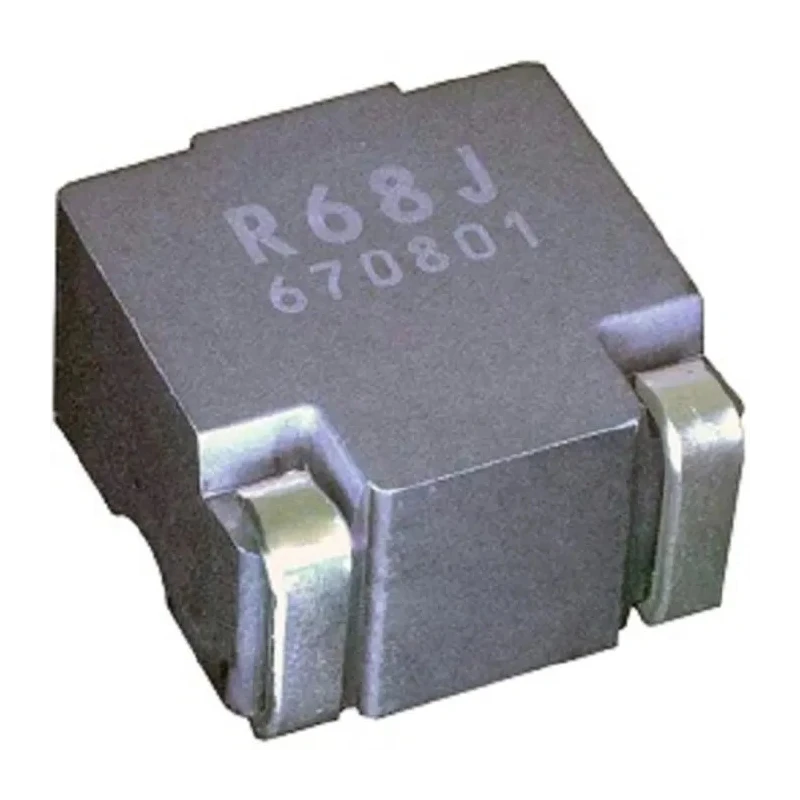

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 680nH ±20% 42.6A Idc ETQP8M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 8mm |
| Length | 12.6mm |
| Model | ETQP8M |
| Depth | 13.2mm |
| Packaging | Tape & Reel |
| Series | ETQP8M |
| Maximum Operating Temperature | 160°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 42.6A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.21mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a metal composite core enhancing heat resistance and reliability.
- Operates at temperatures ranging from -40°C to 160°C for high temperature resilience.
- Constructed with shielded wirewound design minimizing electromagnetic interference.
- Complies with AEC-Q200 automotive standards ensuring quality and durability.
- Packaged in tape and reel format suitable for automated PCB insertion.
- Maximum DC resistance is 1.21 milliohms providing efficient current conduction.
- Designed with 2 pins and surface mount termination style for standard electronic assembly.
- Supports a maximum self-resonant frequency of 100 kHz for effective signal handling.
Product Description
Panasonic ETQP8M shielded wirewound surface mount inductor with a metal composite core is engineered to deliver robust performance in demanding electronic applications requiring stable inductance up to 680nH ±20% tolerance. Its 42.6 ampere maximum DC current capability combined with a low resistance of 1.21 milliohms highlights its efficiency and suitability for high current circuits.
Designed to operate reliably between -40°C to 160°C, this inductor complies with stringent automotive standards (AEC-Q200), ensuring durability under harsh environmental conditions. The robust shielded wirewound construction minimizes electromagnetic interference, making it ideal for noise-sensitive power and signal circuits.
Packaged in tape and reel format, the ETQP8M supports high-volume production with easy automated placement. Its compact dimensions of 12.6 mm length, 8 mm height, and 13.2 mm depth make it suitable for densely packed PCB layouts. The metal composite core further enhances thermal reliability and vibration resistance, critical for automotive and industrial electronics.
This Surface Mount Inductor features 2 pins with standard surface mount termination style, facilitating seamless integration into electronic assemblies requiring high-frequency filtering and noise suppression. The maximum self-resonant frequency of 100 kHz enables stable operation in a broad range of applications including power converters, automotive electronics, and noise filtering circuits.
Features a metal composite core for superior heat and vibration resistance. High temperature operation up to 160°C supports demanding industrial usage. Shielded construction minimizes noise for sensitive electronic environments.
Complies with AEC-Q200 automotive standard for reliability. Packaging includes tape and reel suitable for automated assembly. Compact physical dimensions support space-constrained PCB designs. Low DC resistance optimizes circuit efficiency at high currents.
Wirewound construction ensures durability and inductance stability.
This Panasonic ETQP8M inductor is an excellent choice for industrial, automotive, manufacturing, and electronic component applications where high current, thermal stability, and electromagnetic compatibility are critical.
Explore more Panasonic inductors and electronic components in our Electronics & Electricals category at EnvMart for reliable, quality solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 680nH with a tolerance of ±20%.
It can handle a maximum DC current of 42.6A.
The inductor operates reliably between -40°C and 160°C.
The maximum DC resistance is 1.21 milliohms, which contributes to efficient current conduction.
The maximum self-resonant frequency is 100 kHz, allowing effective signal handling.
It features a metal composite core, which enhances heat resistance and reliability.
It is packaged in tape and reel format, suitable for automated PCB insertion.
The inductor is constructed using a shielded wirewound design, which minimizes electromagnetic interference.
This model has 2 pins with a surface mount termination style.
It complies with AEC-Q200 automotive standards, ensuring quality and durability for automotive applications.
The dimensions are 12.6 mm in length, 8 mm in height, and 13.2 mm in depth.
It is suitable for applications including power converters, automotive electronics, and noise filtering circuits.
