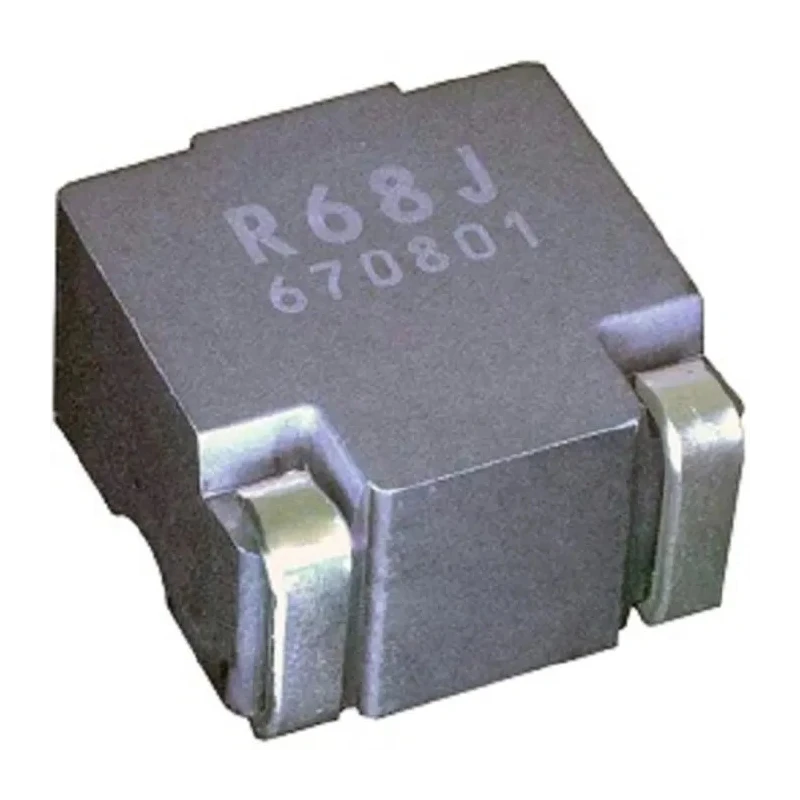

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 680 nH ±20% 42.6 A Idc ETQP8M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 8mm |
| Length | 12.6mm |
| Model | ETQP8M |
| Depth | 13.2mm |
| Packaging | Tape & Reel |
| Series | ETQP8M |
| Maximum Operating Temperature | 160°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 42.6A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.21mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Built with metal composite core ensuring high heat resistance and reliability.
- Features a shielded design to reduce electromagnetic interference.
- Capable of operation up to 160°C temperature.
- Low DC resistance of 1.21 mΩ for efficient current handling.
- Compact surface mount package measuring 12.6 mm length, 8 mm height, and 13.2 mm depth.
- Compliant with automotive standard AEC-Q200 for robust applications.
- Supports maximum self-resonant frequency of 100 kHz.
- Provided in tape & reel packaging designed for automated PCB assembly.
Product Description
Panasonic ETQP8M shielded wirewound surface mount inductor with a metal composite core offers an inductance of 680 nH ±20% and is capable of carrying a maximum DC current of 42.6 A. This power inductor features a surface mount package design with a compact size of 12.6 mm length, 8 mm height, and 13.2 mm depth. The metal composite core provides exceptional heat resistance and reliability, making it suitable for high temperature environments up to 160°C. Its shielded construction minimizes electromagnetic interference, enhancing circuit performance.
The ETQP8M series complies with the automotive industry standard AEC-Q200, ensuring durability and quality for automotive electronics and other demanding applications. The wirewound construction delivers excellent inductance stability and vibration resistance. Its low DC resistance of 1.21 mΩ reduces energy loss and improves efficiency in electrical circuits.
This inductor supports a maximum self-resonant frequency of 100 kHz and is supplied in tape and reel packaging for streamlined surface mount technology assembly processes. It is ideal for noise filtering and other drive circuitry applications requiring high temperature operation and peak current capacity.
High heat resistance metal composite core construction. Shielded design for reduced electromagnetic interference. Operation up to 160°C temperature including self-generated heat. Low DC resistance for efficient current flow.
Compact surface mount package suitable for automated assembly. Complies with AEC-Q200 automotive standards. Wirewound construction ensures inductance stability and vibration resistance. Supports 680 nH inductance with ±20% tolerance.
Maximum DC current rating of 42.6 A. Maximum self-resonant frequency of 100 kHz. Ideal for noise filtering in high temperature and high current circuits.
These inductors are widely used in industrial, automotive, electronic manufacturing, power supply, and telecommunications sectors requiring reliable, high-performance surface mount inductors.
Explore more Panasonic Surface Mount Inductors and related components within EnvMart's Electronics & Electricals category to find suitable parts for your projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 680 nH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 42.6 A.
It can operate at a maximum temperature of 160°C.
The inductor is built with a metal composite core, providing high heat resistance and reliability.
The dimensions of the package are 12.6 mm in length, 8 mm in height, and 13.2 mm in depth.
It supports a maximum self-resonant frequency of 100 kHz.
The DC resistance is low at 1.21 mΩ, which helps in efficient current handling.
Yes, it complies with the automotive standard AEC-Q200 and is also RoHS compliant.
It features a wirewound construction for excellent inductance stability and vibration resistance.
It is provided in tape and reel packaging, designed for automated PCB assembly.
The operating temperature range is from -40°C to 160°C.
This inductor is suitable for applications in industrial, automotive, electronic manufacturing, power supply, and telecommunications sectors.
