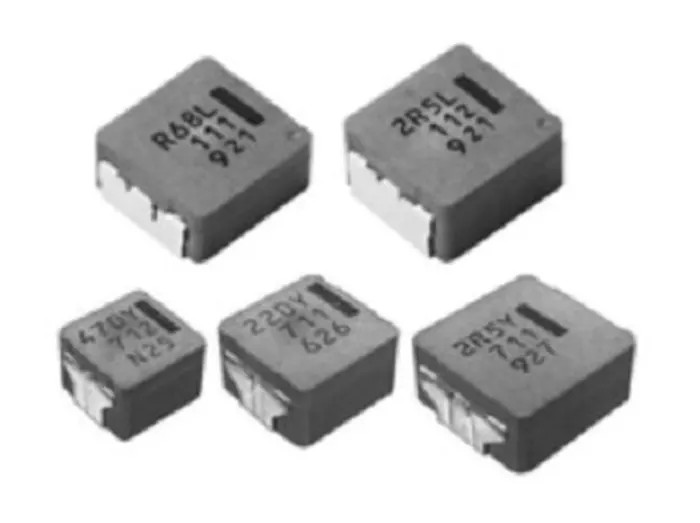

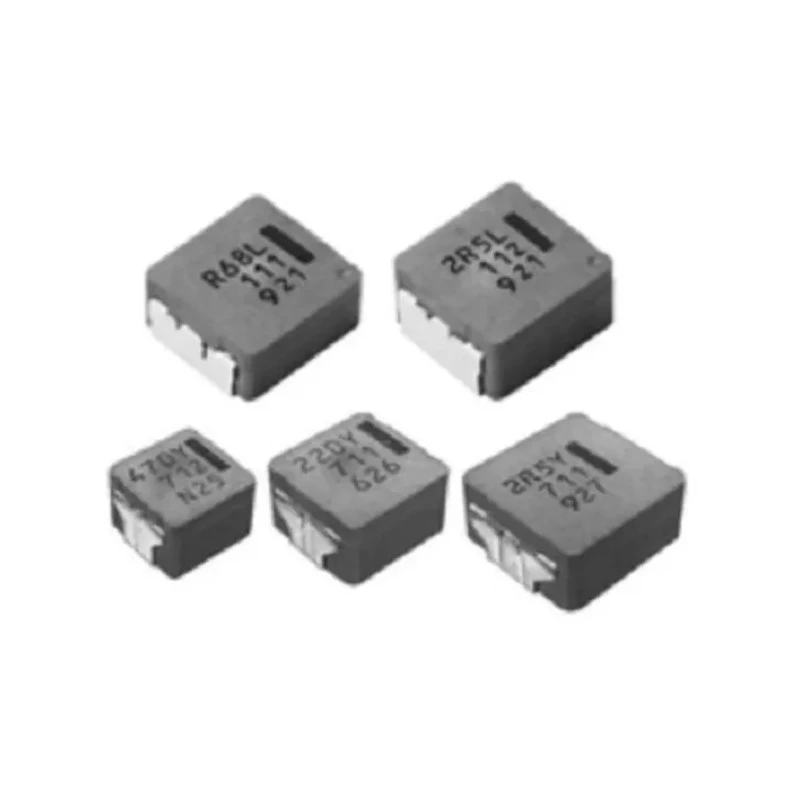

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 680nH ±20% 31.5A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 10.9mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 31.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.93mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed with a metal composite core for high heat resistance and reliability.
- Features a shielded construction to minimize electromagnetic interference.
- Maximum DC resistance of 1.93 milliohms ensuring efficient current flow.
- Operates reliably within a temperature range of -40°C to 150°C.
- Constructed as a wirewound surface mount inductor with 2 pins.
- Complies with RoHS and automotive AEC-Q200 standards.
- Equipped with a tape & reel packaging for automated insertion and production efficiency.
- Maximum self resonant frequency of 100kHz suitable for noise filtering applications.
Product Description
Panasonic ETQP5M Shielded Wirewound Surface Mount Inductor with Metal Composite Core provides an inductance of 680nH ±20% tolerance and handles a maximum DC current of 31.5A. This surface mount inductor is designed to operate under extreme conditions with a temperature range from -40°C to 150°C, making it suitable for high-temperature industrial and automotive applications.
The metal composite core construction offers outstanding heat resistance, high reliability, and excellent vibration resistance due to its integral construction. Its shielded design ensures reduced electromagnetic interference, which is critical in sensitive electronic circuits.
With a maximum DC resistance of just 1.93mΩ, this wirewound inductor provides efficient current conduction while maintaining stability. The package includes tape & reel supply, ideal for automated manufacturing environments, improving production efficiency.
This component complies with RoHS directives and meets automotive industry standard AEC-Q200, highlighting its suitability for automotive electronic systems requiring durability and performance.
Metal composite core construction for high reliability and heat resistance. Shielded design reduces electromagnetic interference. Low DC resistance of 1.93mΩ enhances energy efficiency. Operating temperature from -40°C to 150°C for harsh environments.
Compliance with RoHS and automotive AEC-Q200 standard. Tape & reel packaging simplifies automated assembly. Compact size for versatile mounting in electronic devices. Robust wirewound construction enhances durability. Supports applications requiring noise filtering and high peak current.
Low audible noise and stable inductance performance at high bias currents.
This Panasonic shielded wirewound Surface Mount Inductor is widely applicable in industrial, automotive, electronic circuitry, and PCB assembly operations. Its high performance and reliability make it a preferred choice for power and signal conditioning equipment. Explore more about Panasonic inductors and other electronic components on EnvMart for dependable and advanced solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 680nH with a tolerance of ±20%.
It can handle a maximum DC current of 31.5A.
This unit operates reliably within a temperature range of -40°C to 150°C.
The maximum DC resistance is 1.93 milliohms, which ensures efficient current flow.
It features a metal composite core, providing high heat resistance and reliability.
The maximum self-resonant frequency is 100kHz, suitable for noise filtering applications.
It is supplied in tape & reel packaging, facilitating automated insertion and production efficiency.
It complies with RoHS directives and meets the automotive AEC-Q200 standard.
The dimensions are 10.9mm in length, 10mm in depth, and 5mm in height.
This model has a pin count of 2.
It is constructed as a wirewound surface mount inductor.
