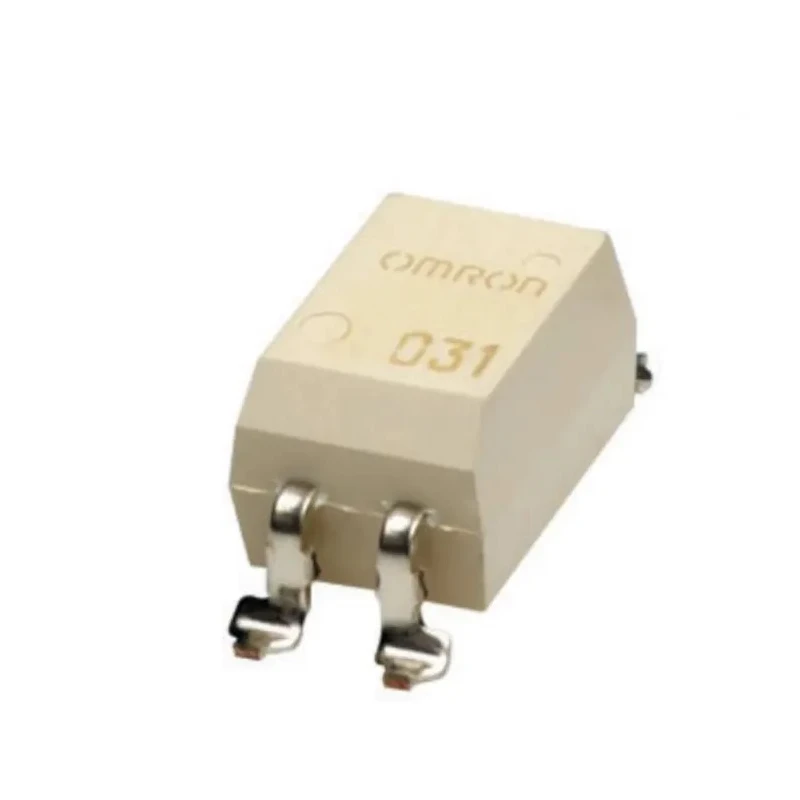

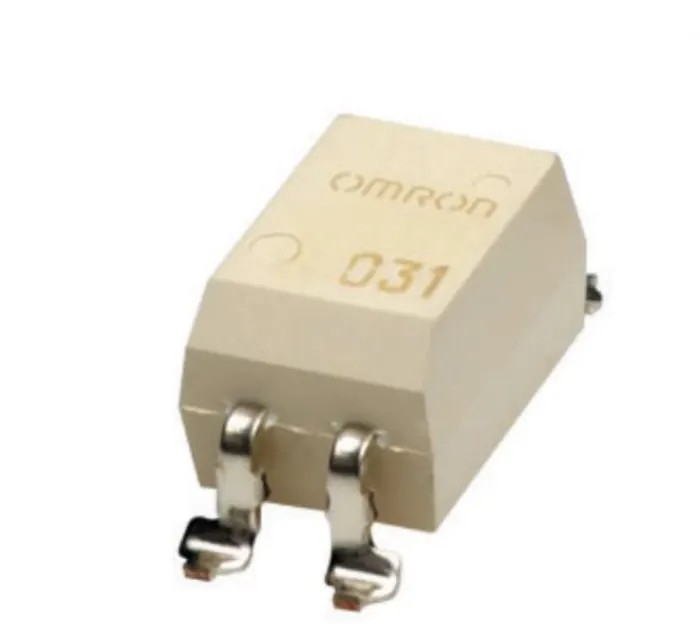

Omron Solid State Relay Surface Mount 3 A Load 60 V Load MOSFET Output G3VM

Omron G3VM-61DR1(TR05) Solid State Relay is a compact and robust surface mount MOSFET relay capable of switching loads up to 3 amperes at 60 volts. It integrates advanced MOSFET technology which replaces mechanical contacts to achieve low ON resistance and extended operational lifespan. The relay converts input electrical signals to light and back again with high I/O isolation, making it ideal for industrial automation where signal integrity is critical.

This relay has a single pole single throw (SPST) contact configuration and supports AC/DC switching, providing flexibility for multiple applications including industrial, manufacturing, and control systems. The device is capable of operating across a wide temperature range from -40 degrees Celsius up to 85 degrees Celsius, ensuring reliable performance under harsh conditions.

Due to its MOSFET-based construction, it exhibits minimal switching noise and distortion compared to traditional TRIAC or electromechanical relays. Additionally, with an off-state leakage current as low as 1 microampere and low capacitance of 250 picofarads, it enhances efficiency and signal quality for sensitive electronics.

The G3VM series is known for its ultra-small DIP 4-pin package which supports compact PCB designs essential for modern electronic equipment. Manufactured in Japan, this relay complies with RoHS directives, reflecting environmentally responsible engineering.

Operates with AC/DC switching functionality providing versatile control options. Equipped with a PCB terminal and Single Pole Single Throw (SPST) contact configuration. Features extremely low off-state leakage current of 1 microampere for energy efficiency.

Built to operate reliably between temperatures of -40°C and 85°C for demanding environments. Offers excellent isolation with up to 250 picofarads capacitance and high shock resistance. Utilizes MOSFET technology to eliminate switching noise common to electromechanical relays.

Compact ultra-small DIP 4-pin package enabling space-saving PCB designs. Designed and manufactured in Japan ensuring high-quality standards and RoHS compliance.

This relay is widely used in industrial control, automation systems, signal conditioning circuits, and other electronics applications requiring silent, fast switching without mechanical wear. Its small size and high reliability make it suitable for embedded electronics, instrumentation, and HVAC equipment.
