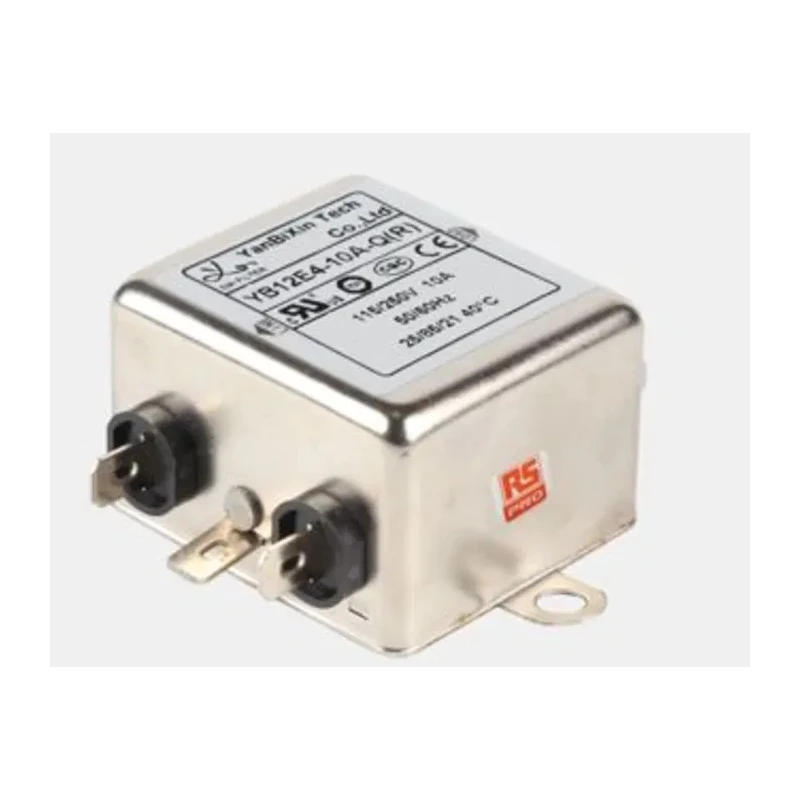

RS PRO 10 A 250V AC 400Hz Chassis Mount RFI Filter Fast-On Termination 1 Phase 237-8699

RS PRO 237-8699 is a high-quality power line RFI filter designed for chassis mounting in electronic devices operating at 250V AC and 400Hz frequency. This filter offers reliable EMI and RFI suppression for single-phase electrical equipment by significantly reducing conducted radio frequencies between the device and its power source, helping to protect sensitive electronics from interference that could degrade performance or cause damage.

With a maximum rated current of 10 amperes, this chassis mount filter uses fast-on terminations to facilitate quick and secure connections. It features a capacitance of 0.22 microfarads and provides a single-stage filtering design tailored to meet demanding electromagnetic compatibility requirements.

The filter operates safely within a broad temperature range, from -25°C minimum to 85°C maximum, with a leakage current of only 800 microamperes, minimizing energy losses while ensuring compliance with safety standards. It has been tested and certified to UL 1283 safety standards, guaranteeing dependable performance in industrial, laboratory, medical, and commercial applications.

Its compact dimensions of 70.5 mm length, 50 mm depth, and 30 mm height make it suitable for use in small-to-medium sized machines and electrical equipment. The filter’s very low resistance of 2.2 milliohms ensures minimal voltage drop and heat generation during operation.

RS PRO power line filters like this model are ideal for use in environments where electromagnetic interference can compromise device functionality, such as manufacturing plants, medical facilities, and professional electronic instrumentation. The chassis mounting design allows easy integration into cabinets and control panels.

Rated maximum current of 10 amperes for reliable performance. Operates at a maximum voltage of 250 volts AC and frequency of 400 Hz. Compact chassis mount design with fast-on terminals for easy installation. Single-phase, single-stage filtering effective against EMI and RFI.

Low leakage current ensures operational safety and efficiency. Compliance with UL 1283 for power line filters ensures high quality. Suitable for industrial, laboratory, medical, and commercial applications. Compact dimensions fit various electrical equipment mounting requirements.

Constructed to extend device lifespan by preventing electromagnetic interference. Discover more electronics components and Power Line Filters in the RS PRO category on EnvMart.
