HIOKI DT-4261 + P2000 Probe & Digital Multimeter For Solar Industries
Specifications
| DC Voltage Range | 600.0V to 1000 V (When using P2000 600.0 V to 2000 V) |
|---|---|
| AC Voltage Range | 6.000 V to 1000 V| 4 ranges (15 Hz to 1 kHz| True RMS)| Basic accuracy 45 - 66 Hz 0.9% rdg. 0.003 V (at 6 V) |
| Capacitance Range | 1.000 F to 1000 F| 4 ranges| Basic accuracy 1.9% rdg. 0.005 F (at 1 F) |
| Resistance Range | 600.0 O to 6.000 MO| 5 ranges| Basic accuracy 0.7% rdg. 0.5 O (at 600 O) |
| Frequency range | 9.999 Hz to 999.9 Hz| 3 ranges| Basic accuracy 0.1% rdg. 0.003 Hz (at 9.999 Hz) |
| Warranty | 3 year |
| Brand | HIOKI |
| Power Supply | LR03 Alkaline battery 2 Continuous use 40 hr (without Z3210 installed)| 24 hr. (with Z3210 installed and using wireless communications) Other conditions 100 A AC measurement| backlight off| 23C reference value |
| Applications | Solar Industries |
| Model | Dt-4261 + P2000 |
| Features | Up to 2000V DC Measurements |
| AC Voltage (V) | 1000V |
| Digit Display | 4 Digit |
| Included Accessories | Test Lead L9300| Carrying Case C0203| LR03 Alkaline battery 2| Instruction Manual2| Operating Precautions 1 |
| Dimensions and mass | 65 mm (2.56 in) W250 mm (9.84 in) H35 mm (1.38 in) D mm| 530 g (18.7 oz) |
| DC Current range | 600.0 A/2000 A| Basic accuracy 1.3% rdg. 0.3 A (600 A range) |
| AC Current range | 600.0 A/2000 A (10 Hz to 1 kHz| True RMS)| Basic accuracy 45 - 66 Hz 1.3% rdg. 0.3 A (at 600 A) |
| Crest factor | 600.0 A range 3 or less 2000 A range 2.84 or less |
| Voltage detection | Hi 40 V to 600 V AC| Lo 80 V to 600 V AC| 50/60 Hz |
| DC+AC Current range | 600.0 A/2000 A (10 Hz to 1 kHz| True RMS)| Basic accuracy DC| 45-66 Hz 1.3% rdg. 1.3 A (at 600 A) |
| DC+AC Voltage range | 6.000 V to 1000 V| 4 ranges| Basic accuracy DC| 45 - 66 Hz 1.0% rdg. 0.013 V (at 6 V) |
| Temperature (K) | -40.0 to 400.0C| add temperature probe accuracy to basic accuracy of 0.5% rdg. 3.0 C |
| Harmonic levels | [With Z3210 installed] Voltage/Current harmonic levels up to 30th| Content factor| Total harmonic distortion ratio Harmonics can be displayed with our free app GENNECT Cross. |
| Dustproof waterproof | IP54 (While in storage| or when measuring the current an insulated conductor. Do not use when wet.) |
| Core jaw diameter | f55 mm (2.17 in)| Jaw dimension 92 mm (3.62 in) W18 mm (0.71 in) D |
Key Features

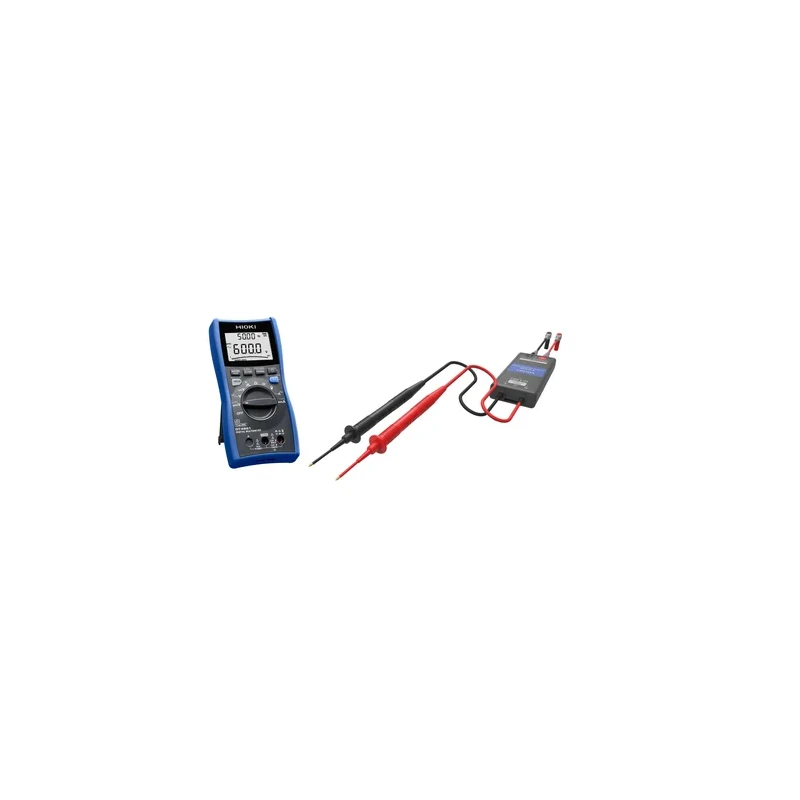

- Enables high voltage measurement up to CAT III 2000 V
- Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2000 to compatible Hioki clamp meters and digital multimeters (DMMs)
Product Description
HIOKI Dt-4261 + P2000 Probe & Digital Multimeter For Solar Industries (2000V DC), Digital Multimeters are measuring instruments that can measure quantities such as voltage, current, and resistance. Measured values are shown on a digital display, allowing them to be read easily and directly, even by first-time users. Some digital multimeters select the measurement range automatically, eliminating the need to choose it manually. Consequently, these instruments are comparatively easy to use, even for beginners. Naturally, analog testers also offer advantages, for example in terms of the ease with which changes in the measured value during measurement can be read and the intuitive ease with which a needle can be viewed in locations where a digital reading might be difficult to see.Since both digital multimeters and analog testers have advantages, you can choose the instrument thats best for your application by clarifying what you wish to measure
Other functions:DC power| Continuity check| Diode check| Automatic AC/DC detection| Pass/fail judgement function of DC A and DC V| Max/Min/Average/PEAK MAX/ PEAK MIN value display| Low-pass filter function| Display value hold| Auto hold| Back light| Auto-power save| Buzzer sounds| Zero-adjustment| etc.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure DC voltages up to 2000V when using the P2000 probe.
The AC voltage range is from 6.000 V to 1000 V across four ranges, with a basic accuracy of 0.9% for 45 - 66 Hz.
It has a DC and AC current range of 600.0 A and 2000 A, with a basic accuracy of 1.3% in the 600 A range.
The capacitance range is from 1.000 F to 1000 F, with a basic accuracy of 1.9% at 1 F.
Included accessories are a test lead (L9300), carrying case (C0203), two LR03 alkaline batteries, an instruction manual, and operating precautions.
It operates on two LR03 alkaline batteries, providing continuous use for 40 hours without wireless communication and 24 hours with it.
The dimensions are 65 mm W x 250 mm H x 35 mm D, and it weighs 530 g (18.7 oz).
It can measure temperatures from -40.0 to 400.0 °C, with an additional accuracy of 0.5% for the temperature probe.
It has an IP54 rating while in storage or when measuring current with an insulated conductor, but should not be used when wet.
This model is specifically designed for applications in the solar industries.
The resistance measurement range is from 600.0 Ω to 6.000 MΩ, with a basic accuracy of 0.7% at 600 Ω.
It includes features such as automatic AC/DC detection, max/min/average/peak value display, and a low-pass filter function.
