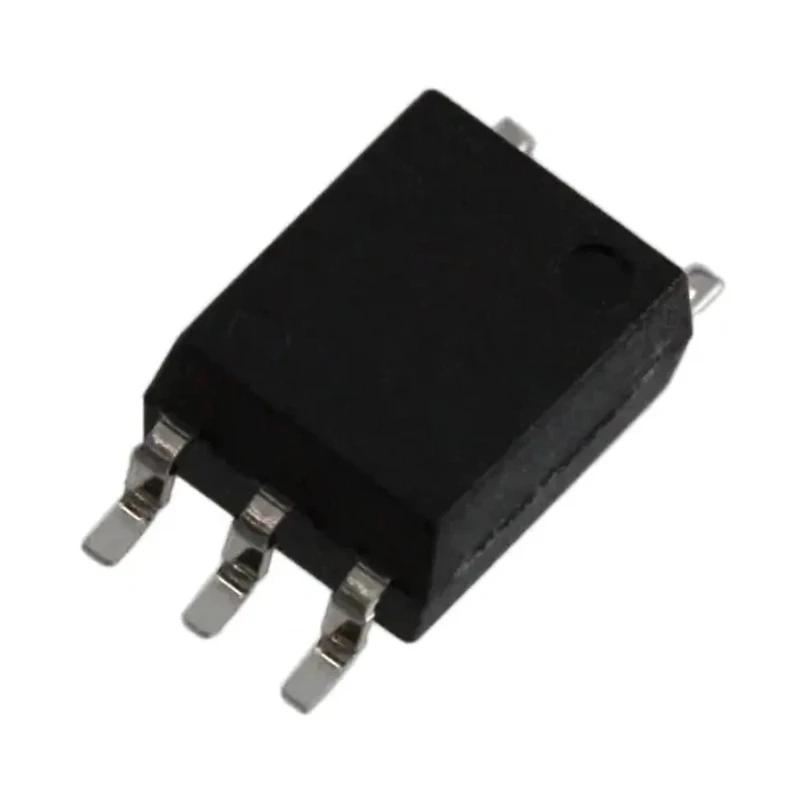

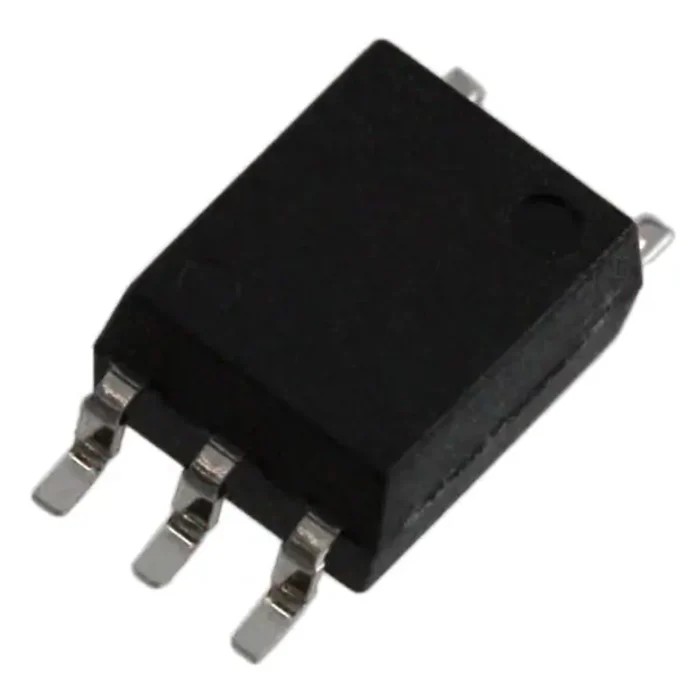

Toshiba Photocoupler Surface Mount MOSFET Output 4-Pin SO Package TLP172AM(TPR,E(O)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP172AM(TPR,E(O |
| Packaging | SMD |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | TLP |
| Maximum Operating Temperature | 110°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 30mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL1577, EN60747-5-5 (VDE), UL508, RoHS, CSA Component Acceptance Service No.5A |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Typical Rise Time | 0.6ms |
| Typical Fall Time | 0.1ms |
Key Features
- Operates with a maximum forward voltage of 1.4V.
- Features a single channel configuration for precise signal isolation.
- Installed as a surface mount device for ease of PCB assembly.
- Typical rise and fall times are 0.6ms and 0.1ms respectively, supporting fast switching.
- Maximum input current rating is 30mA for reliable operation.
- Isolation voltage of 3750 Vrms ensures safety in industrial environments.
- Designed to operate in temperatures ranging from -40°C to 110°C.
- Replacing mechanical relays and suitable for factory automation and security systems.
Product Description
The Toshiba TLP172AM(TPR,E(O photocoupler is a high-quality optoelectronic device designed for efficient signal isolation in industrial applications. It features a gallium arsenide infrared emitting diode optically coupled to a photo MOSFET output, housed in a compact 4-pin SO surface mount package. This design facilitates ease of integration into automated systems, security systems, and factory automation setups where replacing mechanical relays is desired.
Operating with a maximum forward voltage of 1.4V and maximum input current of 30mA, the device ensures reliable signal transmission with minimal loss. Its typical rise time of 0.6ms and fall time of 0.1ms supports fast electronic switching essential in modern industrial controls.
The TLP172AM series provides a robust isolation voltage of 3750 Vrms, ensuring electrical isolation that protects control circuits from high voltage spikes, enhancing overall system reliability. It is built to operate under a wide temperature range from -40°C to 110°C, making it suitable for harsh environments found in industrial and commercial settings.
Certified to meet multiple international standards including UL1577, EN60747-5-5 (VDE), UL508, RoHS compliance, and CSA Component Acceptance Service No. 5A, this photocoupler meets stringent safety and environmental requirements.
Ideal use cases include factory automation, mechanical relay replacements, and security system applications where solid-state relay performance is required with halogen-free packaging.
Operates as a normally opened photocoupler for fail-safe operation. Surface mount type eases automated assembly on PCBs. MOSFET output type offers low on-resistance and high-speed switching. Compact 4-pin SO package saves board space.
Complies with multiple global safety and environmental standards. Suitable for industrial, laboratory, and commercial electronics systems. Halogen-free construction supports environmental safety. Ensures improved production efficiency when mounted on reels for automated insertion.
Explore more Toshiba Optocouplers and photodetectors in EnvMart’s Electronics Components section for tailored industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 110°C.
It has a robust isolation voltage of 3750 Vrms, ensuring safety in industrial environments.
The typical rise time is 0.6ms and the fall time is 0.1ms, supporting fast electronic switching.
The maximum input current rating is 30mA for reliable operation.
It features a MOSFET output type, which offers low on-resistance and high-speed switching.
This model is packaged as a surface mount device (SMD) in a compact 4-pin SO package.
It operates within a temperature range of -40°C to 110°C.
This photocoupler features a single channel configuration for precise signal isolation.
It meets multiple standards including UL1577, EN60747-5-5 (VDE), UL508, RoHS, and CSA Component Acceptance Service No. 5A.
The maximum forward voltage is 1.4V.
It is ideal for factory automation, mechanical relay replacements, and security system applications.
The country of origin for this model is India.
