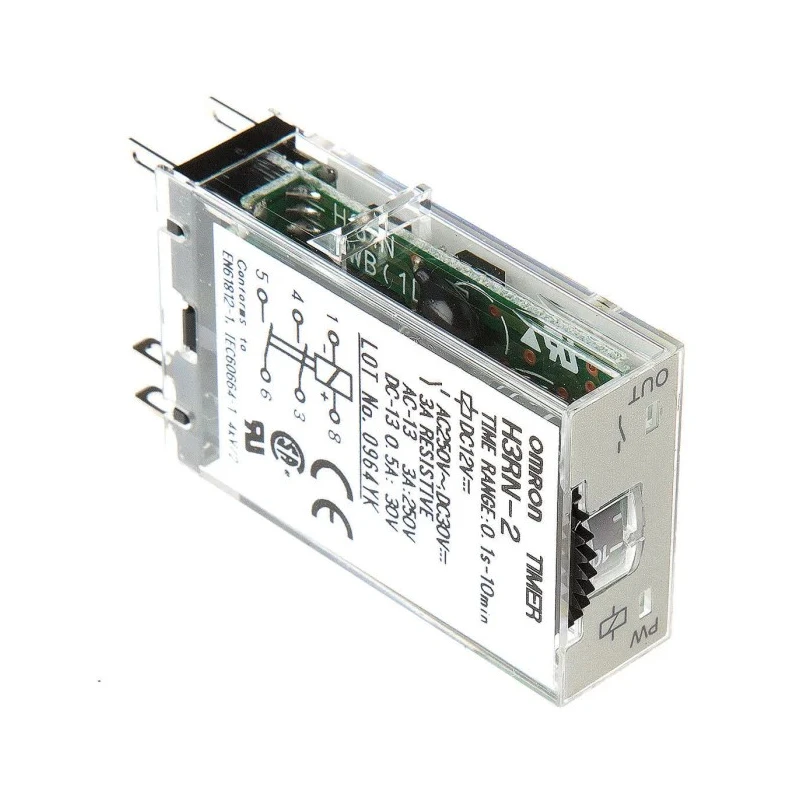

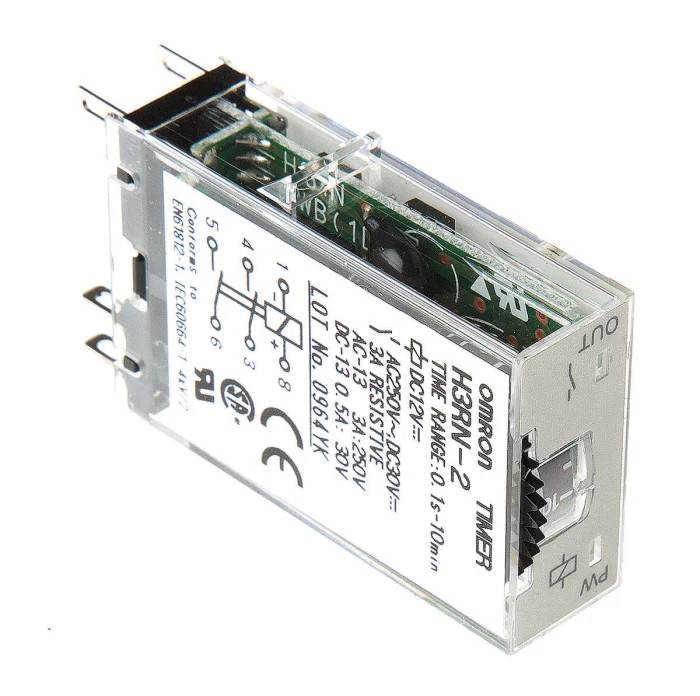

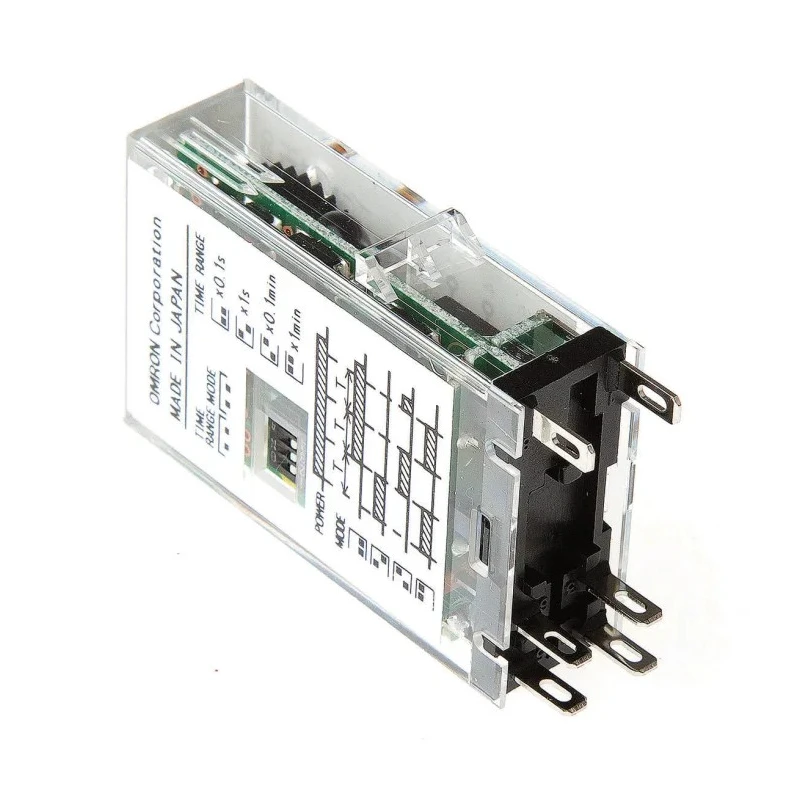

Omron H3RN Series DIN Rail Timer Relay, 2-Contact, 12 V DC, 0.1 s to 10 min, Multifunction-Function, DPST-NO Switch H3RN

Omron H3RN Series DIN Rail Timer Relay H3RN combines precise timing control and multifunction capabilities to suit various industrial, manufacturing, and automation applications.

This relay operates at a supply voltage of 12 V DC with a robust 3A contact current capacity, ensuring reliable switching performance. The multifunction timer supports flexible timing modes such as ON-delay and interval timing with a selectable range from 0.1 seconds up to 10 minutes, making it adaptable for multiple control scenarios.

Designed for DIN rail mounting, this relay provides ease of installation in control panels and equipment enclosures. The DPST-NO (Double Pole Single Throw - Normally Open) contact configuration facilitates dependable control switching. The relay holds an IP40 rating, safeguarding the internal components against solid objects and suitable for typical industrial atmospheres.

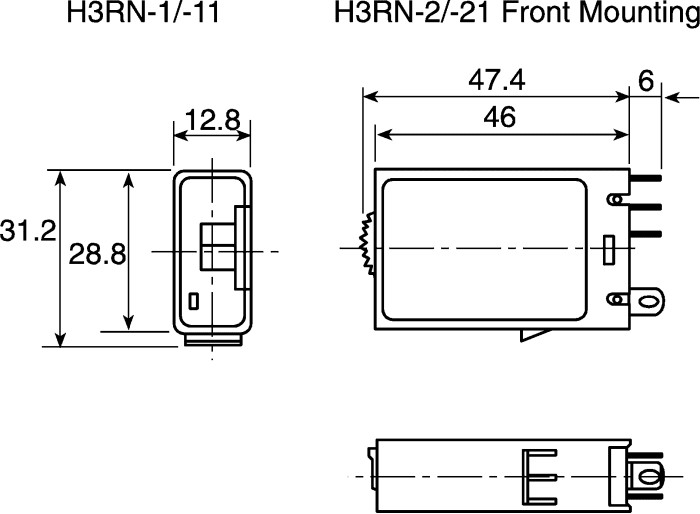

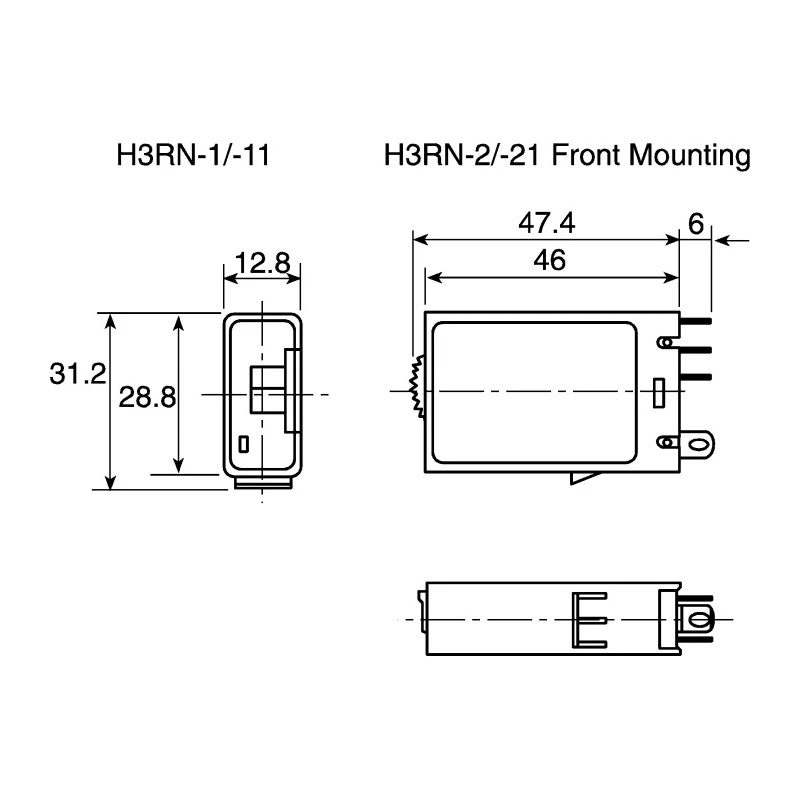

Its operating temperature range from -10°C to +55°C enables usage in diverse environments. With compact dimensions (Width: 12.8 mm, Height: 31.2 mm, Length: 31.2 mm), it fits conveniently into dense assemblies without occupying excessive space.

The socket terminal type enhances connection reliability and allows for plug-in terminal block compatibility, simplifying maintenance and replacement. Compliance with CSA, UR, and EN standards confirms its quality and operational safety.

This timer relay is well-suited for automation tasks requiring accurate timing control, including interval timing, industrial signalling, and process machinery operations. It is ideal for manufacturing plants, water treatment systems, HVAC control, and other industrial automation systems that demand reliable and multifunctional timing equipment.

Operates at 12 V DC supply voltage with 3A contact current. Multifunction timer with range from 0.1 seconds to 10 minutes. Compact size designed for DIN rail mounting. DPST-NO contact configuration for flexible switching.

IP40 rated for solid particle protection. Operating temperature range from -10°C to +55°C. Complies with CSA, UR, and EN standards. Socket terminal type compatible with plug-in blocks. Suitable for industrial automation and process control.
