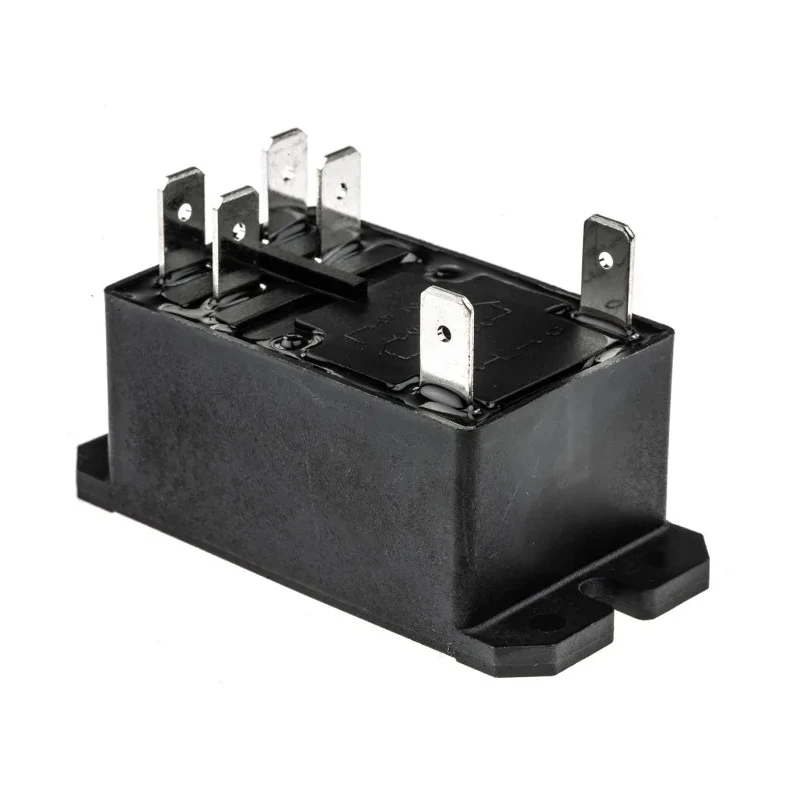

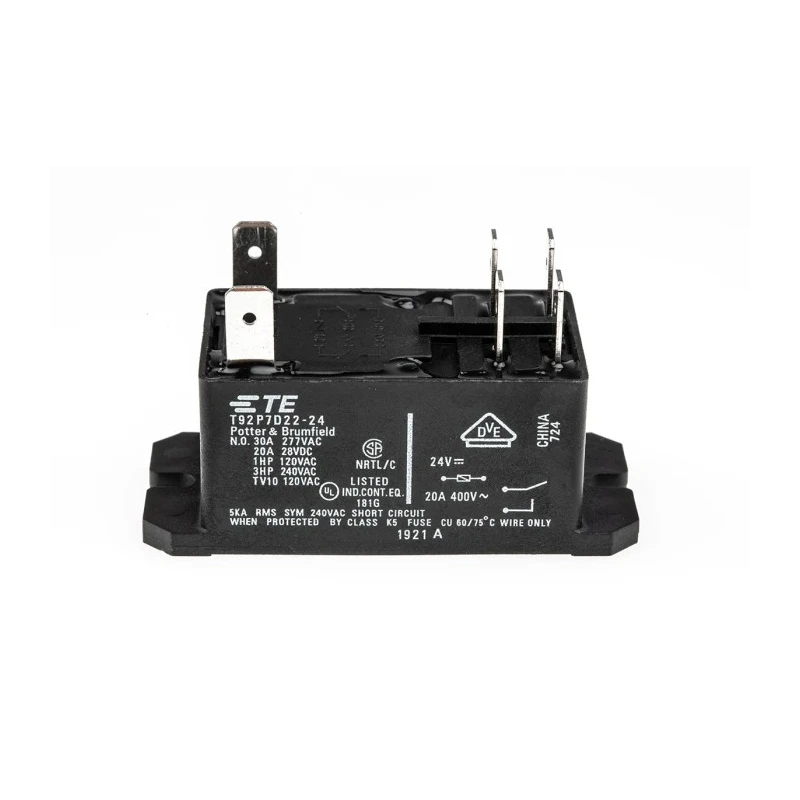

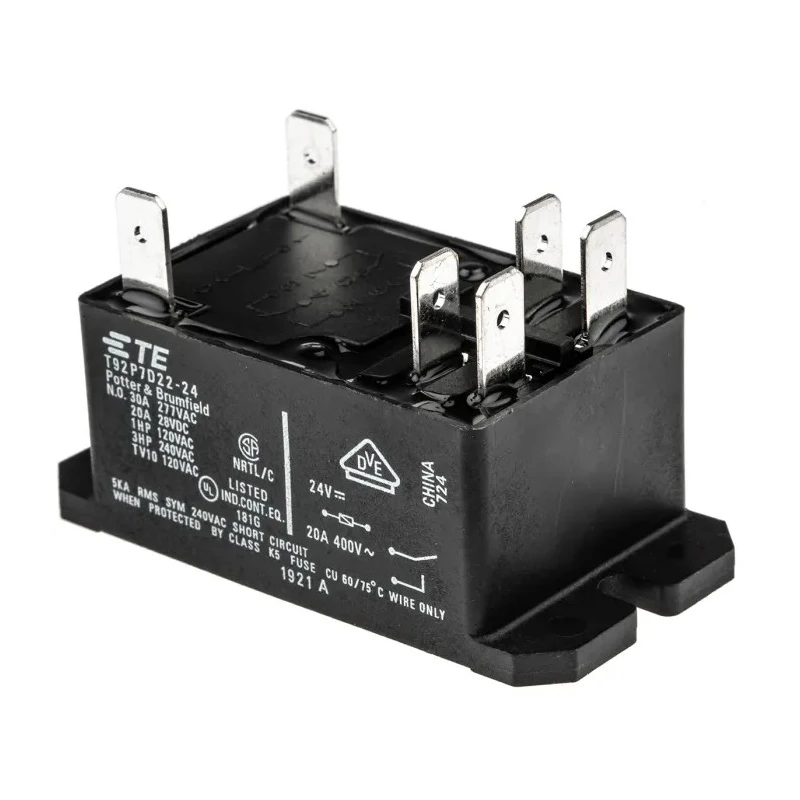

TE Connectivity Flange Power Relay 24V DC Coil 30A Switching Current DPST T92P7D22-24 7-1393211-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 38mm |
| Length | 68.6mm |
| Model | T92P7D22-24 7-1393211-1 |
| Width | 34.5mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 85°C |

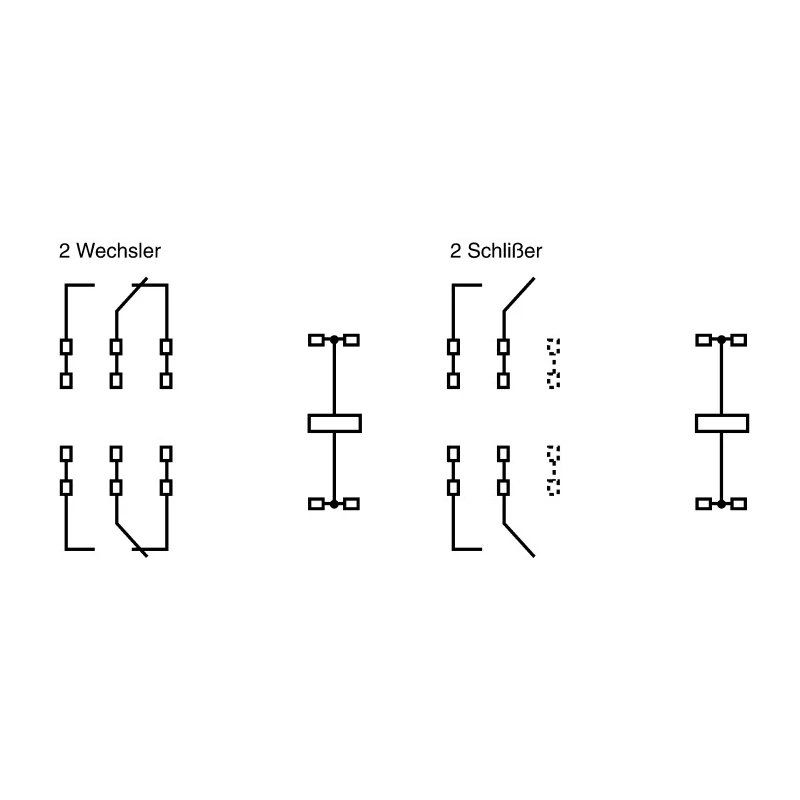

| Contact Configuration | DPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 1.7W |
Key Features
- This relay has a flange mount type suitable for panel installation.
- The coil resistance is 350 ohms ensuring stable coil operation.
- Contact material is high-quality silver alloy to provide reliable conductivity.
- Operating temperature ranges from -55°C to 85°C for versatile environmental use.
- Switching AC voltage is rated up to 600V AC for broad application compatibility.
- Quick connect terminal type allows easy and secure wiring connections.

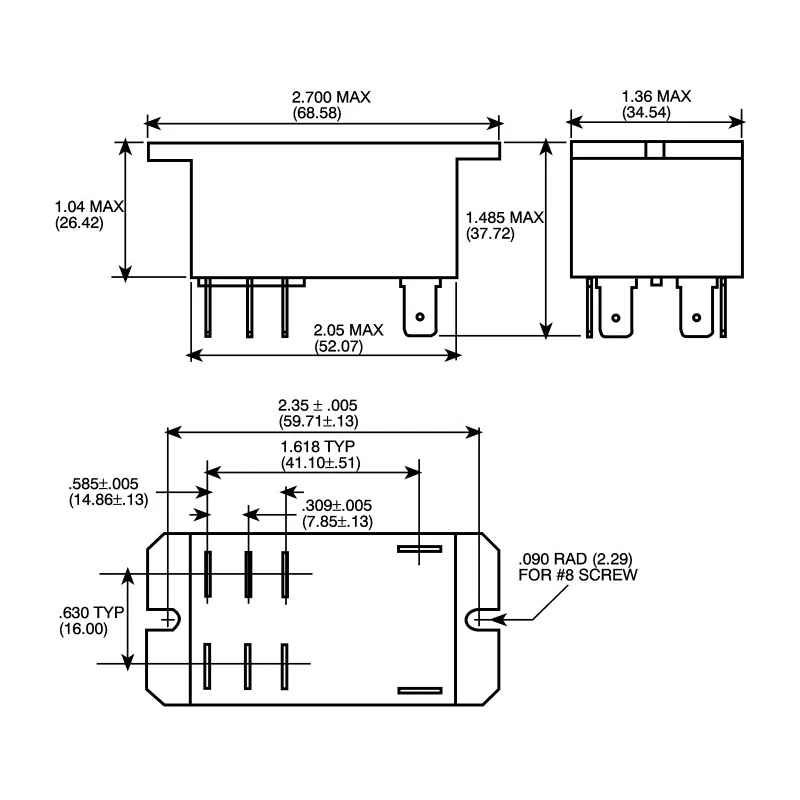

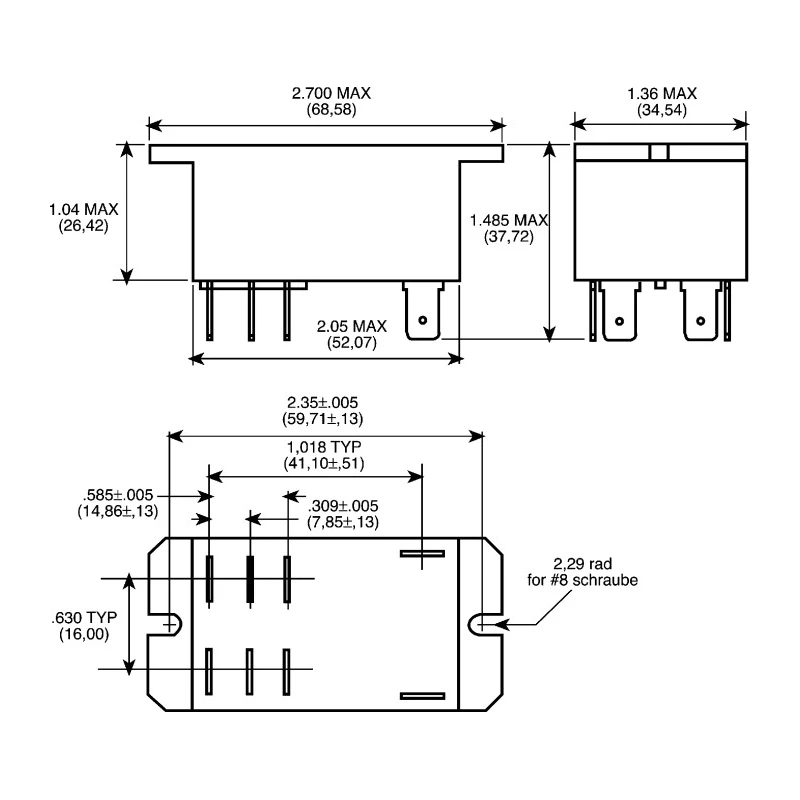

- The dimensions of the relay are 68.6mm length, 38mm height, and 34.5mm width for compact installation.
- Coil power consumption is low at 1.7W, enhancing energy efficiency.
Product Description
TE Connectivity presents the T92P7D22-24 7-1393211-1 flange power relay, specialized for industrial and electrical applications requiring reliable switching of high currents. This non-latching relay operates with a 24V DC coil and supports a 30A switching current, making it ideal for controlling loads such as compressors up to 3.5 tons and heavy-duty equipment.
The relay features a DPST contact configuration and flange mounting that ensures secure and sturdy panel installation. Its silver alloy contact material enhances conductivity and durability under demanding conditions.
Designed to meet rigorous industrial standards, this relay operates efficiently across a wide temperature range from -55°C to 85°C. The coil resistance of 350Ω balances power consumption with reliable coil actuation, using only 1.7W of coil power. With quick connect terminals, the product ensures fast and secure electrical connections.
Electrical specifications include a switching AC voltage capacity of 600V AC, suitable for diverse industrial circuits. Compact dimensions (68.6mm length, 38mm height, 34.5mm width) make it easy to integrate into various panels and enclosures.
This flange power relay is RoHS compliant, emphasizing environmental responsibility. Its robust construction and precision engineering suit applications in industrial automation, HVAC, manufacturing, and electrical control systems.
Manufactured in China, the relay offers consistent quality and performance assurance.
For professionals requiring a dependable power relay with high switching capacity and versatile coil voltage, the TE Connectivity T92P7D22-24 7-1393211-1 is a prime choice within the electronics and electrical industry. Explore other products in the Power Relay category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 30A, making it suitable for controlling high current loads.
This model operates with a coil voltage of 24V DC, ensuring compatibility with various applications.
The relay has dimensions of 68.6mm in length, 38mm in height, and 34.5mm in width, allowing for compact installation.
It features a DPST (Double Pole Single Throw) contact configuration, suitable for various switching applications.
The operating temperature range for this relay is from -55°C to 85°C, making it versatile for different environments.
This model uses quick connect terminals, allowing for easy and secure wiring connections.
The coil resistance is 350 ohms, which balances power consumption with reliable coil operation.
The relay is rated for switching AC voltage up to 600V AC, suitable for a wide range of industrial circuits.
The contact material is a high-quality silver alloy, which enhances conductivity and reliability.
Yes, this relay is RoHS compliant, emphasizing its adherence to environmental standards.
The coil power consumption is low at 1.7W, contributing to energy efficiency in operation.
This relay is manufactured in China, ensuring consistent quality and performance assurance.
