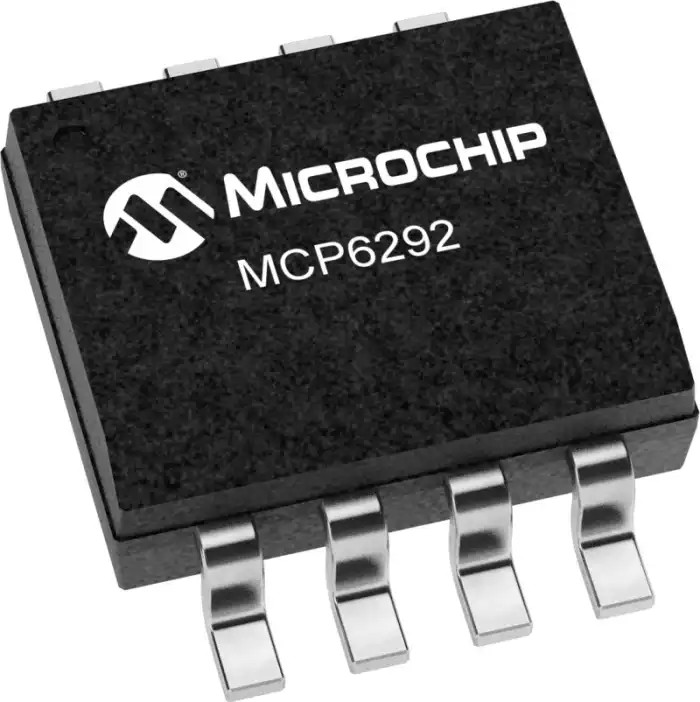

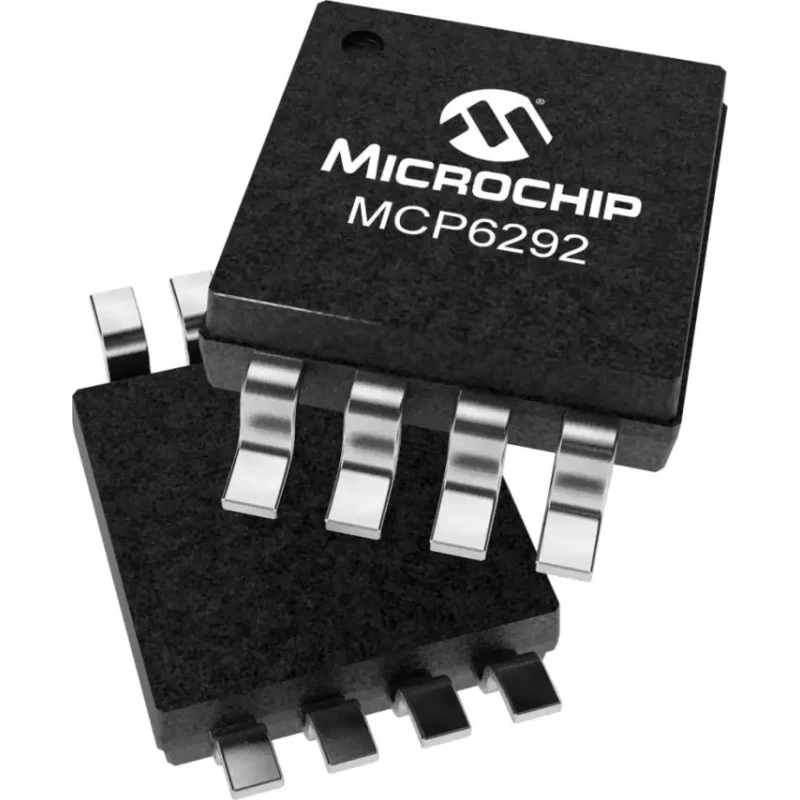

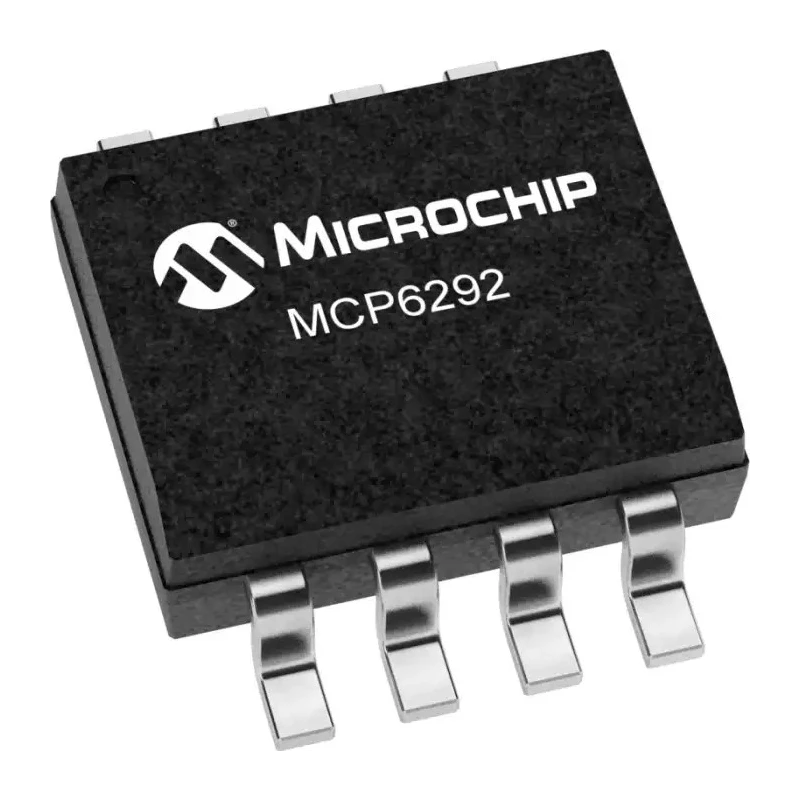

Microchip Operational Amplifier 10 MHz 8-Pin MSOP 6V MCP6292T-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.85mm |
| Length | 3mm |
| Model | MCP6292T-E/MS |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6292 |
| Output Current | 25mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 7V/μs |
Key Features
- Offers 2 channels with rail-to-rail input and output for precision signals.
- Maintains low input bias and offset currents at 1 pA and 5 mV respectively.
- Operates efficiently with a slew rate of 7 V/μs and output current up to 25 mA.
- Designed for harsh environments with -40°C to 125°C operating temperature range.
- Compact dimensions of 3 mm length, 3 mm width, and 0.85 mm height for PCB surface mounting.
- Complies with RoHS and meets automotive AEC-Q100 standards for reliability.
Product Description
The Microchip MCP6292T-E/MS is a high-performance operational amplifier designed for electronic and semiconductor applications requiring a 10 MHz gain bandwidth product. Packaged in a compact 8-pin MSOP surface mount form factor, this dual-channel device operates reliably on a 6V supply voltage, making it suitable for precision amplification tasks.
This amplifier provides rail-to-rail input and output capability, ensuring signal fidelity across the full voltage range. The device maintains extremely low input bias current of 1 pA and input offset voltage of 5 mV, supporting low-noise and accurate signal processing in industrial and laboratory environments.
With a slew rate of 7 V/μs and output current capability of 25 mA, the MCP6292T-E/MS amplifier handles rapid signal changes efficiently, ideal for applications requiring fast response times. Its operational temperature range from -40°C up to 125°C allows deployment in automotive and harsh industrial conditions.
The small footprint with dimensions 3 mm by 3 mm and a height of 0.85 mm facilitates high-density PCB design and surface mounting, reducing assembly and board space. Compliance with RoHS directives and adherence to automotive AEC-Q100 standards demonstrate its suitability for environmentally conscious and automotive-grade implementations.
2-channel dual Operational Amplifier configuration. Surface mount MSOP package type ensuring easy PCB integration. Gain bandwidth product of 10 MHz with 65° phase margin for stable operations. Input bias current and offset voltage optimized for sensitive signal applications.
Wide operating temperature range supporting extended industrial use cases. Meets industry standards for automotive and environmental safety.
Applications span across industrial control, automotive electronics, instrumentation amplifiers, and medical devices where precision and reliability are paramount. The MCP6292T-E/MS ensures consistent amplification and signal integrity, contributing to robust electronic system designs.
Explore additional Microchip semiconductor amplifiers and components on EnvMart for various industrial and electronic product needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6292T-E/MS has a gain bandwidth product of 10 MHz, making it suitable for high-frequency applications.
This operational amplifier operates efficiently within a temperature range of -40°C to 125°C, allowing it to be used in harsh environments.
It can provide an output current of up to 25 mA, which supports a variety of amplification tasks.
The MCP6292T-E/MS features a dual-channel configuration, offering two independent amplification paths.
The dimensions of this model are 3 mm in length, 3 mm in width, and 0.85 mm in height, making it suitable for compact PCB designs.
This operational amplifier maintains a low input bias current of 1 pA, which is beneficial for low-noise applications.
The MCP6292T-E/MS is packaged in an 8-pin MSOP surface mount form factor, facilitating easy integration onto PCBs.
It has a slew rate of 7 V/μs, allowing it to handle rapid signal changes effectively.
Yes, it complies with RoHS directives and meets automotive AEC-Q100 standards for reliability and environmental safety.
The input offset voltage is specified at 5 mV, which supports accurate signal processing.
The MCP6292T-E/MS operates on a minimum supply voltage of 6V, making it versatile for various applications.
It is suitable for applications in industrial control, automotive electronics, instrumentation amplifiers, and medical devices where precision is crucial.
