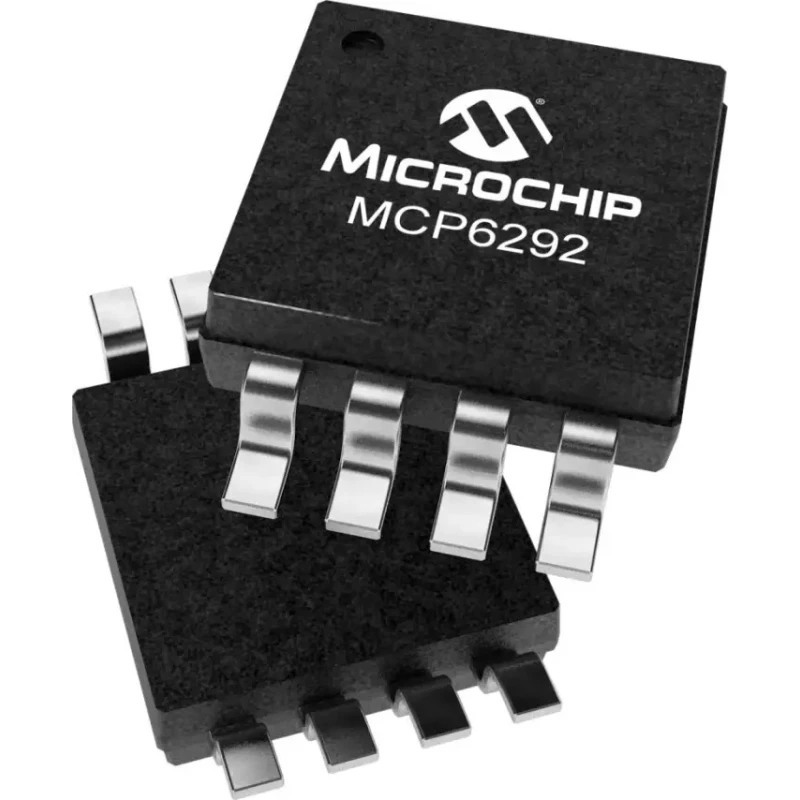

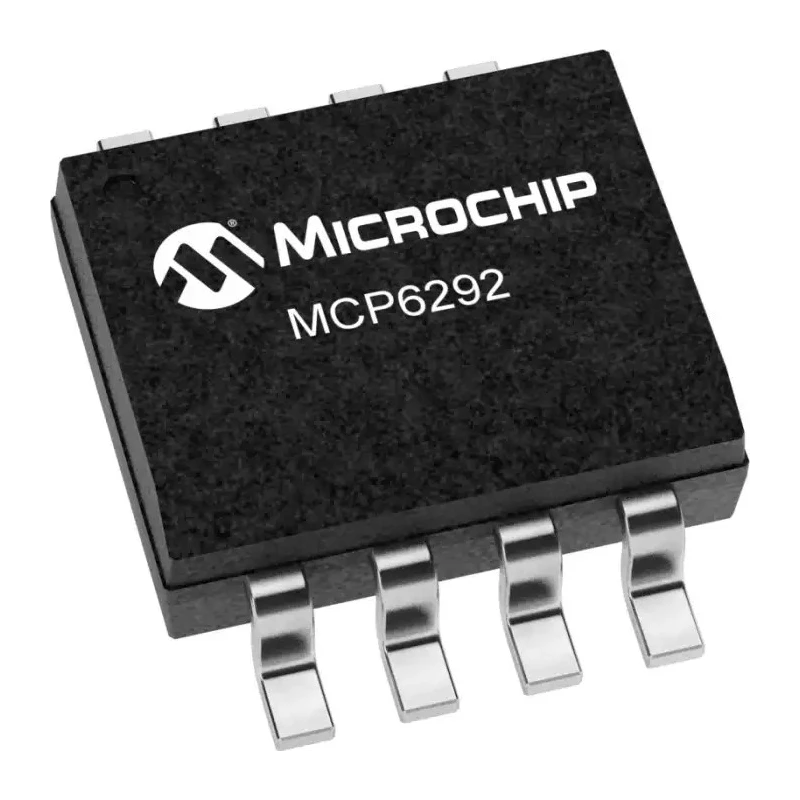

Microchip Operational Amplifier 10 MHz Gain Bandwidth Product, 8-Pin MSOP Package, 6 V MCP6292T-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.85mm |
| Length | 3mm |
| Model | MCP6292T-E/MS |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6292 |
| Output Current | 25mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 7V/μs |
Key Features
- Features a 10 MHz gain bandwidth product for wide-frequency applications.
- Surface mount MSOP package with 8 pins ensures compact mounting.
- Dual channels with low input offset voltage of 5 mV for precision amplification.
- Operates over a wide temperature range of -40°C to 125°C for reliability.
- Low input bias and offset currents at 1 pA for high sensitivity.
- Slew rate of 7 V/µs enabling rapid signal processing.
- Supports maximum supply voltage of 6 V for flexible power usage.
- Output current capability up to 25 mA for driving loads efficiently.
Product Description
The Microchip MCP6292T-E/MS operational amplifier provides high-performance signal amplification with a 10 MHz gain bandwidth product. Packaged in a compact 8-pin MSOP surface mount form, it suits applications requiring both precision and space-saving designs.
Operating at a fixed 6 V supply voltage, this dual-channel amplifier boasts a low input offset voltage of 5 mV and an exceptionally low input bias current of 1 pA, making it ideal for sensitive instrumentation and signal conditioning tasks. Its slew rate of 7 V/µs supports fast response times, useful in dynamic signal environments.
Designed to withstand harsh environments, the device functions reliably across an extended temperature range from -40°C to 125°C. This automotive-grade amplifier complies with the AEC-Q100 standard, ensuring quality and reliability for automotive and industrial electronics.
The MCP6292 series supports rail-to-rail input/output operation, allowing for maximum dynamic range within the supply voltage constraints. With an output current capability of 25 mA, it can drive moderate loads directly.
Typical applications include industrial controls, automotive electronics, and precision measurement systems where high gain bandwidth and stability are critical. High gain bandwidth product of 10 MHz. Compact 8-pin MSOP surface mount package for space-saving designs.
Low offset and bias currents enhance measurement accuracy. Wide temperature operating range for harsh environments. Automotive standard AEC-Q100 compliant. Rail-to-rail input/output for maximum signal swing. Fast 7 V/µs slew rate for dynamic response.
Dual channel functionality to support various circuit designs. Output current up to 25 mA for effective load driving. Explore more Operational Amplifiers and other semiconductor components at EnvMart for your electronic development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6292T-E/MS has a gain bandwidth product of 10 MHz, making it suitable for wide-frequency applications.
This model operates with a maximum supply voltage of 6 V, providing flexibility for various power usage scenarios.
It features a low input offset voltage of 5 mV, which enhances precision in amplification tasks.
The output current capability of the MCP6292T-E/MS is up to 25 mA, allowing it to drive moderate loads efficiently.
This unit operates reliably over a wide temperature range from -40°C to 125°C, suitable for harsh environments.
It is packaged in an 8-pin MSOP surface mount form, which is compact and ideal for space-saving designs.
The slew rate of this operational amplifier is 7 V/µs, enabling rapid signal processing for dynamic applications.
This operational amplifier complies with the AEC-Q100 automotive standard, ensuring quality and reliability for automotive applications.
It features dual channels, allowing for versatile circuit designs and applications.
The input bias current of the MCP6292T-E/MS is exceptionally low at 1 pA, which contributes to its high sensitivity.
This model meets RoHS standards, ensuring compliance with environmental regulations.
Typical applications for this operational amplifier include industrial controls, automotive electronics, and precision measurement systems.
