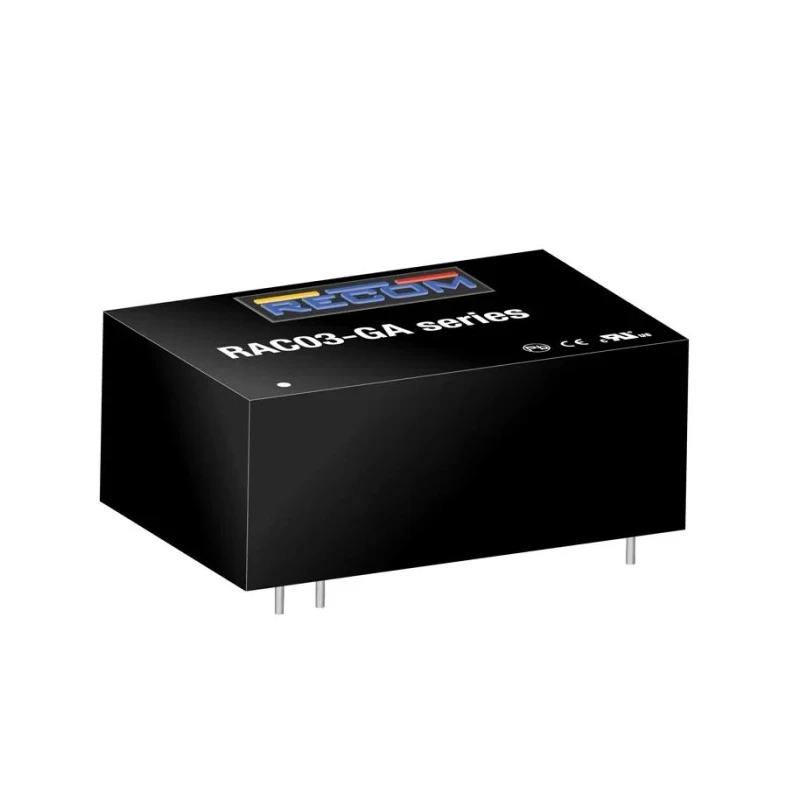

Recom Switching Power Supply 12V DC 3W 305V AC PCB Mount RAC03-12SGA

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Power Supply 12V DC 3W 305V AC PCB Mount RAC03-12SGA

Name: Recom Switching Power Supply 12V DC 3W 305V AC PCB Mount RAC03-12SGA
Brand: Recom
SKU: 211207
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand Recom Condition New

Specifications

Country of Origin	China
Brand	Recom
Power	3W
Efficiency	78%
Length	37mm
Model	RAC03-12SGA
Depth	15mm
Gross Weight	20g
Width	24mm
Mount Type	PCB
Series	RAC03-GA
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	305V ac
Standards/Approvals	CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class A, EN 55024, EN 60950-1, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, RoHS, UL 60950-1, EN 61000-4-11
Maximum Output Voltage	12V dc
SMPS Output Current	250mA

Key Features

Compact PCB mount power supply with dimensions 37mm length, 24mm width, and 15mm depth.
Supports a maximum output voltage of 12V DC at 250mA output current.
Operates efficiently with 78% efficiency, minimizing heat loss.
Wide operating temperature range from -40°C to 70°C.
Features a fast start-up time of 30ms for rapid power availability.
Self-extinguishing housing for enhanced safety and fire prevention.
Complies with multiple international standards including RoHS and UL 60950-1.
Ideal for machine tooling, security systems, and IT network applications.

Product Description

Recom RAC03-12SGA Switching Power Supply is a compact, PCB mount unit delivering 12V DC output voltage and 3W power suitable for low power electronic projects and industrial applications. Its small footprint of 37mm by 24mm by 15mm allows it to fit easily on crowded printed circuit boards.

Designed for durability and safety, the RAC03-12SGA features a self-extinguishing housing that prevents fire spread by stopping burning within 10 seconds. It operates reliably across a broad temperature range from -40°C to +70°C, making it adaptable for various environmental conditions.

This power supply offers quick start-up time of 30 milliseconds, minimizing delay in device readiness. Its efficiency rating of 78% ensures minimal energy loss as heat, contributing to longer operational life and stable performance. Weighing only 20 grams, the unit is both lightweight and hardy.

Compliance with standards such as CAN/CSA C22.2 No. 60950-1-07, EN 55022 Class A, EN 60950-1, UL 60950-1, and RoHS certification guarantees safety and environmental responsibility. Its encapsulated design protects against harsh industrial environments.

Common applications include machine tooling, security systems, and IT network equipment that require stable, reliable low-power DC supplies. The RAC03-12SGA belongs to the RAC03-GA series, known for robustness and quality.

Compact PCB mount design suitable for space-restricted applications. High efficiency and fast start-up for reliable operation. Wide operating temperature range enables diverse industrial usage. Conforms to multiple international safety and electromagnetic compatibility standards.

Lightweight design reduces load on equipment. Durable self-extinguishing housing increases safety in application environments. Excellent choice for industrial, laboratory, security, and HVAC sectors. Long mean time between failures of 100,000 hours ensures dependable long-term use.

Manufactured in China with strict quality controls. Explore the comprehensive selection of Switching Power Supplies at EnvMart to find the ideal solution for your electronic power needs.
