Texas Instruments 2 Flip Flop IC HCT, 14-Pin PDIP CD74HCT74E

Free Delivery in India | Lowest Global Shipping Charges

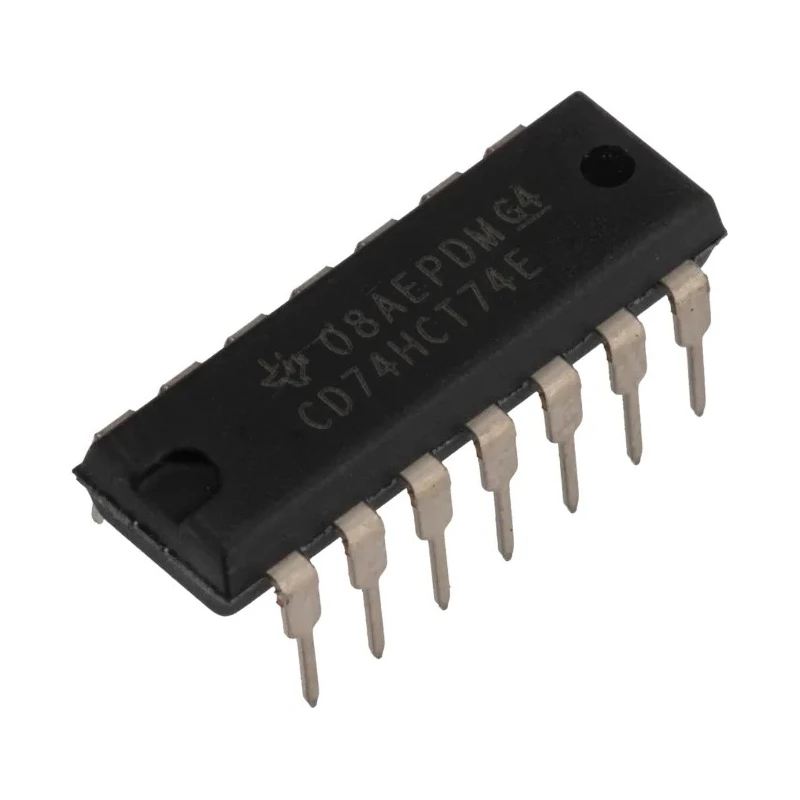

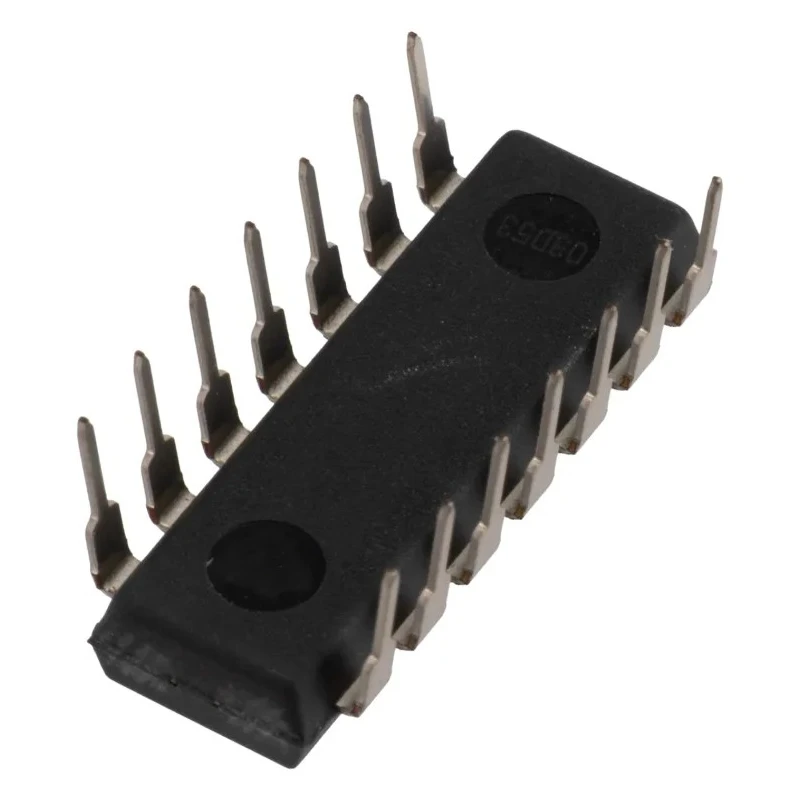

Texas Instruments 2 Flip Flop IC HCT, 14-Pin PDIP CD74HCT74E

Name: Texas Instruments 2 Flip Flop IC HCT, 14-Pin PDIP CD74HCT74E
Brand: Texas Instruments
SKU: 173567



Category Flip Flop ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	CD74HCT74E
Mount Type	Through Hole
Compatibility	Input TTL, Output CMOS
Series	CD74HCT74E
Input Type	Single Ended
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Polarity	Inverting, Non-Inverting
Trigger Type	Positive Edge
Pin Count	14
Number of Elements per Chip	2
Maximum Supply Voltage	5.5V
Logic Family	HCT
Minimum Supply Voltage	4.5V
Maximum Propagation Delay Time @ CL	53ns
Clock frequency	16MHz
Flip-Flop Type	D Flip-Flop

Key Features

Belongs to the 74HCT logic family with HCT technology for low power consumption.
Supports input voltage range from 4.5V to 5.5V for stable operation.
Features single-ended input type with both inverting and non-inverting polarity.
Clock frequency up to 16MHz allowing fast switching speeds.
Comes in a through-hole PDIP package with 14 pins for easy mounting.
Maximum propagation delay time of 53ns at CL load for reliable timing.
Operating temperature range from -55°C to 125°C suitable for industrial applications.
Contains 2 D-type flip-flop elements per chip for versatile digital circuit design.

Product Description

Texas Instruments CD74HCT74E is a dual D-type flip flop integrated circuit housed in a 14-pin PDIP package, designed for use in high-speed CMOS logic circuits within industrial, laboratory, and commercial electronics applications.

Operating over a supply voltage range of 4.5 to 5.5 volts, the IC supports single-ended inputs with both inverting and non-inverting polarity, controlled by a positive edge trigger. It delivers a maximum clock frequency of 16MHz and a propagation delay of 53ns, ensuring swift signal processing and timing accuracy.

The device's wide operating temperature span from -55°C to 125°C renders it suitable for harsh environmental conditions, making it ideal for embedded systems, digital electronics, and control circuitry. Mounting is facilitated via a through-hole PDIP package type with 14 pins, compatible with standard PCB layouts and prototyping methods.

This 74HCT series IC employs silicon gate CMOS technology, combining the speed comparable to LSTTL logic with lower power consumption of CMOS devices, enabling energy-efficient circuit designs.

Typical applications include digital memory elements, counters, and registers in industrial automation, instrumentation, and logic control systems. Belongs to the 74HCT family featuring high-speed CMOS logic. Single-ended input type with both inverting and non-inverting polarity options.

Through-hole mounting type aids in robust mechanical assembly. Wide operating temperature range enables use in diverse industrial conditions. Dual D flip-flop integration supports complex logic and timing functions. Compact 14-pin PDIP package with standard footprint for reliable PCB mounting.

Typical maximum clock frequency of 16MHz suitable for fast-switching circuits. Maximum propagation delay time at 53ns ensures stable timing performance. Explore more semiconductor and logic ICs at EnvMart for your advanced electronics projects and industrial requirements.

Explore more products in our Flip Flop ICs category.
