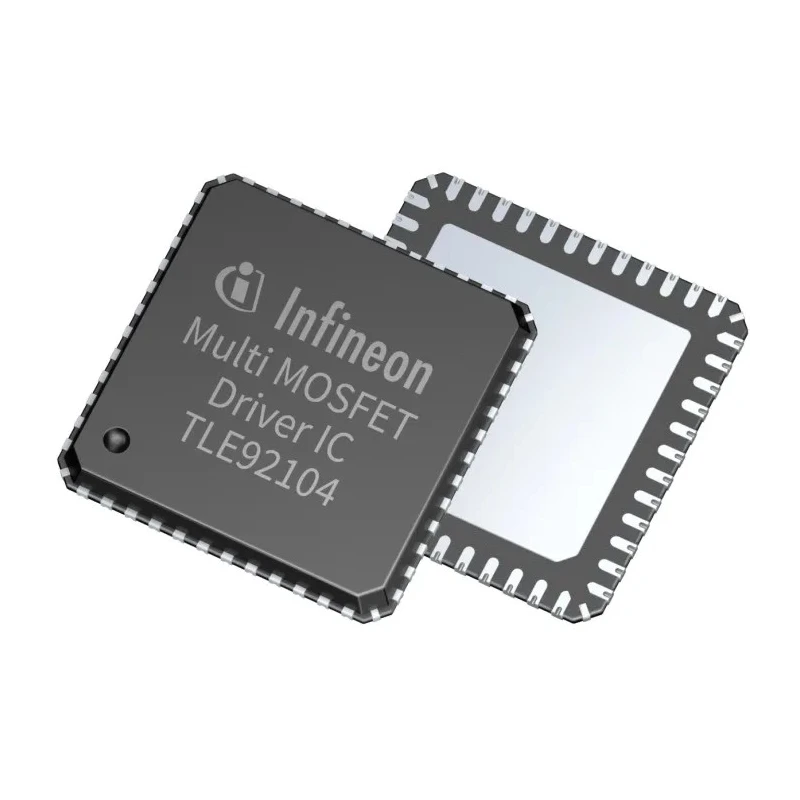

Infineon MOSFET Gate Driver 4-Channel 40V PG-VQFN-48 Surface Mount Automotive AEC-Q100 TLE92104232QXXUMA1

Infineon TLE92104232QXXUMA1 MOSFET Gate Driver 4-Channel 40V PG-VQFN-48 is a robust surface-mounted driver IC designed for precise and reliable MOSFET switching in automotive and industrial voltage-controlled systems. The device integrates four drivers each with their own output channel, enabling efficient multi-channel control at a fixed supply voltage of 40V.

Engineered for high-temperature environments, this gate driver supports operation in an ambient temperature range from -40°C up to 150°C, meeting the demands of harsh automotive conditions. The component is certified to the AEC-Q100 automotive standard, underscoring its reliability and quality for automotive applications.

Its electrical performance is enhanced by fast switching capabilities with 50ns rise and fall times, delivering rapid and controlled signal transitions crucial for efficient power management. The package is a compact 48-pin PG-VQFN, with a low profile of 0.9mm height and 7mm by 7mm footprint, which facilitates dense PCB layout and integration in space-constrained designs.

This MOSFET gate driver is ideally suited for multi-channel motor control modules, automotive power distribution units, and battery management systems. It also supports high-temperature sensor interfaces and is well suited for compact power driver boards utilized in automotive and industrial power management circuits.

This device incorporates four independent MOSFET drivers and four outputs for multi-channel control. Supports a supply voltage of 40V suitable for mid-voltage power distribution. Features fast switching with 50ns rise and fall times for precise signal transitions.

Qualified to AEC-Q100 automotive standard and operates from -40°C to 150°C ambient temperature. Compact surface-mount 48-pin PG-VQFN package with dimensions 7mm x 7mm and height 0.9mm. Optimized for use in motor control modules, battery management systems, and automotive power distribution units.

Compatible with high-temperature sensor interfaces and compact power driver board applications.

This product is part of the MOTIX series and represents a reliable solution for automotive and industrial power management IC applications. It is designed to enable efficient power switching and provides robust thermal and electrical performance.
