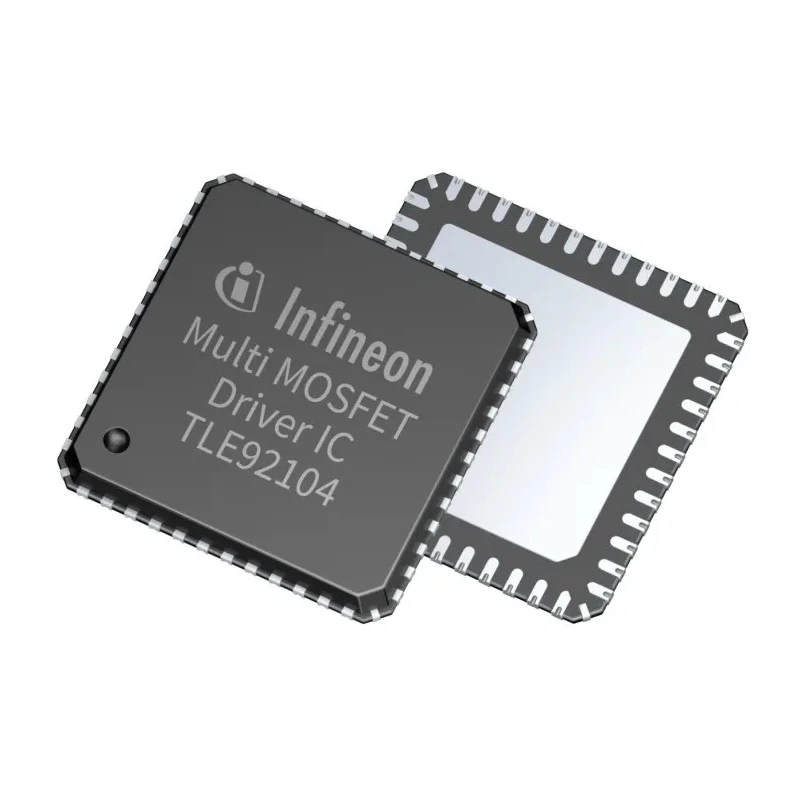

Infineon MOSFET Gate Driver 40V 4-Output 48-Pin Surface Mount PG-VQFN-48 TLE92104131QXXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon MOSFET Gate Driver 40V 4-Output 48-Pin Surface Mount PG-VQFN-48 TLE92104131QXXUMA1

Name: Infineon MOSFET Gate Driver 40V 4-Output 48-Pin Surface Mount PG-VQFN-48 TLE92104131QXXUMA1
Brand: Infineon
SKU: 173375
Price: 2.55 USD
Availability: InStock



Category MOSFET Gate Driver Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	900μm
Length	7mm
Model	TLE92104131QXXUMA1
Width	7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	PG-VQFN-48
Minimum Operating Temperature	-40°C
Number of outputs	4
Rise Time	50ns
Pin Count	48
Automotive Standard	AEC-Q100
Minimum Supply Voltage	40V
Number of Drivers	4
Fall Time	50ns
Driver Type	MOSFET

Key Features

Operates with a supply voltage up to 40V ensuring high voltage tolerance.
Features four half-bridge gate drivers suitable for driving external N-channel MOSFETs.
Supports PWM frequency up to 25kHz for precise control.
Designed for automotive applications compliant with AEC-Q100 standard.
Wide operating temperature range from -40°C to 150°C enables rugged performance.
Compact PQ-VQFN-48 surface mount package measuring 7mm by 7mm.
Fast switching times with 50ns rise and fall times for efficient operation.
Includes a 24-bit serial peripheral interface for communication and control.

Product Description

Infineon TLE92104131QXXUMA1 MOSFET Gate Driver is a high-performance multiple MOSFET driver IC featuring four half-bridge gate drivers designed for external N-channel MOSFETs. Packaged in a compact PG-VQFN-48 surface mount format, the device supports a supply voltage range up to 40 volts and complies with the automotive AEC-Q100 standard, making it ideal for automotive and industrial electronics applications.

It delivers fast switching capabilities with 50ns rise and fall times, suitable for driving MOSFETs at PWM frequencies up to 25 kHz. The gate driver IC operates reliably in harsh environments with an operating temperature range from -40°C to 150°C, ensuring stability across a wide variety of conditions.

The inclusion of a 24-bit Serial Peripheral Interface (SPI) allows for flexible configuration and control within complex semiconductor systems. With a pin count of 48, this chip is compact and fits space-constrained electronics while providing robust power management function for power supply and industrial control circuits.

The PG-VQFN-48 package measures 7mm in length and width, with a height of 900 microns, optimized for surface mount technology. The driver type is MOSFET with four outputs providing efficient and precise driving action.

This MOSFET Gate Driver is extensively used in automotive electronics, power management IC configurations, and embedded systems requiring efficient switching and high voltage tolerance. It provides a reliable solution for industrial, automotive, and consumer electronics where performance and durability are critical.

Operates at supply voltages up to 40 volts with high precision switching. Four half-bridge drivers integrated for multi-channel power control. Compliant with AEC-Q100 automotive grade standards. Compact surface mount PG-VQFN-48 package minimizes PCB footprint.

Supports PWM frequencies up to 25 kHz for versatile industrial applications. Temperature rated from -40°C to 150°C for extreme environment operation. Equipped with 24-bit SPI for advanced interface and configuration. Fast rise and fall times of 50ns enhance switching efficiency.

Perfect for power management in automotive, industrial, and consumer electronics. Helps improve production efficiency with reel packaging suitable for automated insertion. Explore more power management ICs and MOSFET driver solutions in the Electronics & Electricals category at EnvMart.
