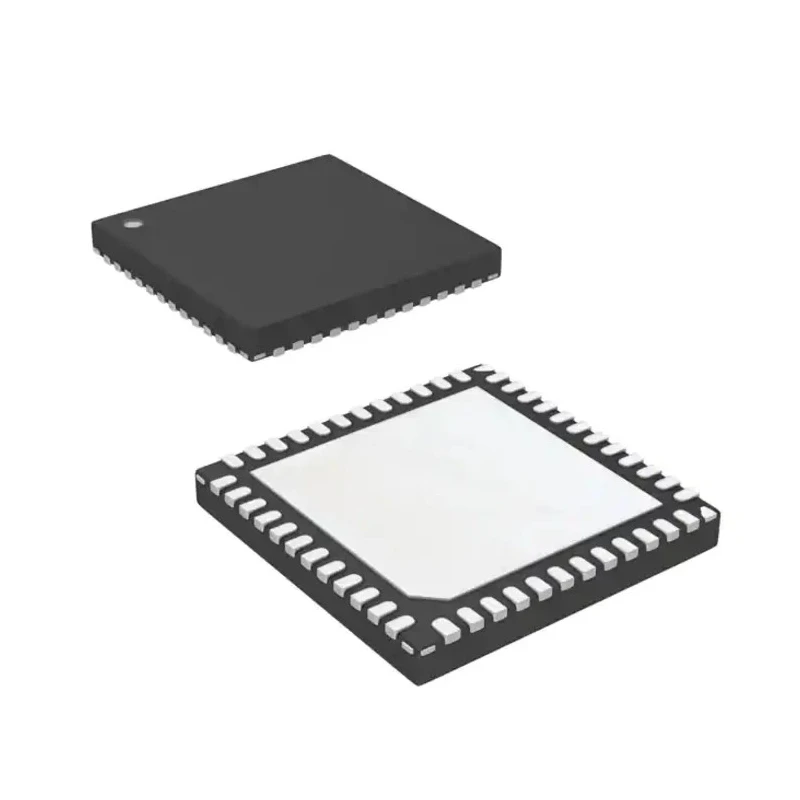

Renesas Electronics USB Controller 1-Channel 12 Mbps 3.3V-3.6V USB 3.0 48-Pin QFN UPD720202K8-701-BAA-A

Renesas Electronics UPD720202K8-701-BAA-A is a high-performance USB controller designed for seamless integration with USB 3.0 and xHCI 1.0 specifications. Operating at a maximum data rate of 12 Mbps with a single transceiver channel, this controller is ideal for mobile computing devices including laptops and notebooks, where reduced power consumption and compact size are critical.

This device operates within a voltage range of 3.3V to 3.6V and is housed in a 48-pin QFN surface mount package, measuring 7mm in length and with a height of 850μm, offering a minimal footprint on circuit boards.

The UPD720202K8-701-BAA-A supports USB debugging capability on all super speed ports, which facilitates efficient software development and troubleshooting. Additionally, it complies with the PCI Express base specification revision 2.0 and supports latency tolerance reporting, enhancing system performance and stability in demanding applications.

The controller is designed to meet the needs of modern industrial and commercial electronic applications, providing robust operation over a temperature range of 0°C to 85°C, making it suitable for varied environments. Despite lacking ESD protection, the device is reliable for integration into devices requiring USB 3.0 connectivity.

Compatible with USB 3.0 and xHCI 1.0 specifications ensuring high-speed data transfer. Low power consumption with a compact 48-pin QFN package for mobile device integration. Supports USB debugging on all super speed ports for enhanced development capabilities.

PCI Express Base Specification Revision 2.0 compliant for enhanced interface reliability. Operating temperature range from 0°C to 85°C suitable for diverse environments. Surface mount type suitable for efficient PCB assembly processes.

Compliant with Express Card standard for extended connectivity options. Designed for USB legacy and super speed functions enhancing compatibility.

This USB controller is optimal for use in industrial, commercial, and laboratory settings where reliable USB 3.0 communication is required. It serves applications in mobile computing, embedded systems, and other electronic devices demanding high-speed USB interfaces.
