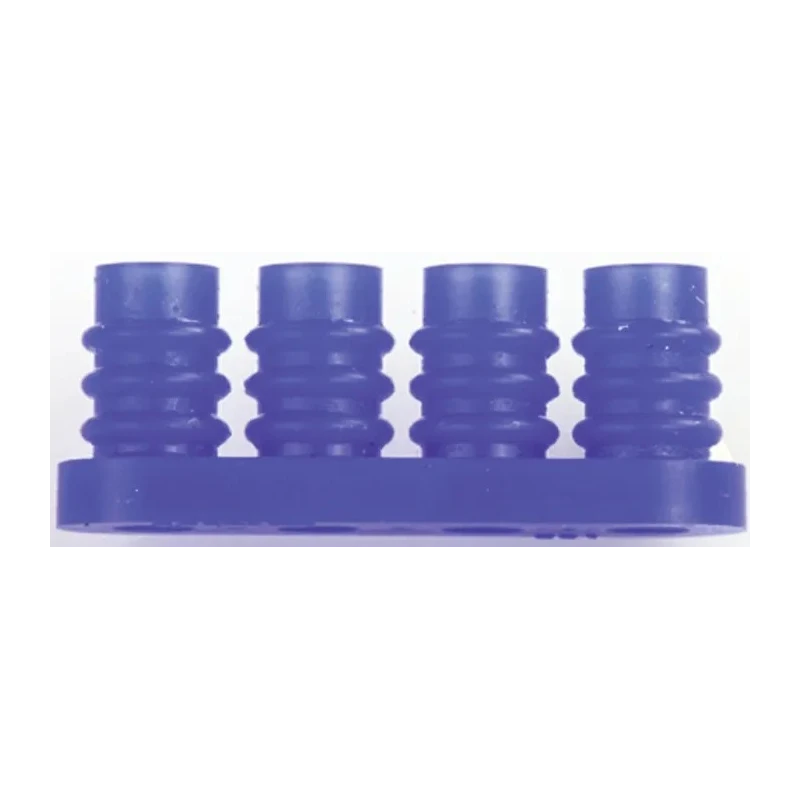

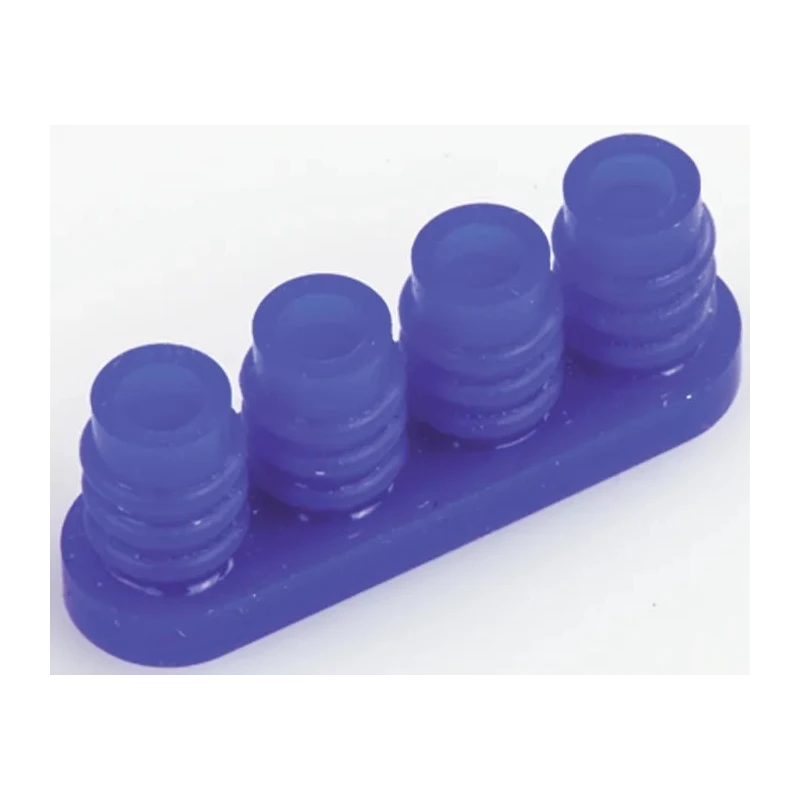

TE Connectivity MATE-N-LOK Series Connector Seal, 16 AWG Min, 24 AWG Max, 10A Current, RoHS Compliant 794274-1

TE Connectivity 794274-1 MATE-N-LOK Series Connector Seal is engineered for wire seals used in universal MATE-N-LOK connectors supporting wire sizes from 16 AWG minimum to 24 AWG maximum and current rating of 10A. It provides effective splash and immersion proof sealing to ensure robust connectivity performance in demanding electronic environments.

The connector seal system requires one interface seal and two wire seals per connector when mating two free hanging connectors, while a closed bottom header is used for wire to board connections. It is designed to work with specific crimp contacts (stock no. 366-4376 and 366-4382) to guarantee mechanical and electrical integrity. These seals come in configurations ranging from 2 to 15 ways, accommodating various wiring harness needs.

The copper alloy pre tin plated contact material enhances durability and corrosion resistance, while multi-metal contact plating including phosphor, gold, bronze, tin, and brass improves electrical performance and longevity. This product operates reliably between -30°C and 105°C, making it suitable for a wide range of industrial and commercial electronic applications.

TE Connectivity's MATE-N-LOK Series Connector Seal is compliant with RoHS environmental directives, ensuring reduced hazardous substances use. Ideal for use in industrial electronics, power connectors, and electrical housings, it supports secure and reliable wire connections in harsh environments.

Ensures splash proof and immersion proof sealing for universal MATE-N-LOK connectors. Requires one interface seal and two wire seals per connector to achieve proper sealing. Compatible with crimp contacts stock numbers 366-4376 or 366-4382.

Supports operating temperature range from -30°C to 105°C. Constructed with copper alloy pre tin plated contact material for durability. Contact plating includes phosphor, gold, bronze, tin, and brass. Available in 2 to 15 way versions to suit various connector configurations.
