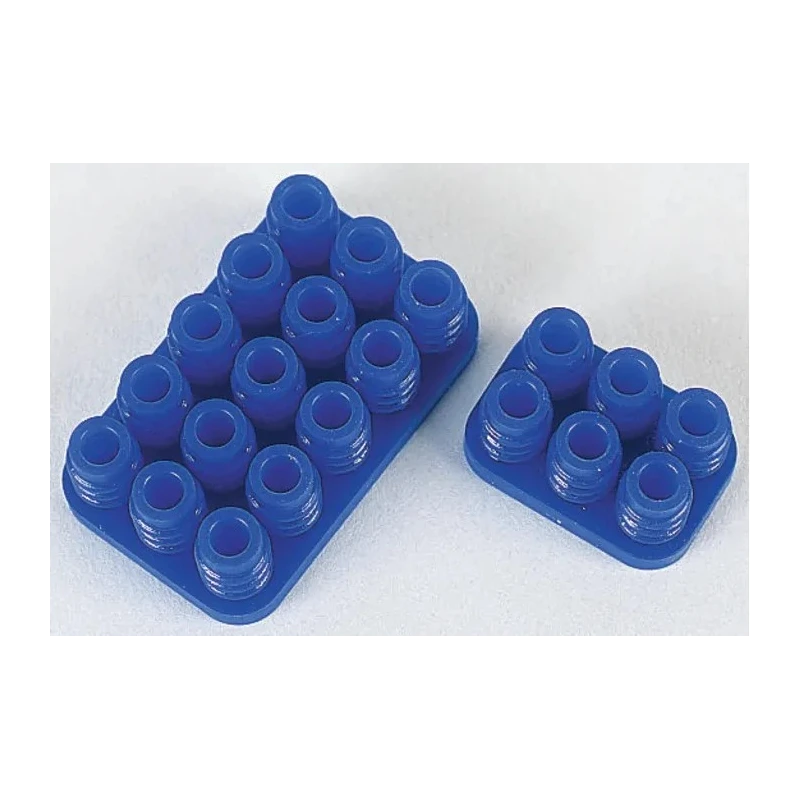

TE Connectivity HDP20 Series Connector Seal Blue, 28 AWG Min Crimp, 18 AWG Max HDP20

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity HDP20 Series Connector Seal Blue, 28 AWG Min Crimp, 18 AWG Max HDP20

Name: TE Connectivity HDP20 Series Connector Seal Blue, 28 AWG Min Crimp, 18 AWG Max HDP20
Brand: TE Connectivity
SKU: 145030
Price: 0.72 USD
Availability: InStock



Category Connector Seal Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Colour	Blue
Current	10A
Model	HDP20
Contact Material	Phosphor Bronze
Series	HDP20
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
For Use With	Plugs accept size 20 DF pin contacts and receptacles accept size 20 DF socket contacts
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	18AWG

Key Features

Compatible with plugs accepting size 20 DF pin contacts and receptacles accepting size 20 DF socket contacts.
Phosphor bronze contact material ensures reliable electrical connectivity.
Rated for 10A current capacity.
Operating temperature range from -30°C to 105°C for versatile use.
Blue color for easy identification and coding.
Termination type is crimp for secure wire connections.
Suitable for use in demanding industrial and electronic assembly applications.

Product Description

TE Connectivity HDP20 Series Connector Seal HDP20 is specifically engineered for use with universal Mate-N-Lok connectors, providing effective splash proof and immersion proof sealing for wire-to-wire and wire-to-board configurations. This blue colored seal fits wire sizes from 28 AWG minimum crimp to 18 AWG maximum crimp and is compatible with plugs that accept size 20 DF pin contacts and receptacles that accept size 20 DF socket contacts.

The contact material used is phosphor bronze, which provides excellent conductivity and mechanical strength needed for reliable electrical connections with a current rating of 10A. Operating effectively within a temperature range of -30°C to 105°C, this Connector Seal is suitable for a wide range of industrial, electronic manufacturing, and automotive applications.

The crimp termination type ensures secure wire attachment, maintaining connector integrity in harsh environments. To achieve complete sealing, one interface seal and two wire seals per connector are recommended. The HDP20 series is part of TE Connectivity's Universal Mate-N-Lok product line, which offers modular and reliable connector solutions for power and signal transmission.

Compatible with plugs accepting size 20 DF pin contacts and receptacles accepting size 20 DF socket contacts. 10A current rating ensures effective electrical load handling. Phosphor bronze contact material for excellent conductivity.

Operating temperature range from -30°C to 105°C. Crimp termination type for secure wire connections. Blue color coding for easy identification. Ideal for industrial, electronic components, power connectors, and automotive applications.

This product is manufactured in China and is supplied as new. It is essential in achieving effective sealing in electrical connectors to prevent ingress of moisture and contaminants, ensuring longevity and performance in demanding environments.
