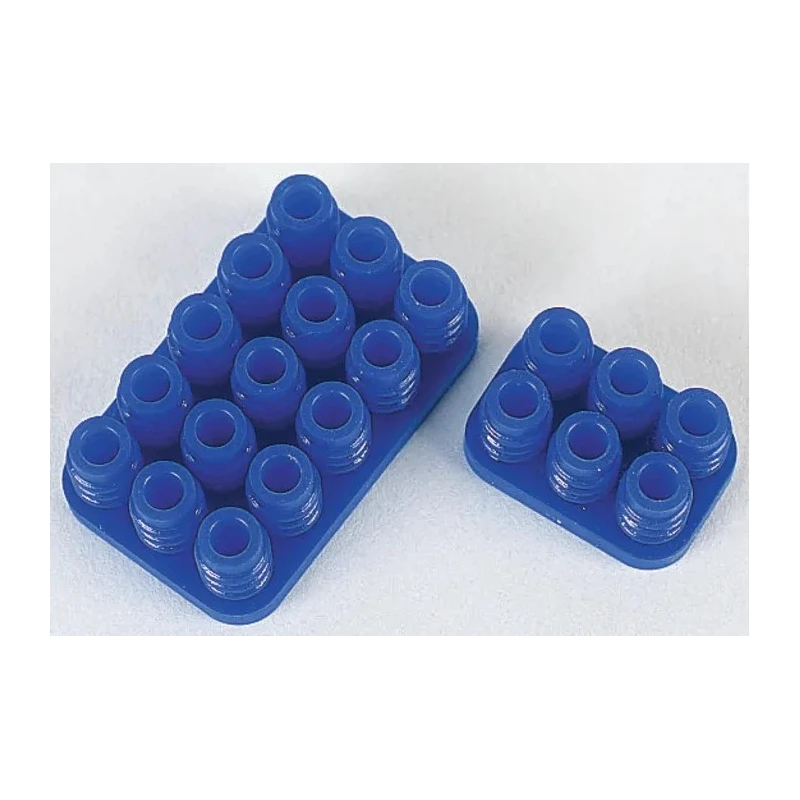

TE Connectivity Series Connector Seal, 10A Current, Blue, Crimp Termination, 28 AWG Min Wire Size, 18 AWG Max Wire Size HDP20

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Series Connector Seal, 10A Current, Blue, Crimp Termination, 28 AWG Min Wire Size, 18 AWG Max Wire Size HDP20

Name: TE Connectivity Series Connector Seal, 10A Current, Blue, Crimp Termination, 28 AWG Min Wire Size, 18 AWG Max Wire Size HDP20
Brand: TE Connectivity
SKU: 119884
Price: 0.85 USD
Availability: InStock



Category Connector Seal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Blue
Current	10A
Model	HDP20
Contact Material	Phosphor Bronze
Series	HDP20
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
For Use With	Plugs accept size 20 DF pin contacts and receptacles accept size 20 DF socket contacts
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	18AWG
TE Connectivity MATE-N-LOK Series Connector Seal, 16 AWG Min, 24 AWG MaxBrand	TE Connectivity

Key Features

Compatible with plugs accepting size 20 DF pin contacts and receptacles accepting size 20 DF socket contacts.
Rated for a current of 10 amperes.
Constructed using durable phosphor bronze contact material.
Operates in temperatures from -30°C up to 105°C.
Blue color for easy identification.
Crimp termination type ensures strong and reliable connections.
Requires one interface seal and two wire seals per connector for effective splash and immersion proofing.
Suitable for electrical and electronic applications where connector sealing is critical.

Product Description

TE Connectivity HDP20 Series Connector Seal is designed to provide robust sealing for universal Mate-N-Lok connectors used in electrical and electronic applications. This seal accommodates wire sizes from 28 AWG minimum to 18 AWG maximum and supports current ratings up to 10 amperes, ensuring effective performance in demanding environments.

The connector seal features phosphor bronze contacts that enhance durability and electrical reliability. Blue in color, the seal uses a crimp termination method, providing strong mechanical and electrical connections. Operating temperature ranges from -30°C to 105°C, allowing use in various industrial and commercial settings.

To achieve effective splash proof and immersion-proof sealing, it is necessary to use one interface seal and two wire seals per connector, particularly for mating two free hanging connectors. For wire to board connections, a closed bottom header is recommended. The product is compatible with plugs accepting size 20 DF pin contacts and receptacles accepting size 20 DF socket contacts.

This connector seal is part of the TE Connectivity Universal Mate-N-Lok range, widely used in industrial, manufacturing, and electrical distribution applications where protected connections are essential.

Compatible with plugs accepting size 20 DF pin contacts and receptacles accepting size 20 DF socket contacts. Rated current of 10A for reliable electrical performance. Phosphor bronze as contact material for enhanced conductivity and durability.

Operating temperature range from -30°C to 105°C ensures suitability for harsh environments. Blue color for easy identification and assembly. Crimp termination type ensures a stable connection. Effective splash and immersion proof when used with required interface and wire seals.

Ideal for industrial, construction, and electronic manufacturing applications. Explore the TE Connectivity range for comprehensive solutions in Connector Seals and electronic components at EnvMart.
