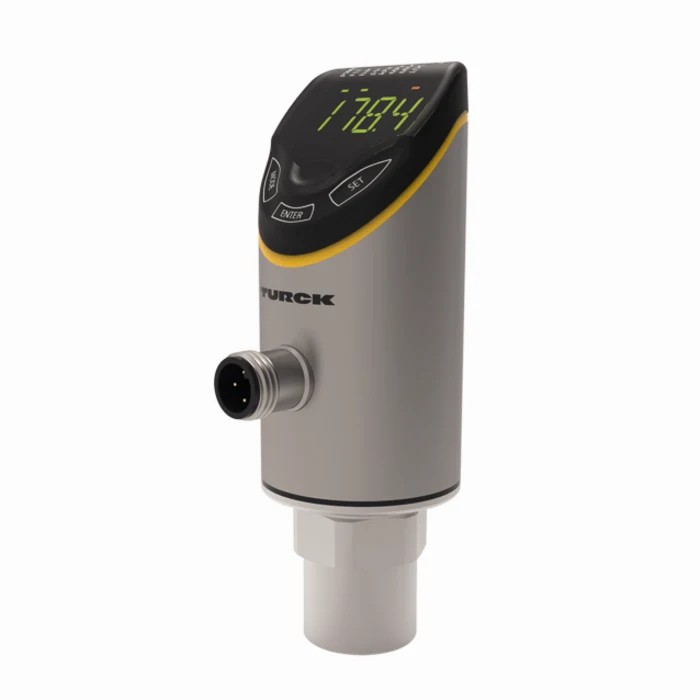

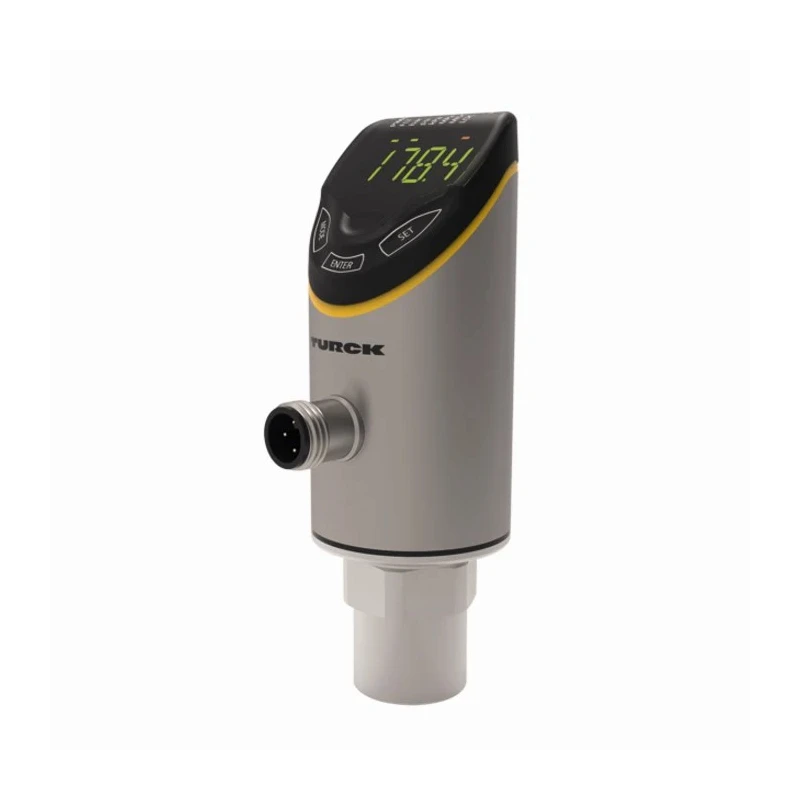

Turck P510 Series Pressure Sensor PNP/NPN Output 0 to 100 bar Relative Reading PS510-100-01-2UPN8-H1141/X
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Turck |
| Response time | 500ms |
| Model | PS510-100-01-2UPN8-H1141/X |
| IP Rating | IP6K6K, IP6K7, IP6K9K |
| Housing Material | Plastic, Polyamide, Stainless Steel |
| Output type | PNP/NPN |
| Series | P510 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| Interface Type | IO-Link |
| Maximum Pressure Measurement | 100bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 33V |
| Minimum Supply Voltage | 18V |
| Pressure Reading Type | Relative |
| Media Measured | Gas |
Key Features
- This sensor has a maximum pressure measurement capability of 100 bar.
- It measures relative pressure with an accuracy of ±0.25%.
- Equipped with PNP/NPN output types and IO-Link interface for advanced communication.
- Robust construction with a metal measuring cell, plastic, polyamide, and stainless steel housing.
- Operates reliably within a temperature range from -30°C to 80°C.
- Features a rotatable 4-digit, two-colored 14-segment display adjustable by 180°.
- Housing is rotatable after plugging the process connection for flexible installation.
- Designed for gas media measurement with fast 500 ms response time.
Product Description
Turck PS510-100-01-2UPN8-H1141/X Pressure Sensor offers reliable relative pressure sensing from 0 to 100 bar with excellent accuracy of ±0.25%. This sensor is specifically designed to measure gas media using a metal measuring cell and peak pressure aperture, enhancing durability and precision.
It features dual PNP/NPN output types, facilitating versatile integration in automation and control systems. The sensor utilizes an IO-Link interface, enabling advanced digital communication and parameterization.
The sensor is built with a robust housing combining plastic, polyamide, and stainless steel materials, providing excellent protection and resistance to harsh industrial environments. It supports operation across a temperature range from -30°C to 80°C, suitable for a wide variety of applications.
A unique feature includes a rotatable 4-digit, two-coloured 14-segment display, which can be rotated 180° and the housing itself is rotatable after plugging the process connection, allowing flexible orientation during installation.
With IP6K6K, IP6K7, and IP6K9K protection ratings, this sensor is resistant to dust ingress, water immersion, and high-pressure cleaning, making it ideal for industrial, laboratory, HVAC, water treatment, manufacturing, and automation control applications.
This sensor has a maximum pressure measurement capability of 100 bar. It measures relative pressure with an accuracy of ±0.25%. Equipped with PNP/NPN output types and IO-Link interface for advanced communication. Robust construction with a metal measuring cell, plastic, polyamide, and stainless steel housing.
Operates reliably within a temperature range from -30°C to 80°C. Features a rotatable 4-digit, two-colored 14-segment display adjustable by 180°. Housing is rotatable after plugging the process connection for flexible installation.
Designed for gas media measurement with fast 500 ms response time. IP ratings IP6K6K, IP6K7, and IP6K9K provide dust, water, and high-pressure wash protection. Complies with multiple standards including EN 61000 series and EN 61326-2-3 for electromagnetic compatibility.
Explore more industrial-grade Pressure Sensors and advanced automation products at EnvMart to find the best solution for your technical and operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure measurement capability of this sensor is 100 bar.
This model has an accuracy of ±0.25%.
It is equipped with both PNP and NPN output types for versatile integration.
The sensor utilizes an IO-Link interface for advanced digital communication and parameterization.
It operates reliably within a temperature range from -30°C to 80°C.
The housing is constructed from plastic, polyamide, and stainless steel, providing robust protection.
The response time of this unit is 500 milliseconds.
It has IP6K6K, IP6K7, and IP6K9K protection ratings, making it resistant to dust and water.
This sensor is specifically designed for measuring gas media.
Yes, it features a rotatable 4-digit, two-colored 14-segment display that can be adjusted by 180°.
It complies with multiple standards including EN 61000 series and EN 61326-2-3 for electromagnetic compatibility.
The minimum supply voltage is 18V, and the maximum supply voltage is 33V.
